Product Specifications
| Manufacturer Part Number | 10309380 |
| Machine Side Connection Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (Decimal Inch) | 0.394" |
| Functional length (Decimal Inch) | 3.354" |
| Usable Length (Decimal Inch) | 1.378" |
| Overall Length (Decimal Inch) | 3.614" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.354" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.360" |
| Tap Chamfer Length (Decimal Inch) | 0.188" |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter Size | MF 10 x 1 |
| Threading Chamfer Length (Decimal Inch) | 0.188" |
| Thread Length (Decimal Inch) | 0.787" |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Connection Size Code | 10.00 x 8.00 |
| Machine Side Connection Size Code | 10.00 x 8.00 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

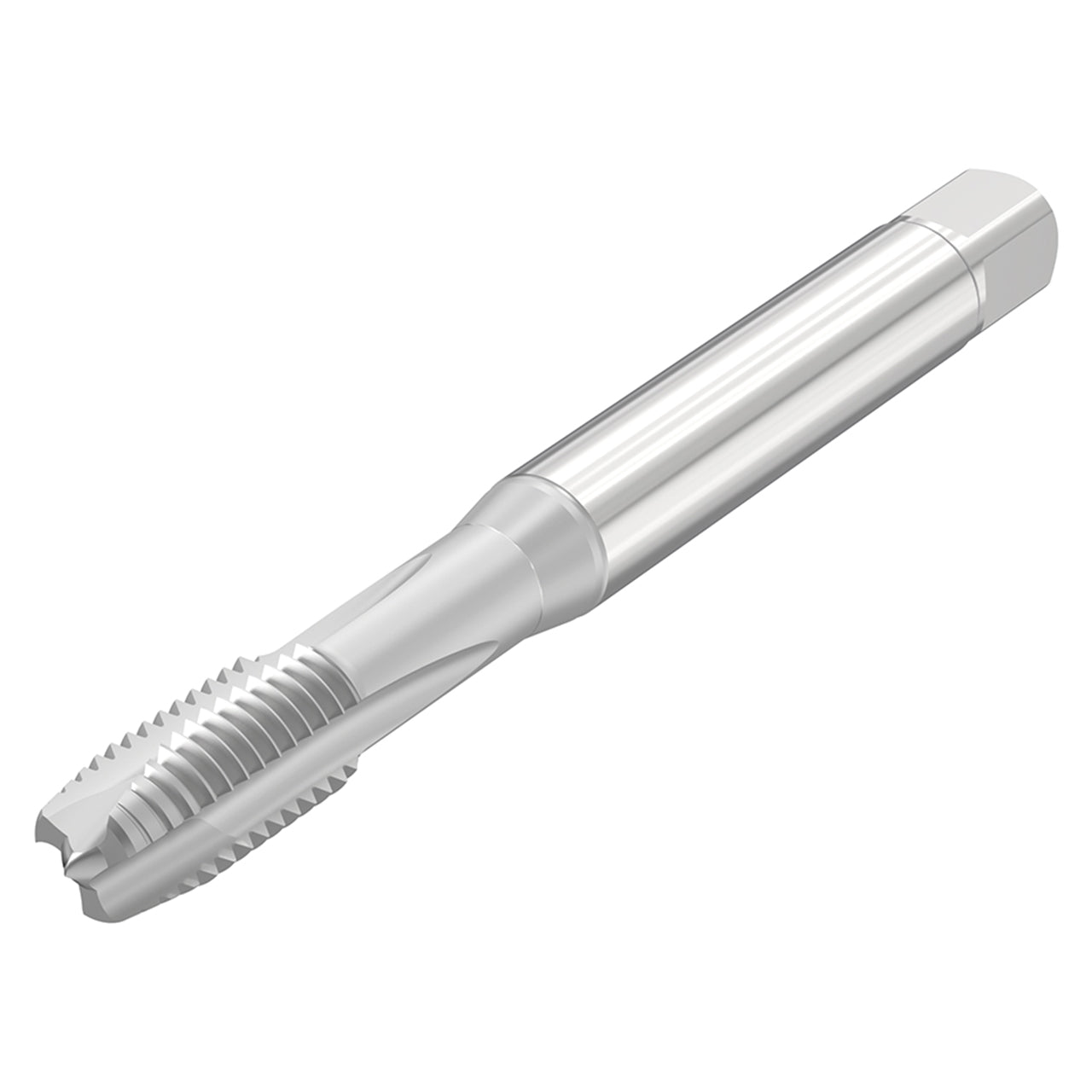

| Product Type | Spiral Point Tap |
