Product Specifications
| Manufacturer Part Number | 10307384 |
| Chamfer Width (Decimal Inch) | 0.004" |
| Cutting Diameter (Decimal Inch) | 0.217" |
| Machine Side Connection Diameter (Decimal Inch) | 0.236" |
| Maximum Body Length (Decimal Inch) | 6.063" |
| Chip Flute Length (Decimal Inch) | 5.945" |
| Shank Length (Decimal Inch) | 1.417" |
| Usable Length (Decimal Inch) | 5.512" |
| Overall Length (Decimal Inch) | 7.480" |
| Minimum Reconditioning Overall Length (Decimal Inch) | 7.362" |
| Grade type | Carbide PVD |
| Peripheral Effective Cutting Edge Count | 2 |
| Shank Type | Cylindrical |
| Reconditionable | Yes |
| Maximum Reconditioning Count | 3 |
| Corner Chamfer Angle (Degree) | 34 Degree |
| Point Angle (Degree) | 136 Degree |
| Coating | PVD |
| Material | Carbide |

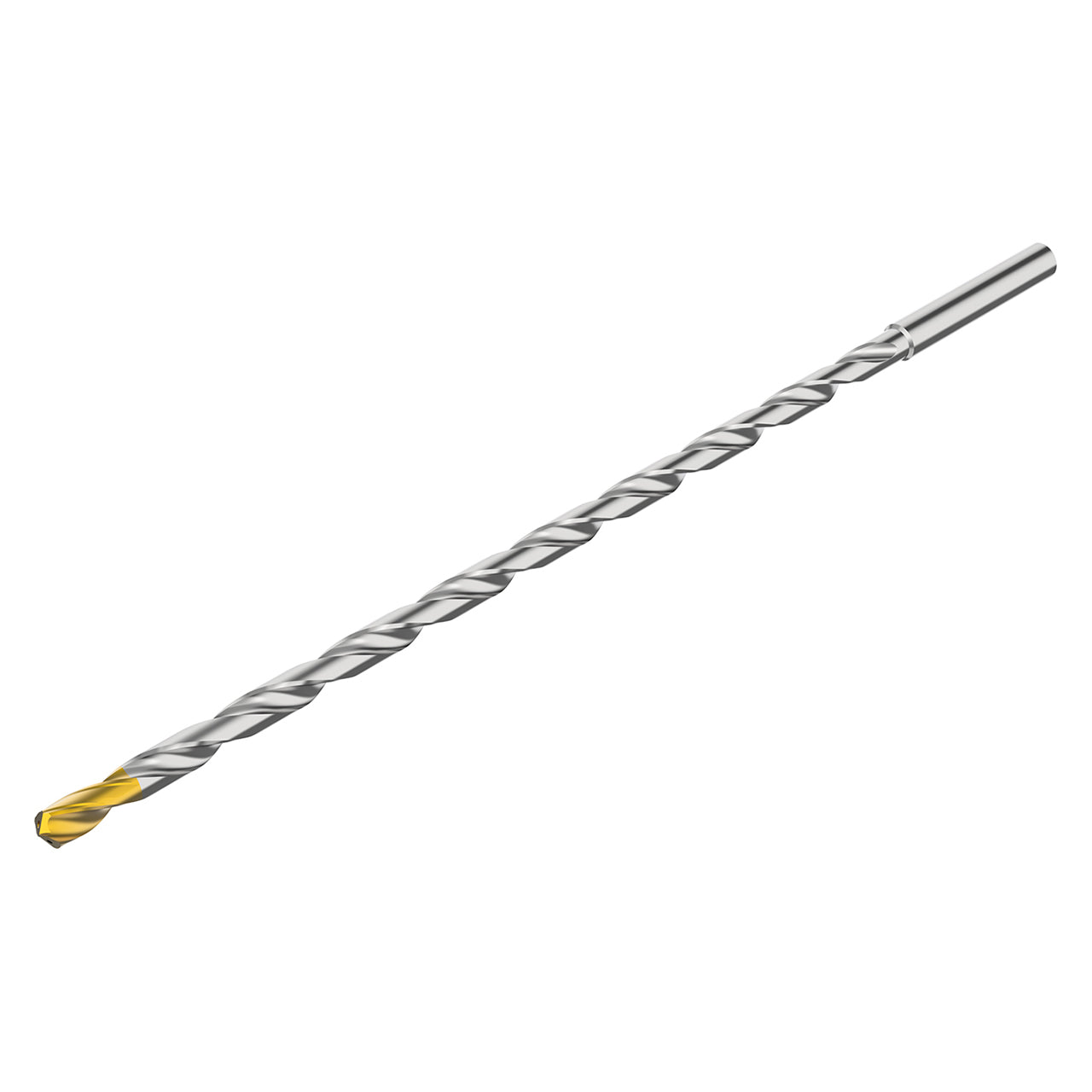

| Product Type | Extra Long Drill Bit |
