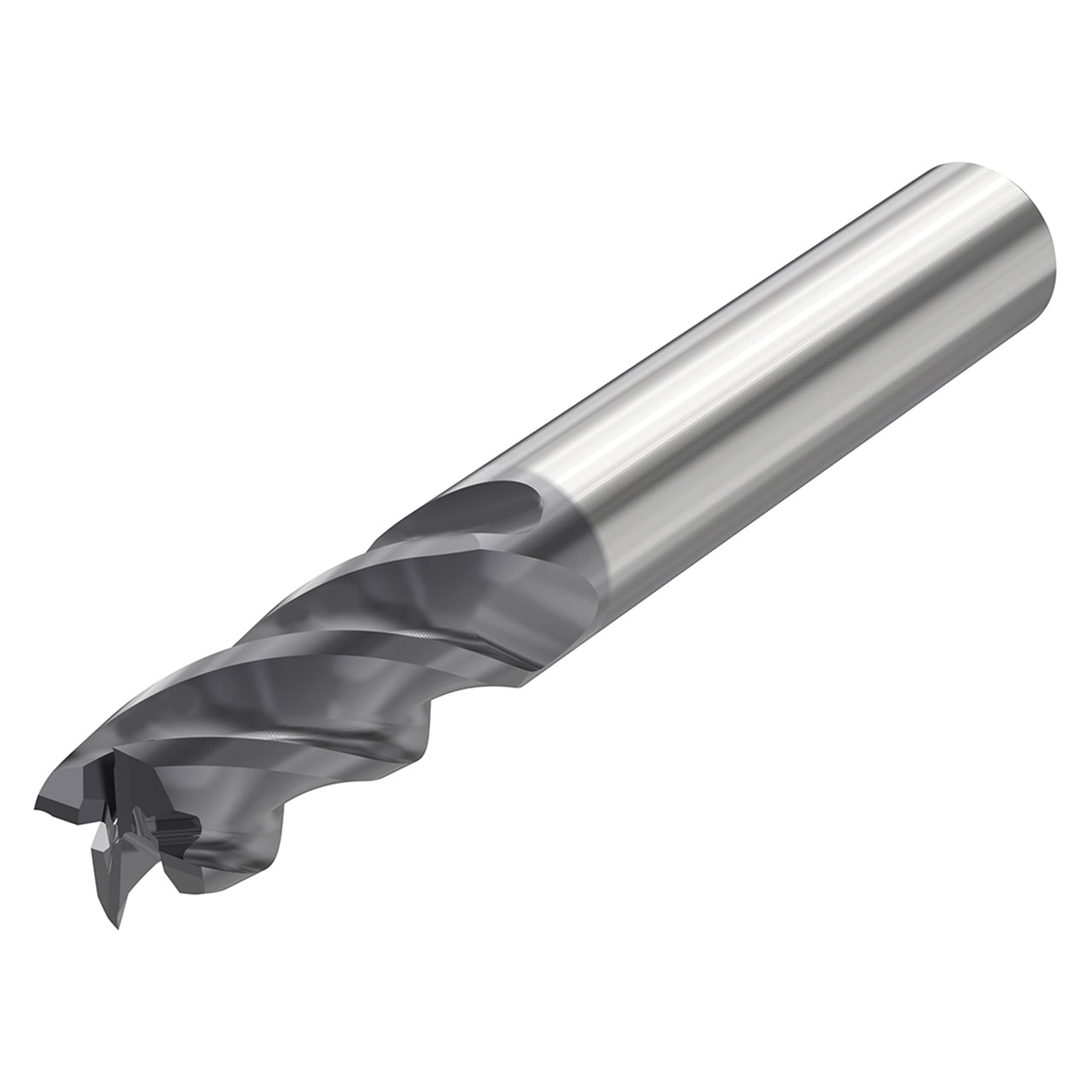

Product Specifications
| Manufacturer Part Number | 10302950 |
| Maximum Depth of cut in Feed Direction Side (mm) | 42.00mm |
| Chamfer Width (mm) | 0.25mm |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Overall Length (mm) | 109.00mm |
| Shank Diameter Tolerance Class | h5 |
| Series | ST5541 |
| Number of Flutes | 4 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Center Cutting | Yes |
| Helix Angle (Degree) | 30 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Coating | SIRON-A |
| Product Type | Corner Chamfer End Mill |
