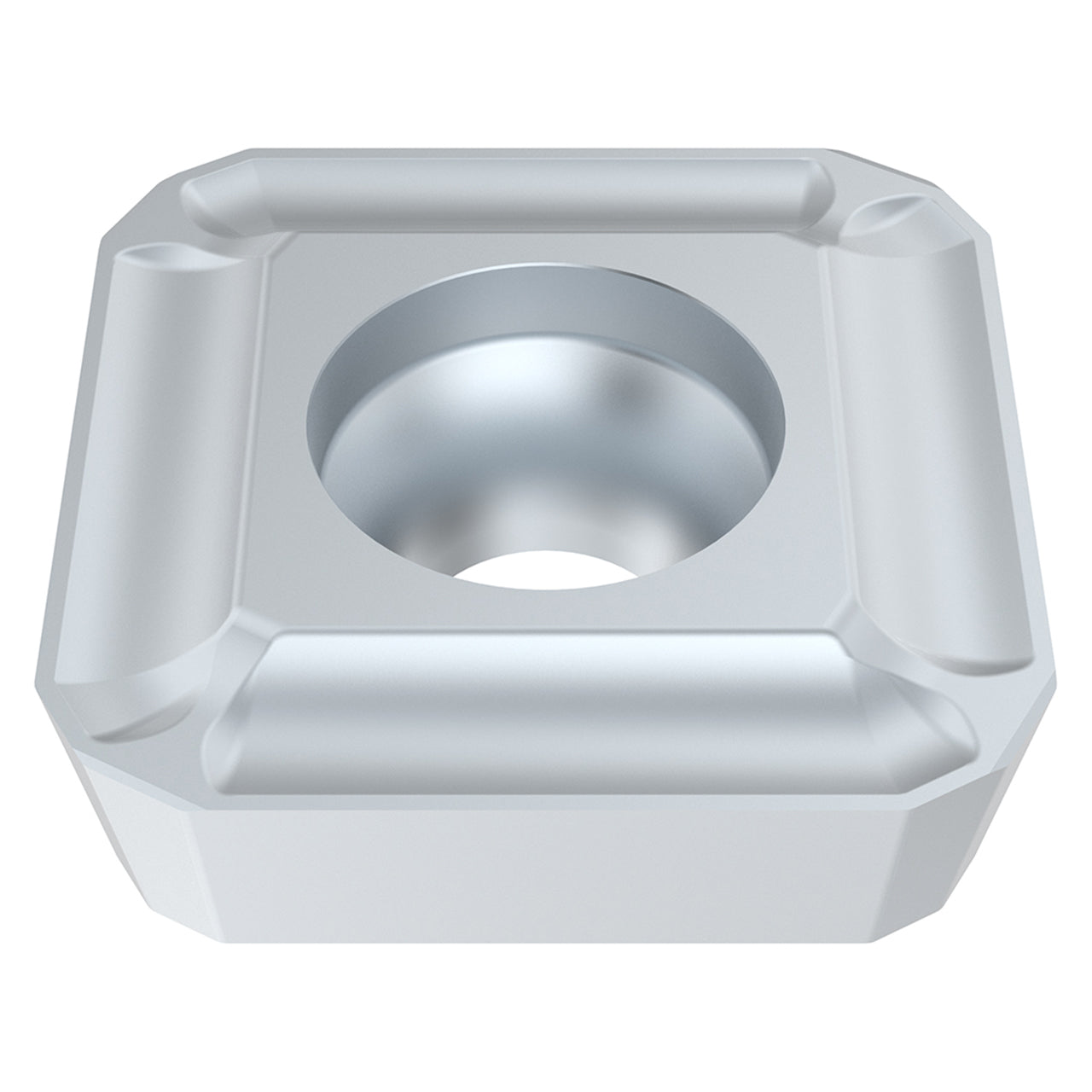

Product Specifications
| Manufacturer Part Number | 10299515 |
| Inscribed Circle Diameter (Decimal Inch) | 0.219" |
| Cutting Edge Length (Decimal Inch) | 0.219" |
| Insert Thickness (Decimal Inch) | 0.094" |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | C1 |
| Grade | DP2501 |
| Grade type | Carbide CVD |
| Insert Seat Size Code | 05 |
| Insert Included Angle (Degree) | 90 Degree |
| Clearance Angle (Degree) | 11 Degree |
| Coating | CVD |
| Material | Carbide |
| Product Type | Indexable Insert Drill |
