Product Specifications
| Manufacturer Part Number | 10296558 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.394" |
| Depth of Key Way (Decimal Inch) | 0.551" |
| Maximum Cutting Depth (Decimal Inch) | 3.520" |
| Cutting Width (Decimal Inch) | 0.789" |
| Minimum Cutting Width (Decimal Inch) | 0.789" |
| Maximum Cutting Width (Decimal Inch) | 0.827" |
| Bolt Circle Diameter (Decimal Inch) | 4.000" |
| Cutting Diameter (Decimal Inch) | 12.197" |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Contact Surface Machine Side Diameter (Decimal Inch) | 5.120" |
| Keyway Width (Decimal Inch) | 1.012" |
| Functional length (Decimal Inch) | 2.060" |
| Maximum Rotational Speed (RPM) | 4100 RPM |
| Cutting Pitch Density | Normal |
| Complete Insert Compatibility | RP..2006 |
| Peripheral Effective Cutting Edge Count | 10 |
| Peripheral Edges in the Tool | 20 |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Axial Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Right Hand |

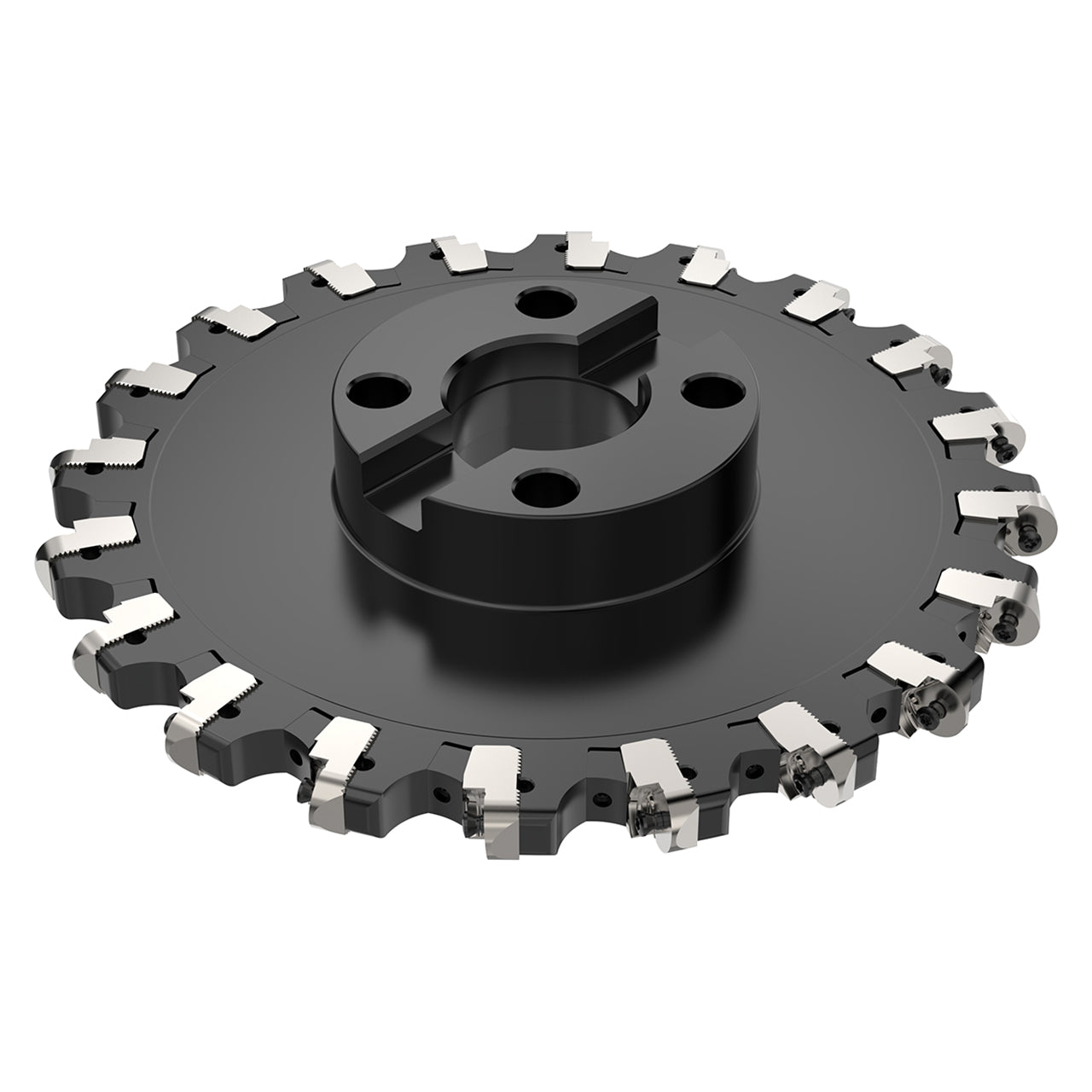

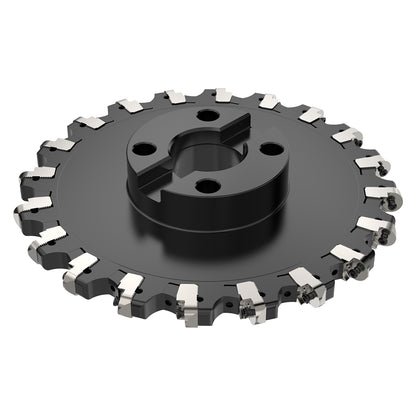

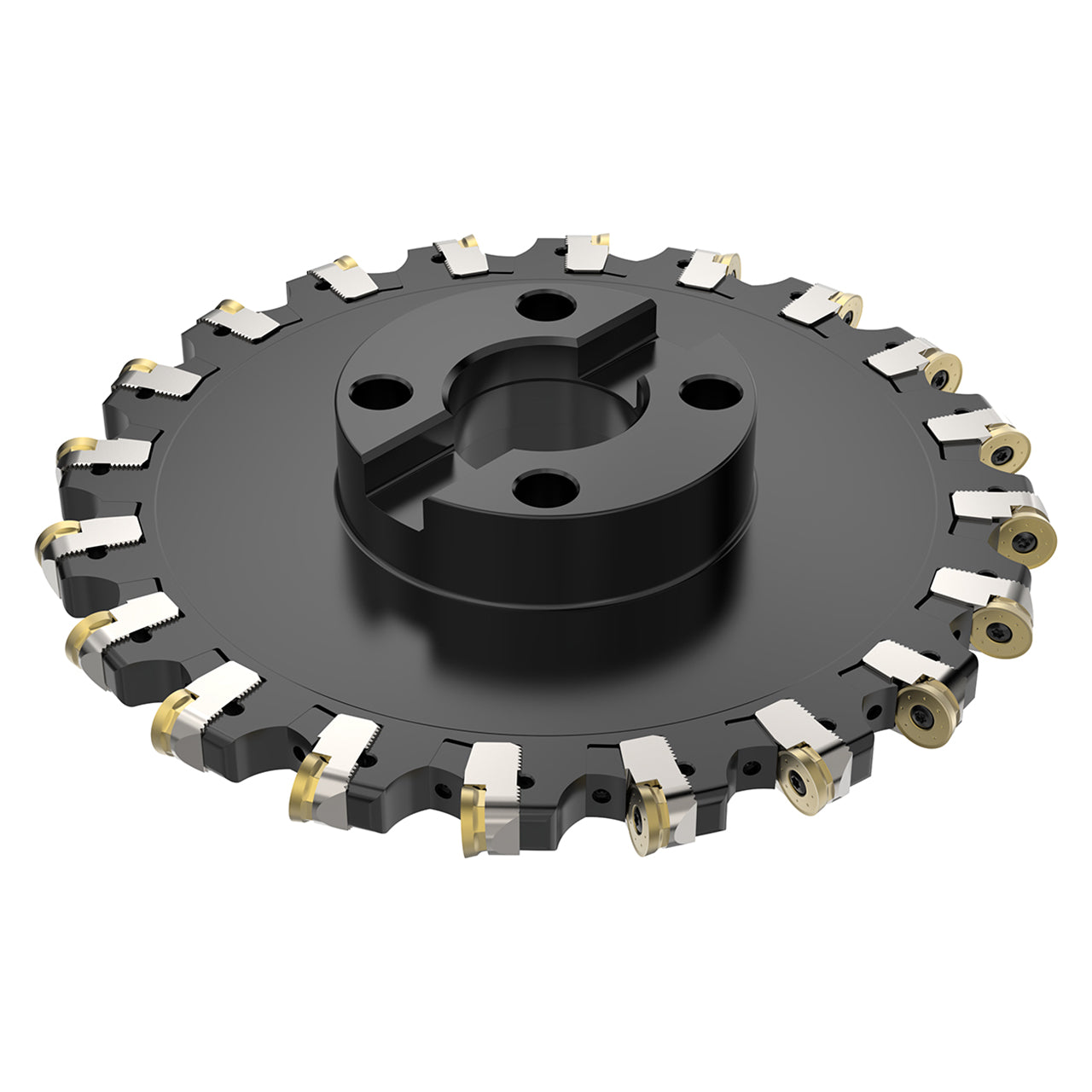

| Product Type | Indexable Slotting Cutter |
