Product Specifications
| Manufacturer Part Number | 10296541 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.394" |
| Maximum Cutting Depth (Decimal Inch) | 3.539" |
| Cutting Diameter (Decimal Inch) | 10.197" |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Contact Surface Machine Side Diameter (Decimal Inch) | 3.000" |
| Keyway Width (Decimal Inch) | 0.500" |
| Functional length (Decimal Inch) | 0.106" |
| Hub Thickness (Decimal Inch) | 1.000" |
| Maximum Rotational Speed (RPM) | 4600 RPM |
| Cutting Pitch Density | Normal |
| Complete Insert Compatibility | RP..2006 |
| Peripheral Effective Cutting Edge Count | 16 |
| Peripheral Edges in the Tool | 16 |
| Shank Type | Arbor hole |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Axial Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Neutral |

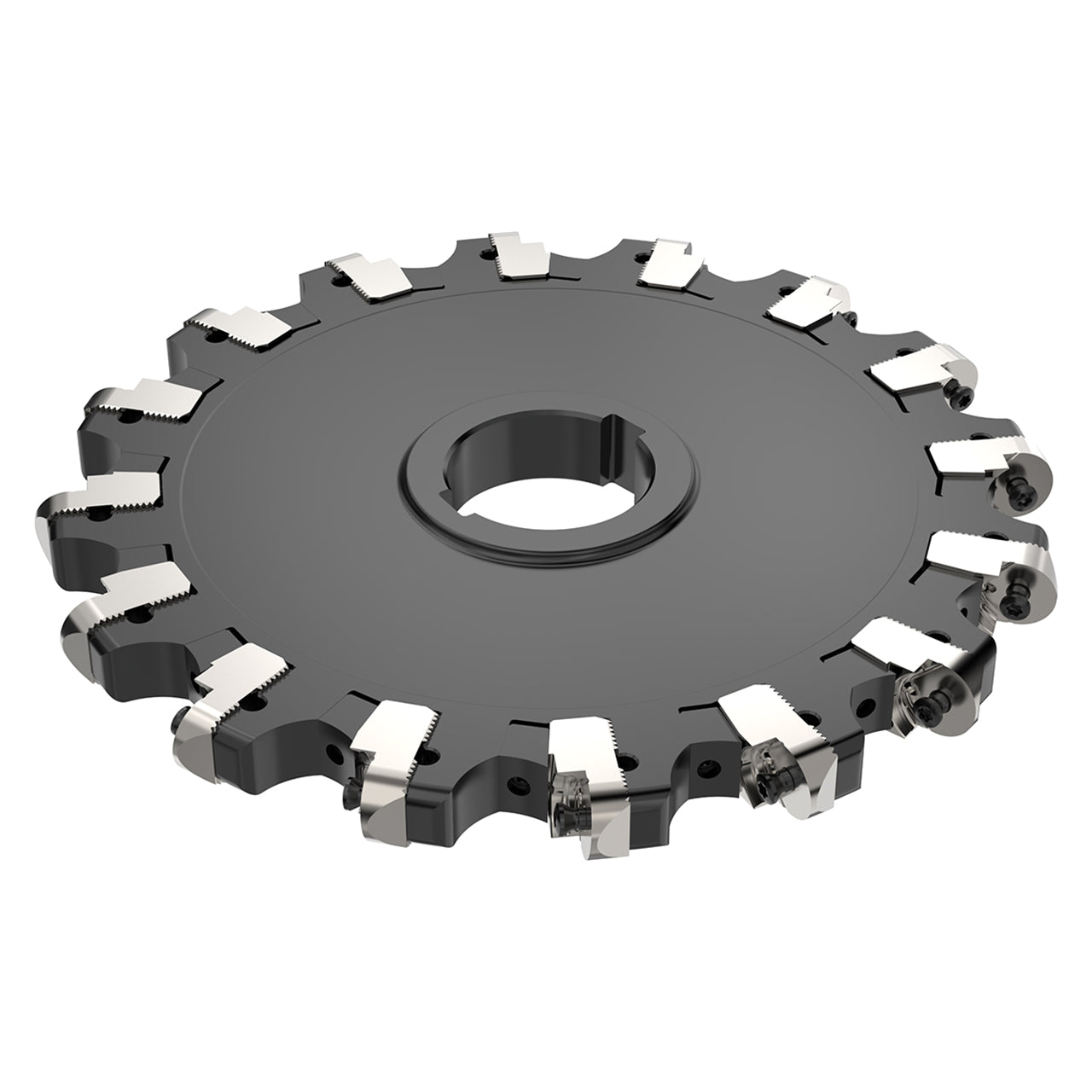

| Product Type | Indexable Slotting Cutter |
