Product Specifications
| Manufacturer Part Number | 10295636 |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 80.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 98.00mm |
| Cutting Diameter (mm) | 30.00mm |
| Machine Side Connection Diameter (mm) | 32.00mm |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Functional length (mm) | 104.00mm |
| Protruding Length (mm) | 78.50mm |
| Shank Length (mm) | 86.50mm |
| Maximum Usable Length (mm) | 78.50mm |
| Overall Length (mm) | 139.50mm |
| Maximum Rotational Speed (RPM) | 7800 RPM |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 3 |
| Shank Type | Weldon |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Axial Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 9.57 Degree |

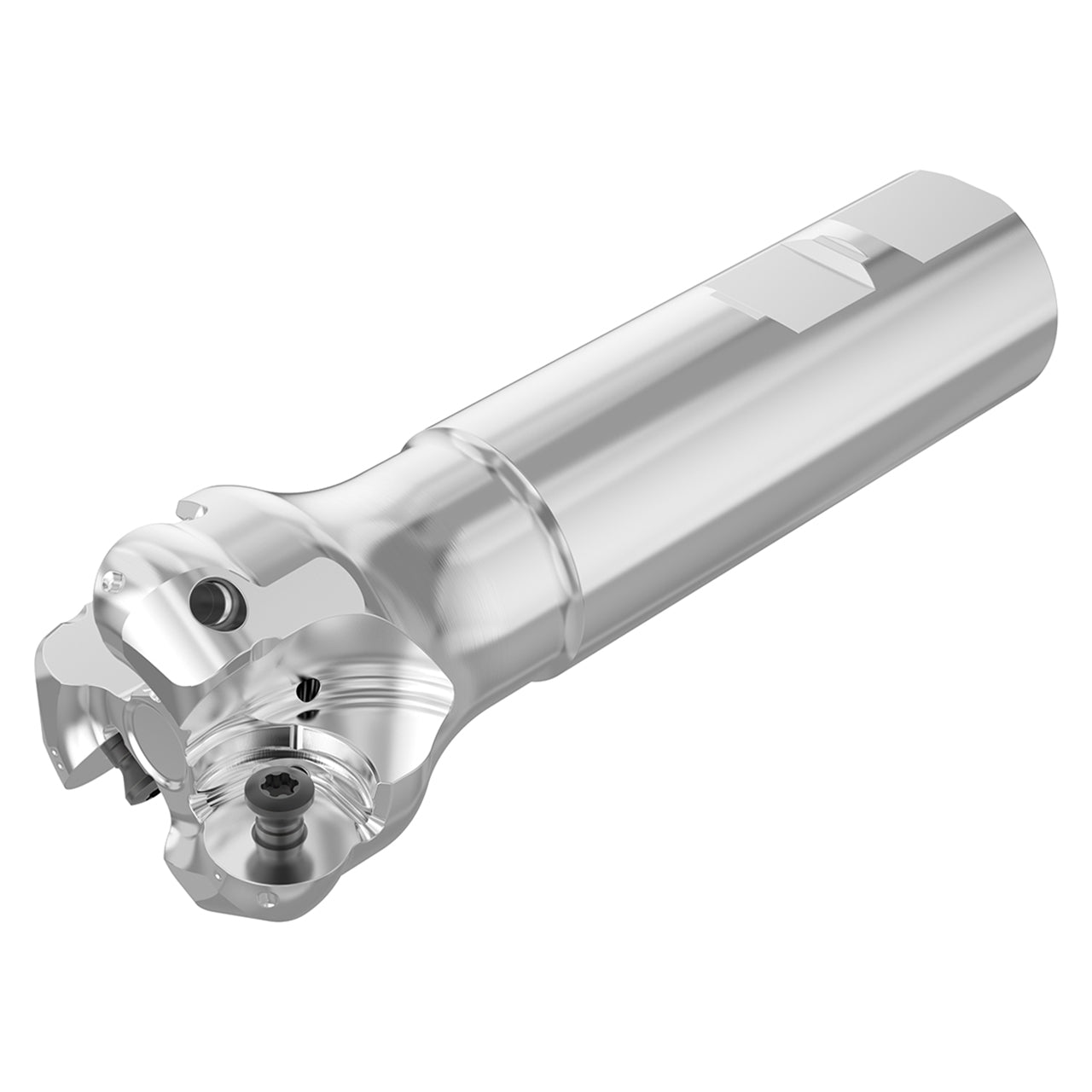

| Product Type | Indexable Copy End Mill |
