Product Specifications
| Manufacturer Part Number | 10287067 |
| Maximum Depth of cut in Feed Direction Side (mm) | 27.00mm |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 11.40mm |
| Neck Length (mm) | 39.00mm |
| Overall Length (mm) | 88.00mm |
| Corner Radius (mm) | 2.00mm |
| Coolant Supply Property | Yes |
| Series | S4651 |
| Number of Flutes | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Shank Type | Weldon |
| Helix Angle (Degree) | 40 Degree |
| Coating | AXT |

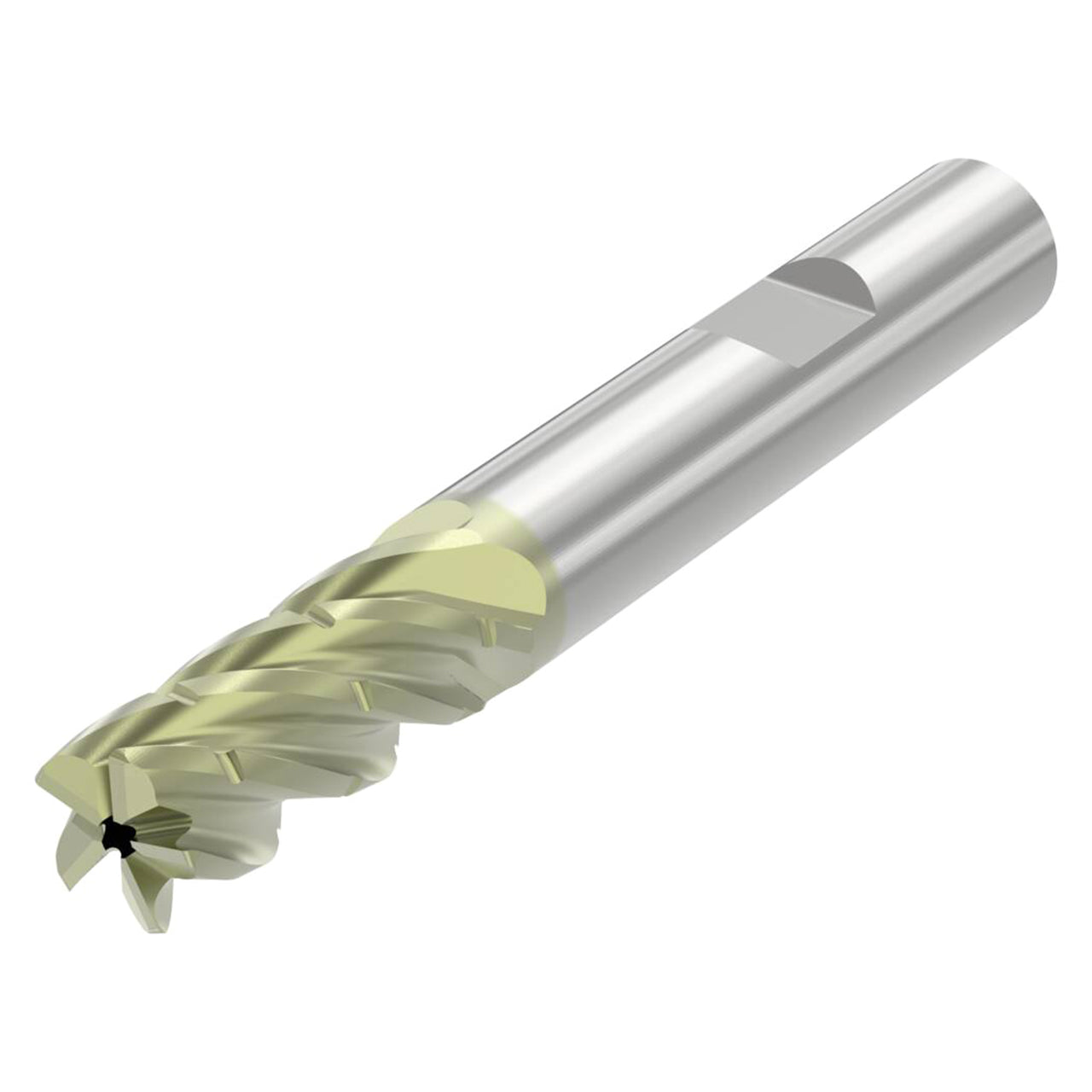

| Product Type | Corner Radius End Mill |
