Product Specifications
| Manufacturer Part Number | 10287044 |
| Maximum Depth of cut in Feed Direction Side (mm) | 16.00mm |
| Cutting Diameter (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 7.60mm |
| Neck Length (mm) | 24.00mm |
| Overall Length (mm) | 63.00mm |
| Corner Radius (mm) | 4.00mm |
| Shank Diameter Tolerance Class | h5 |
| Series | S4321 |
| Number of Flutes | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Shank Type | Weldon |
| Center Cutting | Yes |
| Helix Angle (Degree) | 30 Degree |
| Coating | AXT |

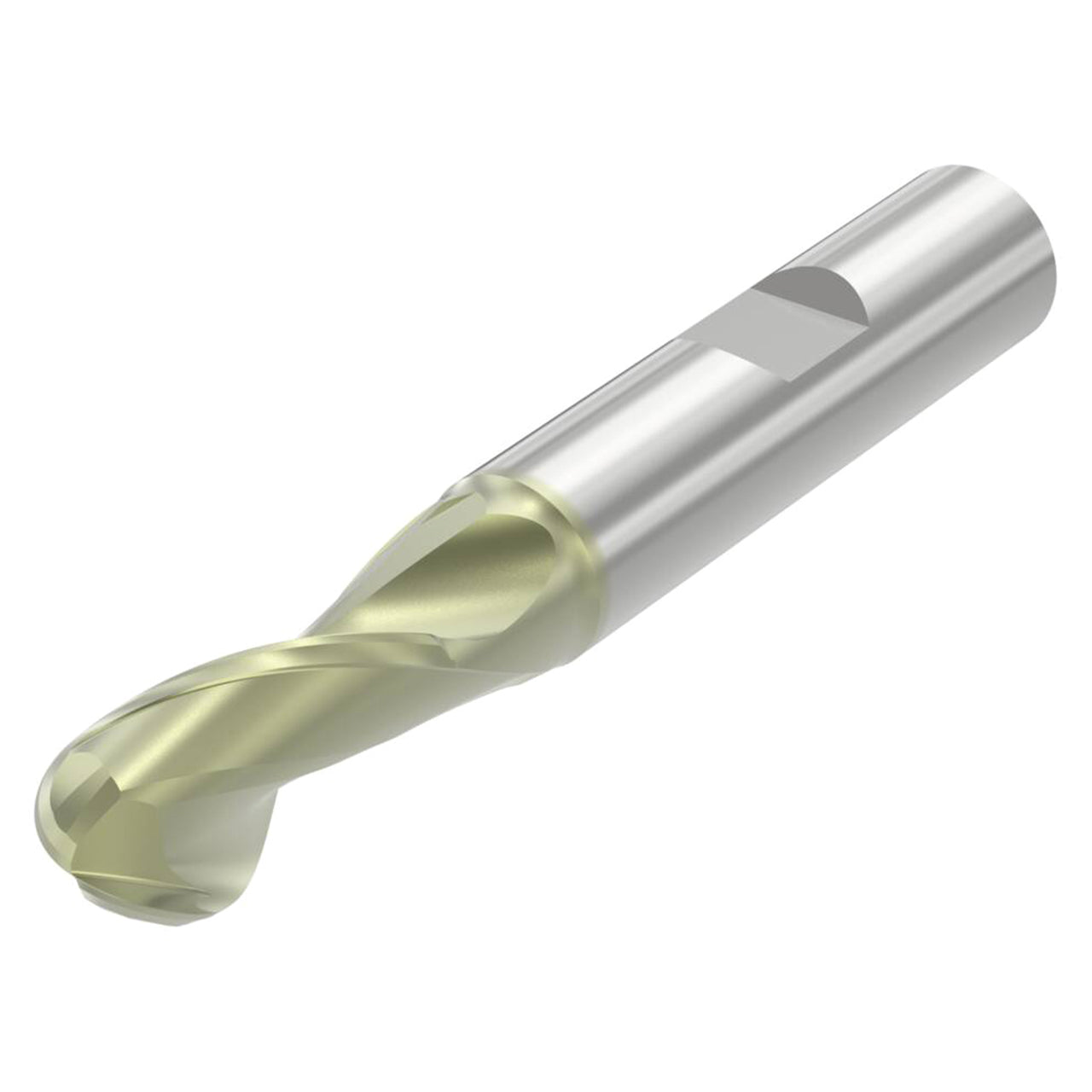

| Product Type | Ball End Mill |
