Product Specifications
| Manufacturer Part Number | 10287043 |
| Maximum Depth of cut in Feed Direction Side (mm) | 12.00mm |
| Cutting Diameter (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 5.70mm |
| Neck Length (mm) | 19.00mm |
| Overall Length (mm) | 57.00mm |
| Corner Radius (mm) | 3.00mm |
| Shank Diameter Tolerance Class | h5 |
| Series | S4321 |
| Number of Flutes | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Shank Type | Weldon |
| Center Cutting | Yes |
| Helix Angle (Degree) | 30 Degree |
| Coating | AXT |

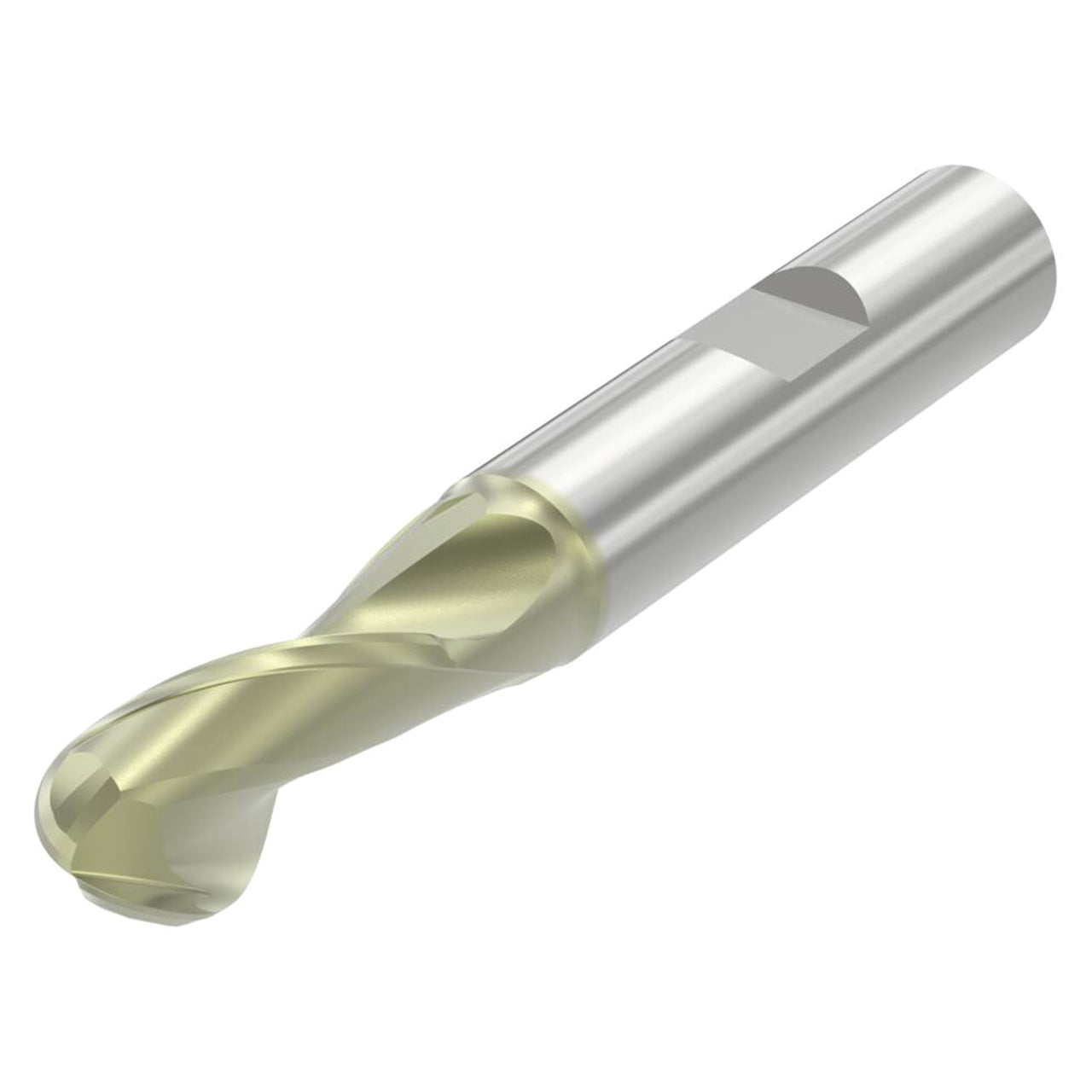

| Product Type | Ball End Mill |
