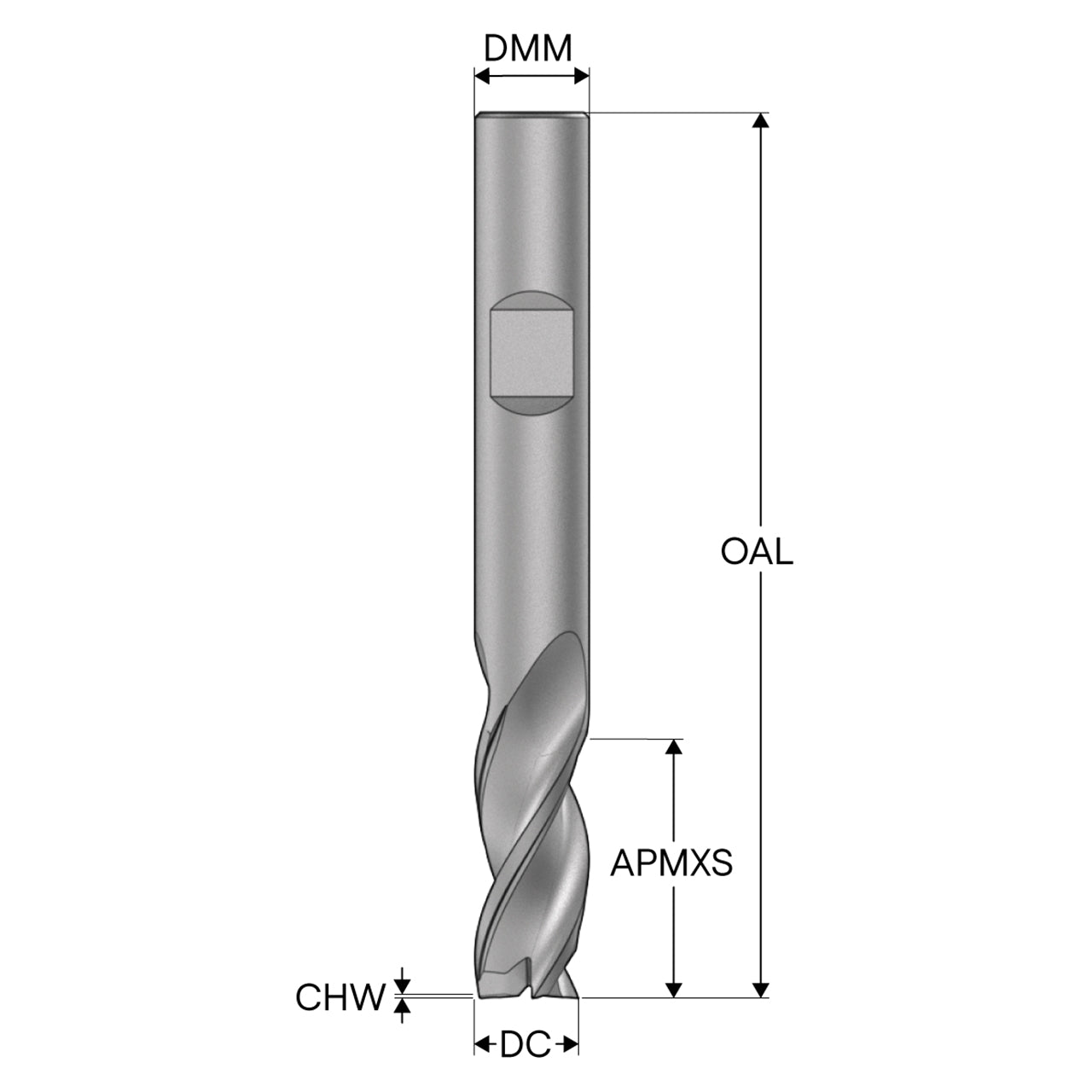

Product Specifications
| Manufacturer Part Number | 10286946 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 12.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | S4531 |
| Corner chamfer width (mm) | 0.10mm |
| Coating | AXT |
| Cutting Diameter (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 35 Degree |
| Corner Chamfer Angle (Degree) | 45.00 Degree |
| Overall Length (mm) | 57.00mm |
| Cutting Edge Count | 3 |
| Shank Type | Weldon |
| Product Series | S4531 |

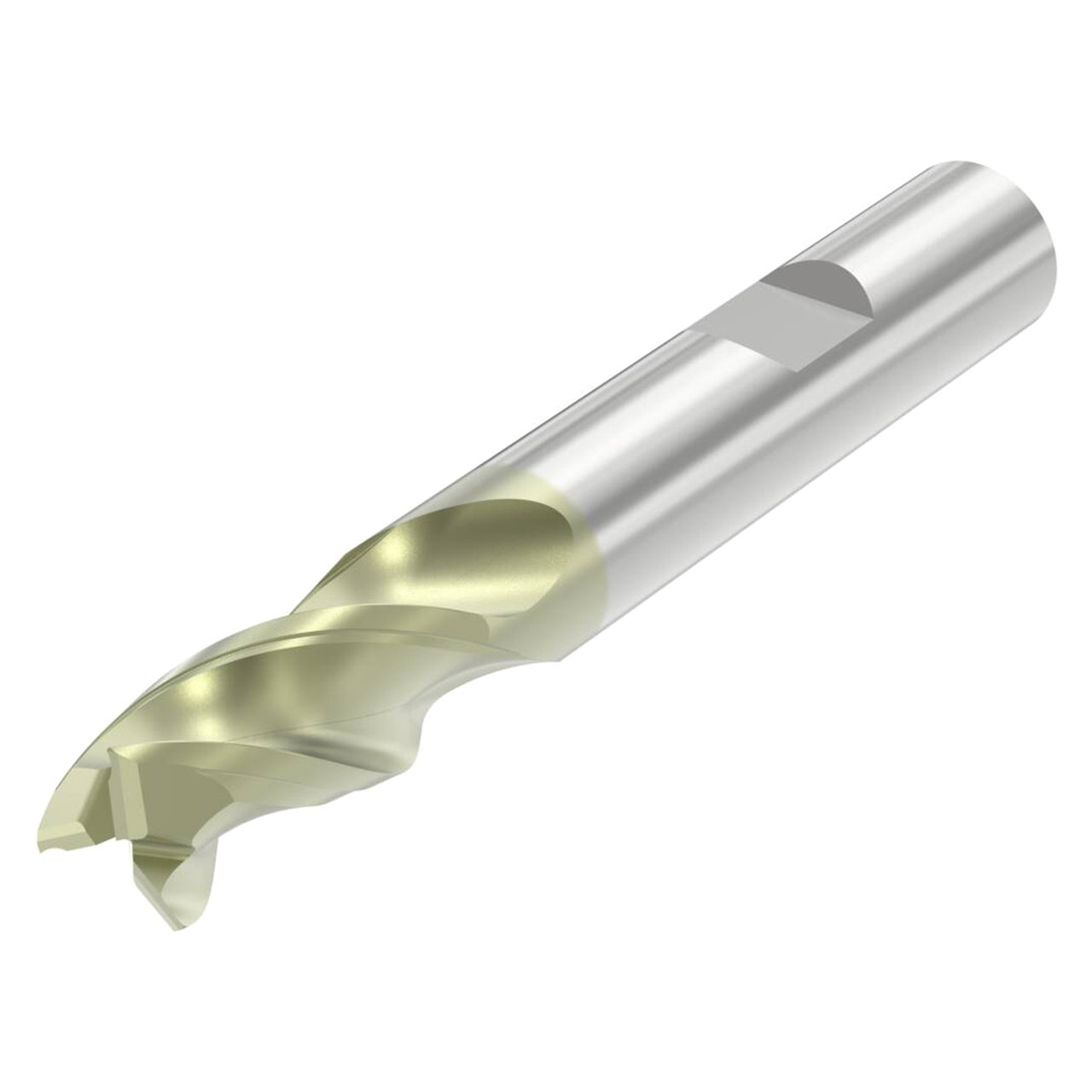

| Product Type | Corner Chamfer End Mill |
