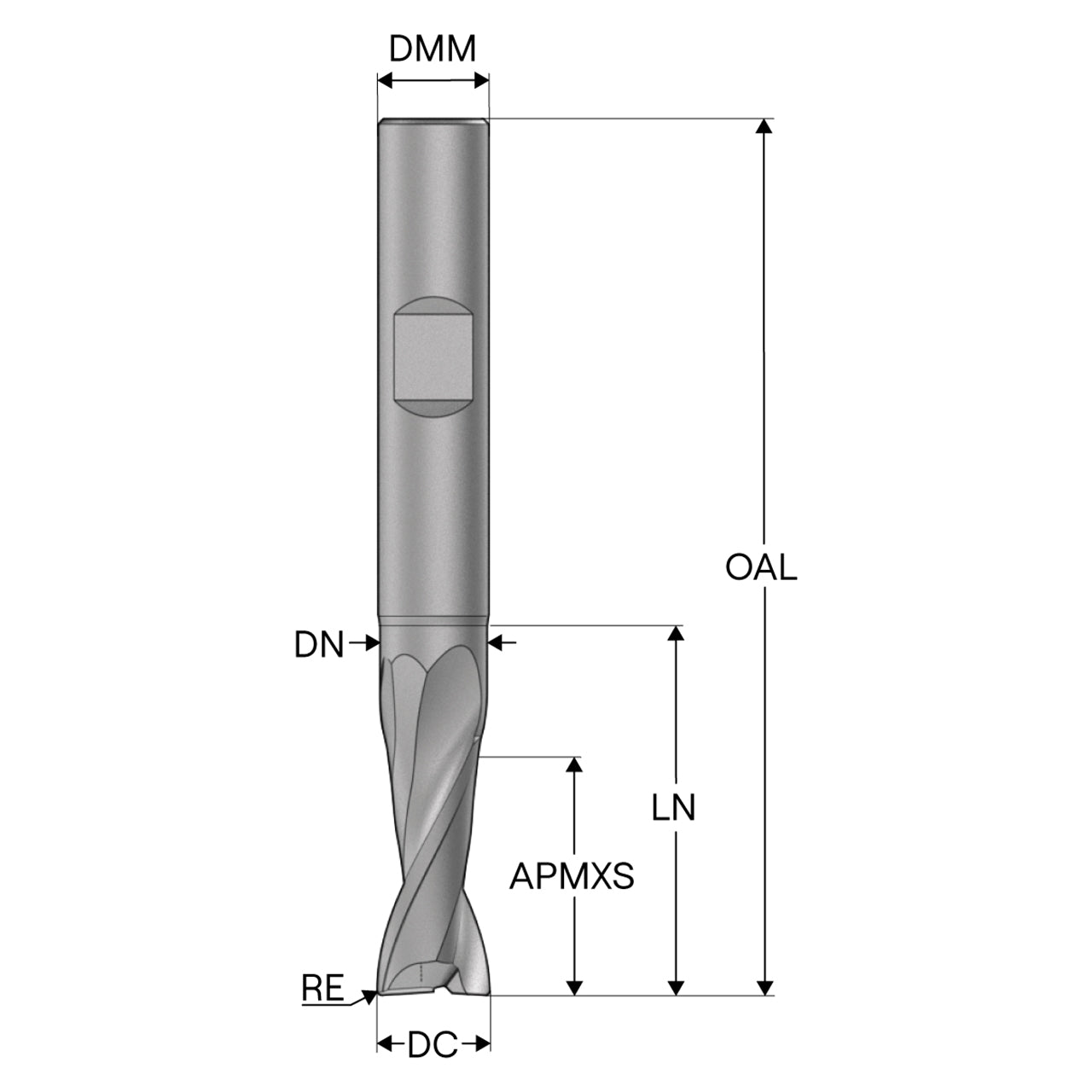

Product Specifications
| Manufacturer Part Number | 10286913 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 16.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | S4521 |
| Coating | AXT |
| Cutting Diameter (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 7.60mm |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (mm) | 24.00mm |
| Overall Length (mm) | 63.00mm |
| Cutting Edge Count | 2 |
| Corner Radius (mm) | 1.00mm |
| Shank Type | Weldon |
| Product Series | S4521 |

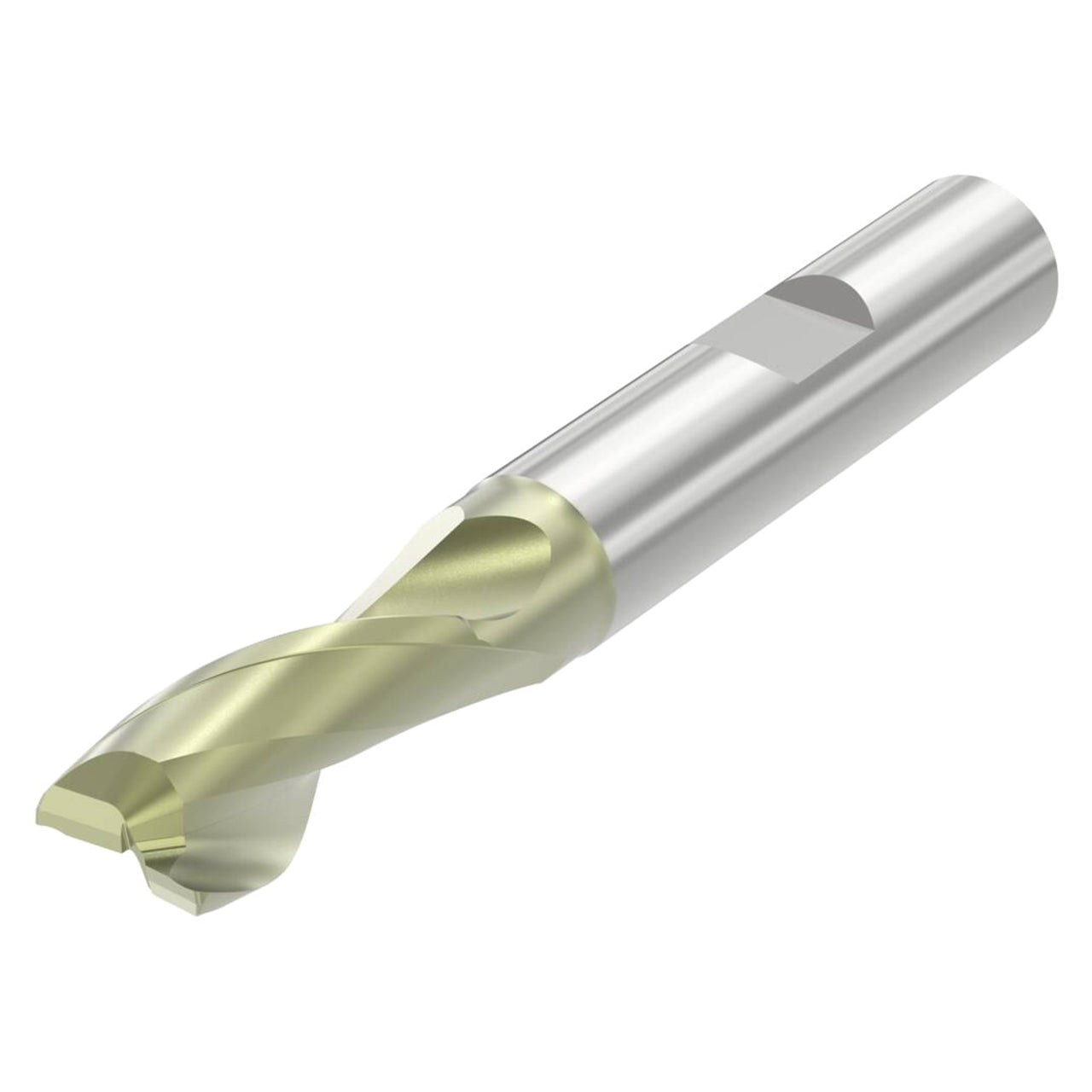

| Product Type | Corner Radius End Mill |
