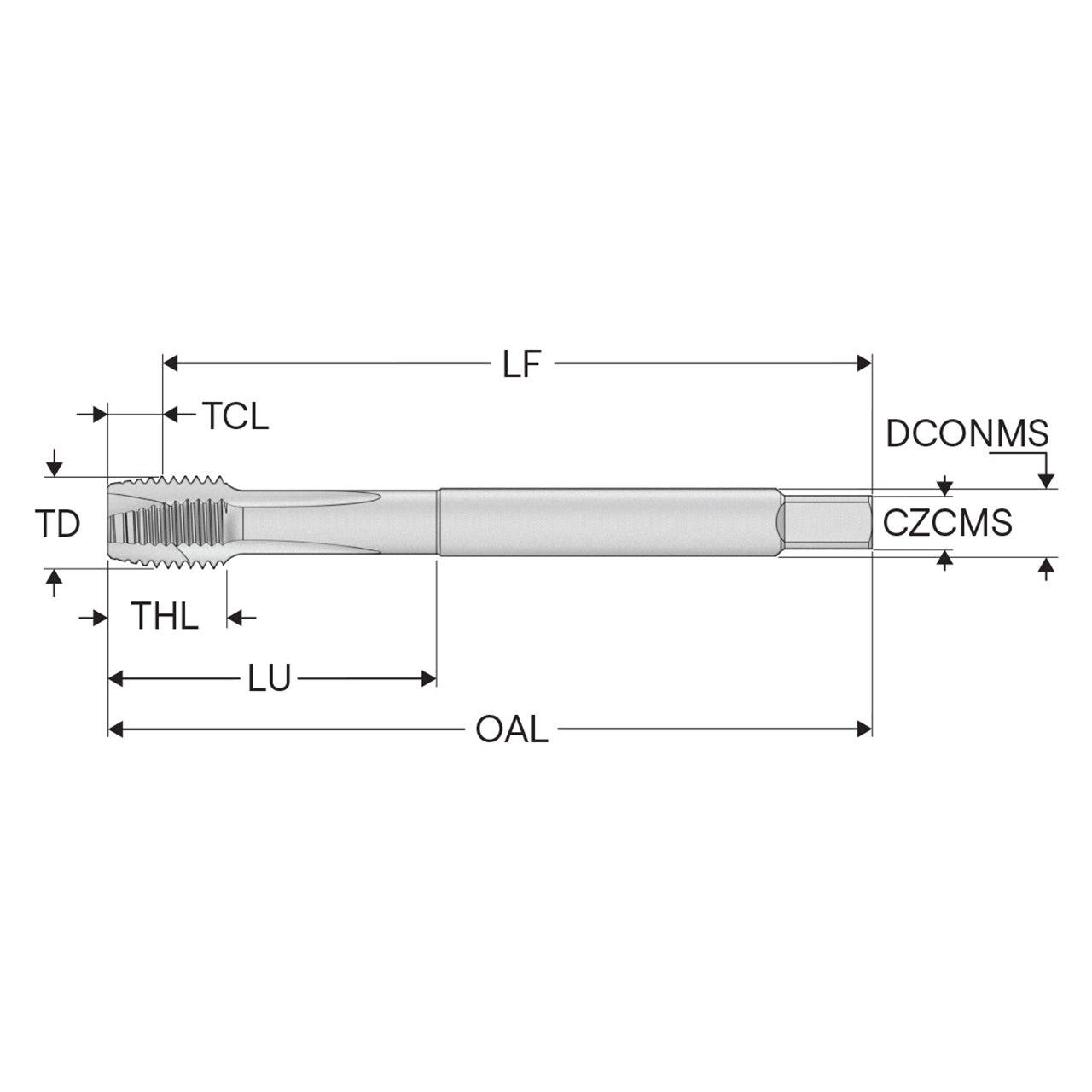

Product Specifications
| Manufacturer Part Number | 10280487 |
| Coating | TiAIN+WC/C |
| Connection Diameter Machine Side (Decimal Inch) | 0.760" |
| Shank Diameter (Decimal Inch) | 0.760" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 5.755" |
| Usable Length (Decimal Inch) | 3.817" |
| Material | HSS-E-PM |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 6.299" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.827" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.536" |
| Thread Diameter (Decimal Inch) | 0.945" |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Length (Decimal Inch) | 0.536" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 1.181" |
| Product Series | T34 |

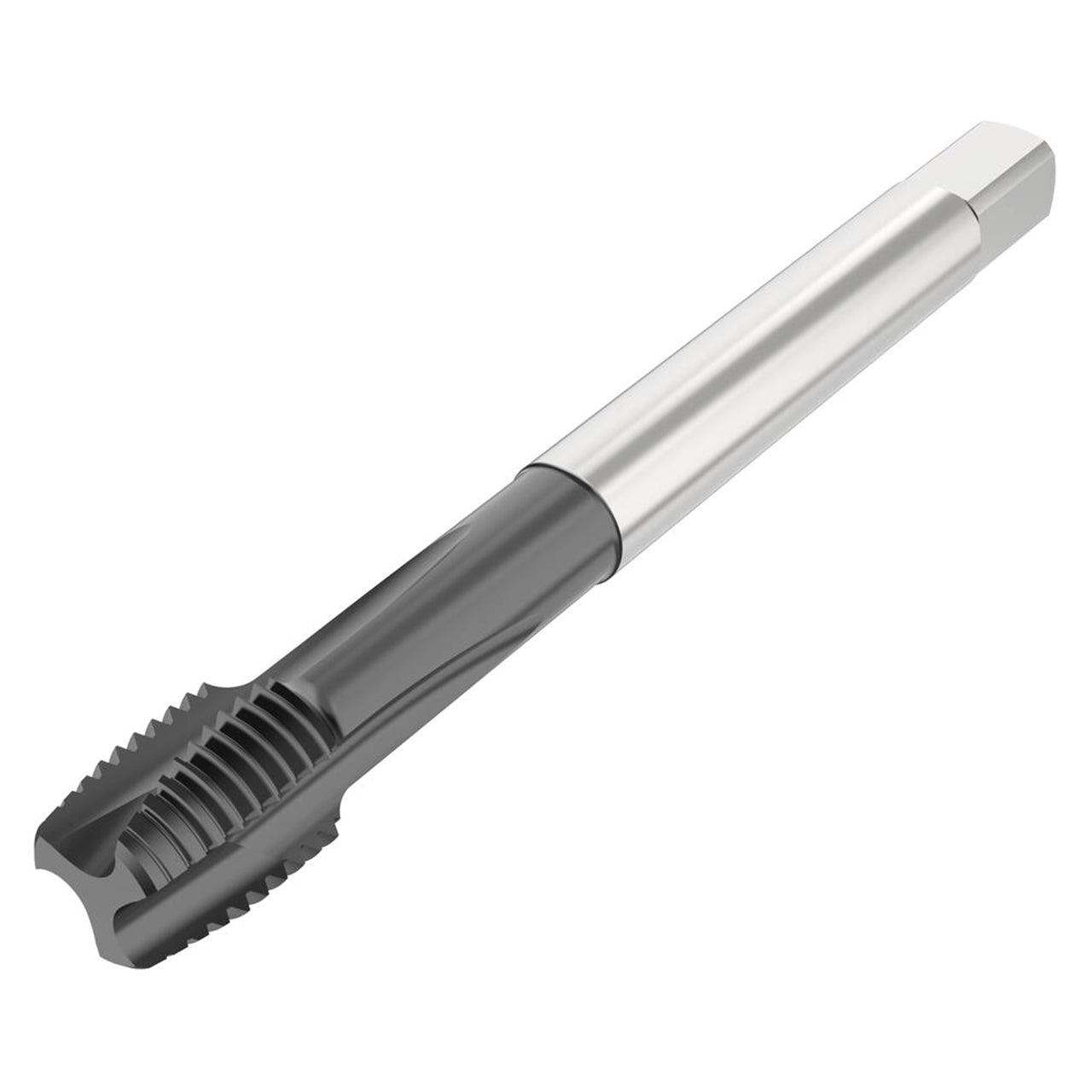

| Product Type | Spiral Point Tap |
