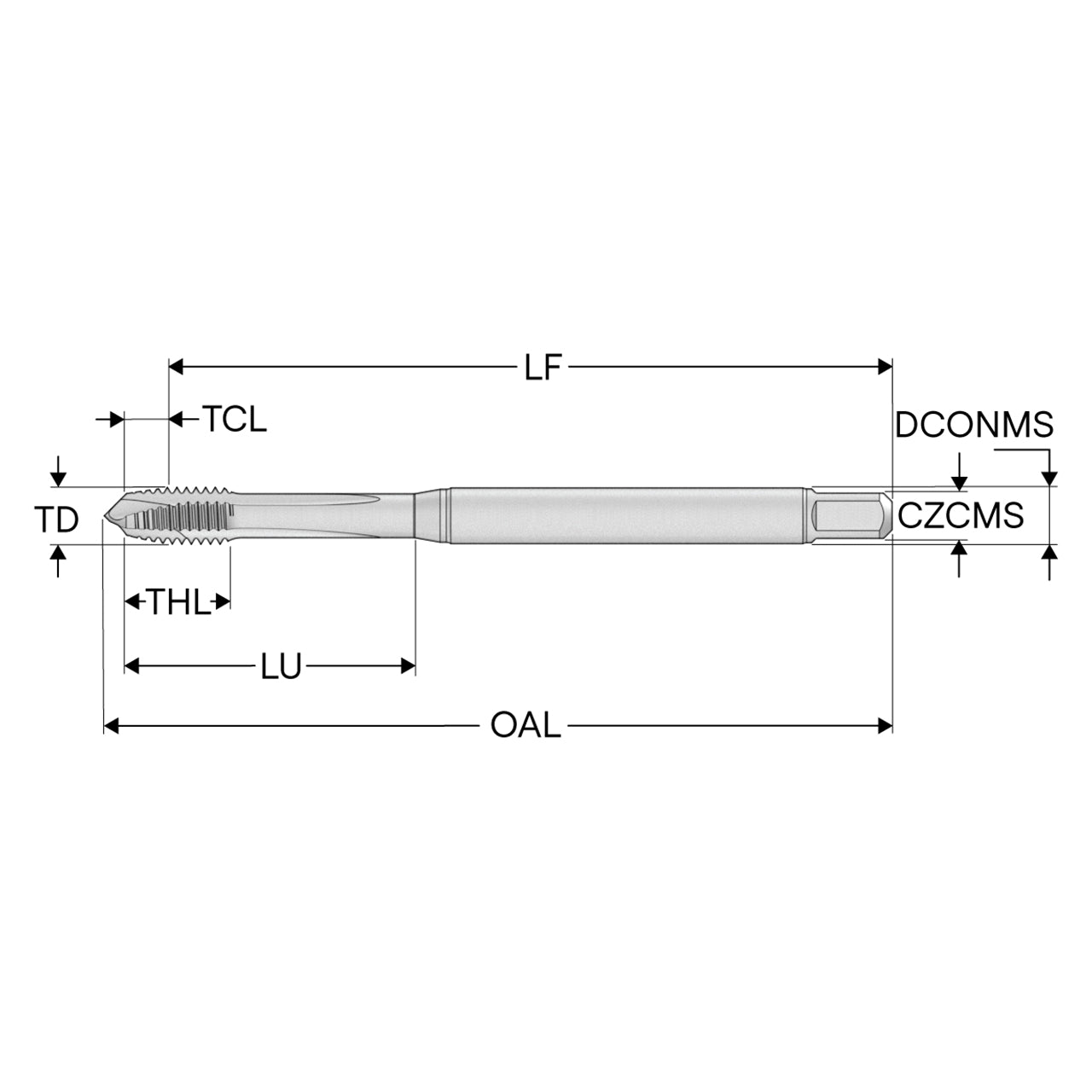

Product Specifications
| Manufacturer Part Number | 10280478 |
| Coating | TiAIN+WC/C |
| Connection Diameter Machine Side (Decimal Inch) | 0.194" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 2.610" |
| Usable Length (Decimal Inch) | 0.990" |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.835" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.165" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.146" |
| Thread Diameter (Decimal Inch) | 0.197" |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Length (Decimal Inch) | 0.146" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 0.315" |
| Product Series | T34 |

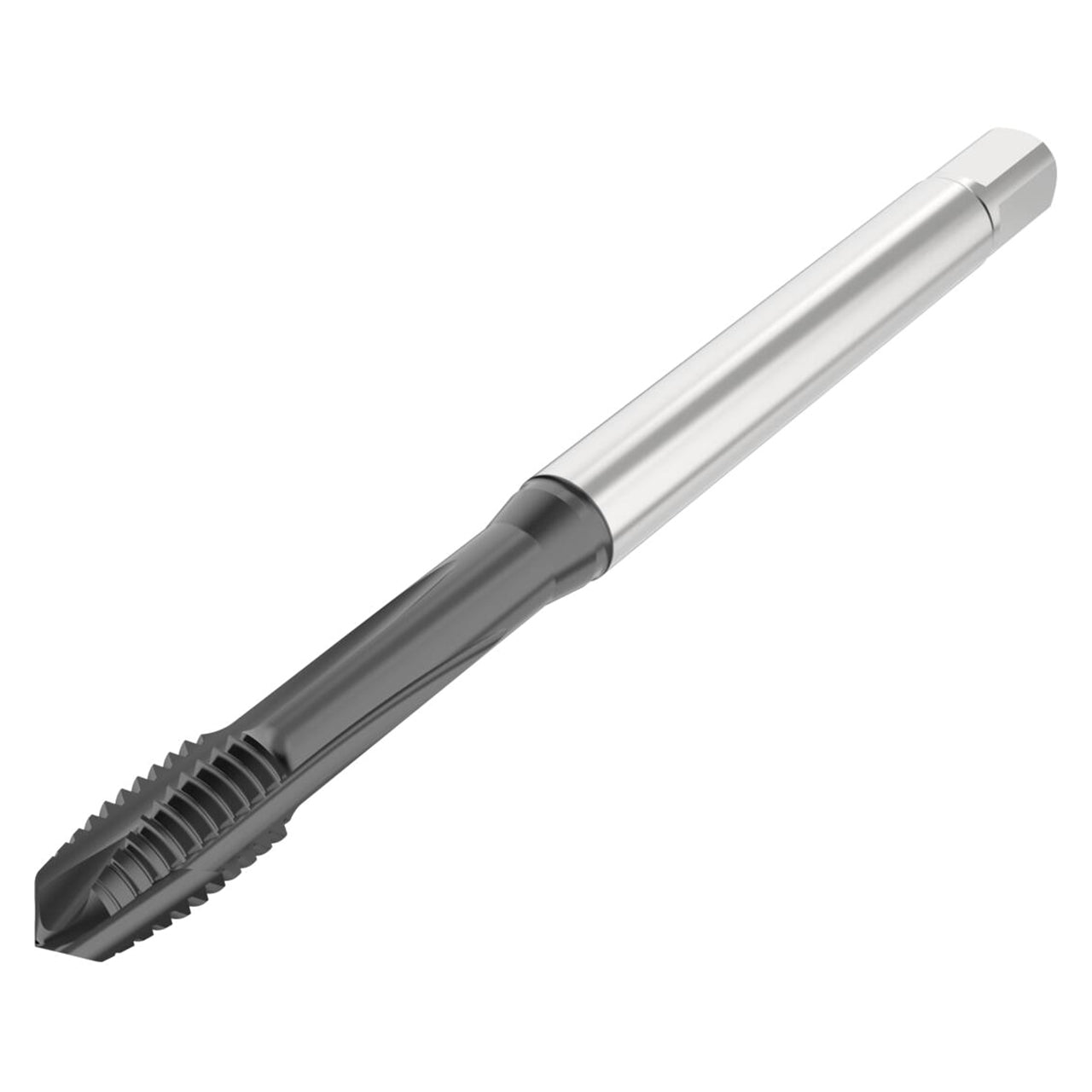

| Product Type | Spiral Point Tap |
