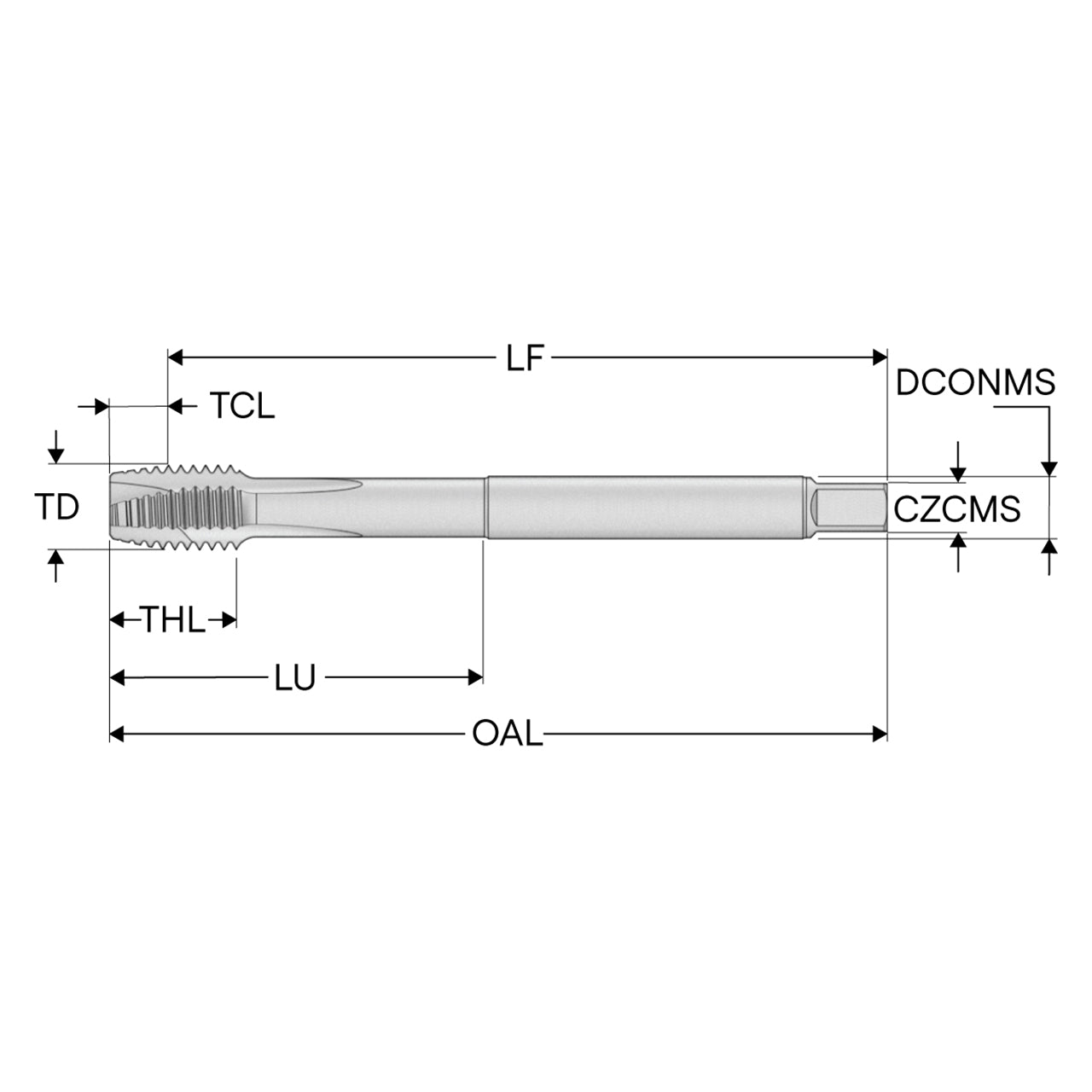

Product Specifications
| Manufacturer Part Number | 10280469 |
| Coating | TiAIN+WC/C |
| Connection Diameter Machine Side (Decimal Inch) | 0.381" |
| Shank Diameter (Decimal Inch) | 0.381" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 3.347" |
| Usable Length (Decimal Inch) | 1.384" |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.543" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.335" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.196" |
| Thread Diameter (Decimal Inch) | 0.375" |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Length (Decimal Inch) | 0.196" |
| Thread Form Type | UNF |
| Thread Length (Decimal Inch) | 0.591" |
| Product Series | T34 |

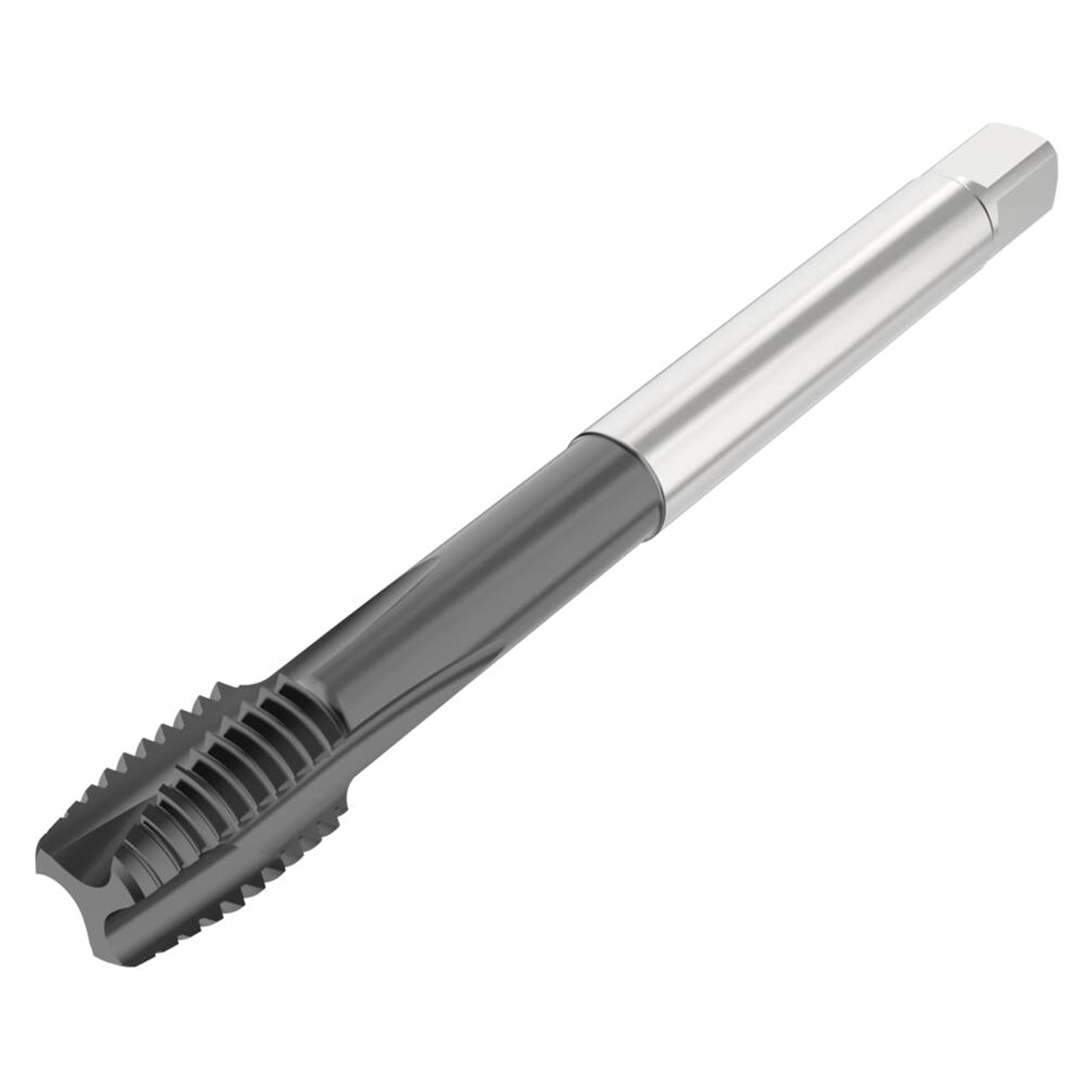

| Product Type | Spiral Point Tap |
