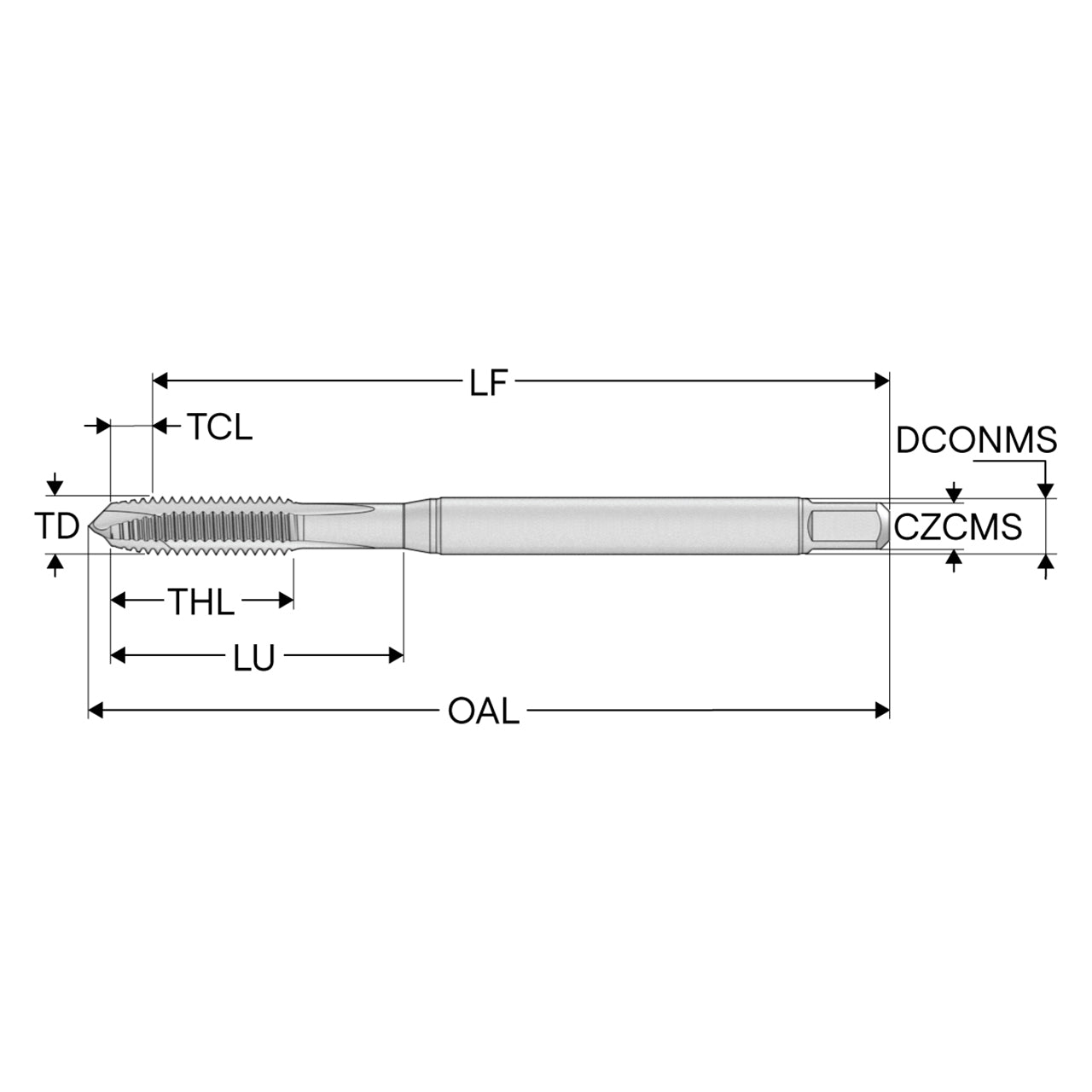

Product Specifications
| Manufacturer Part Number | 10280435 |
| Coating | TiAIN+TiN |
| Connection Diameter Machine Side (Decimal Inch) | 0.168" |
| Shank Diameter (Decimal Inch) | 0.168" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 2.354" |
| Usable Length (Decimal Inch) | 1.228" |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.543" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.130" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.131" |
| Thread Diameter (Decimal Inch) | 0.158" |
| Thread Tolerance Class | 6H |
| Threading Chamfer Length (Decimal Inch) | 0.131" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 0.472" |
| Product Series | T32 |

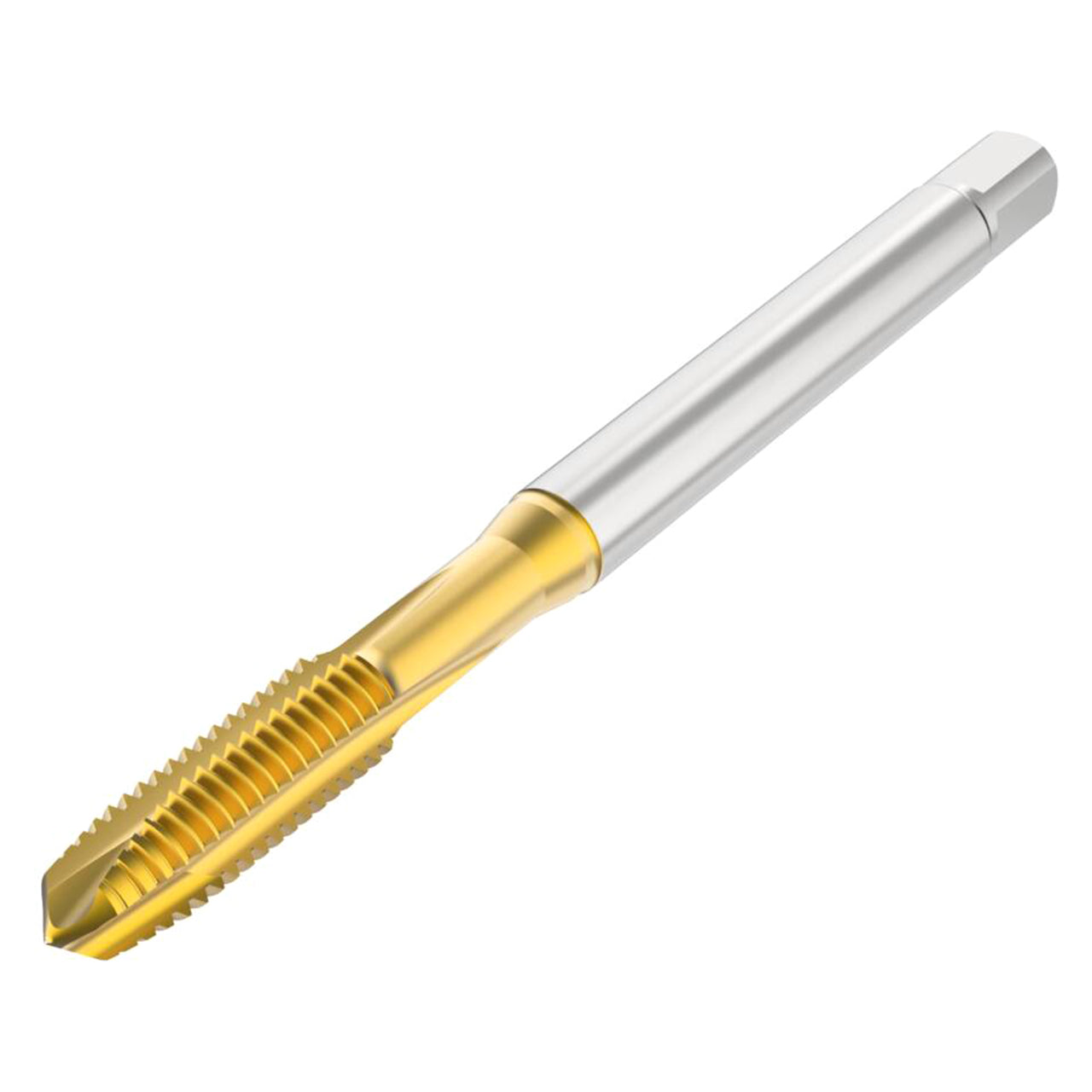

| Product Type | Spiral Point Tap |
