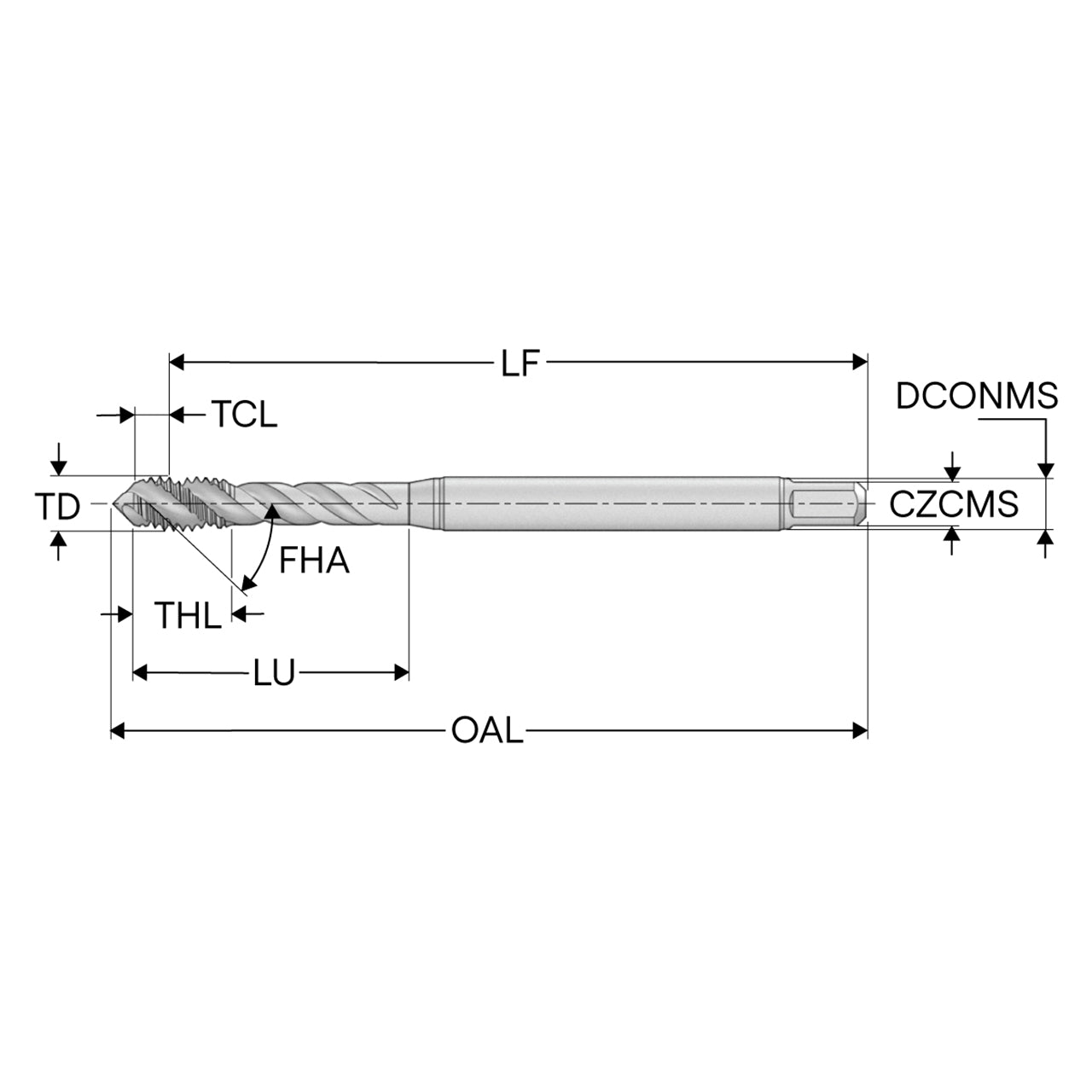

Product Specifications
| Manufacturer Part Number | 10280387 |
| Coating | TiAIN+WC/C |
| Connection Diameter Machine Side (Decimal Inch) | 0.590" |
| Shank Diameter (Decimal Inch) | 0.590" |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 4.165" |
| Usable Length (Decimal Inch) | 2.459" |
| Material | HSS-E-PM |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.331" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.689" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.166" |
| Thread Diameter (Decimal Inch) | 0.750" |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Length (Decimal Inch) | 0.166" |
| Thread Form Type | UNF |
| Thread Length (Decimal Inch) | 0.945" |
| Product Series | T34 |
| Product Type | Spiral Flute Tap |
