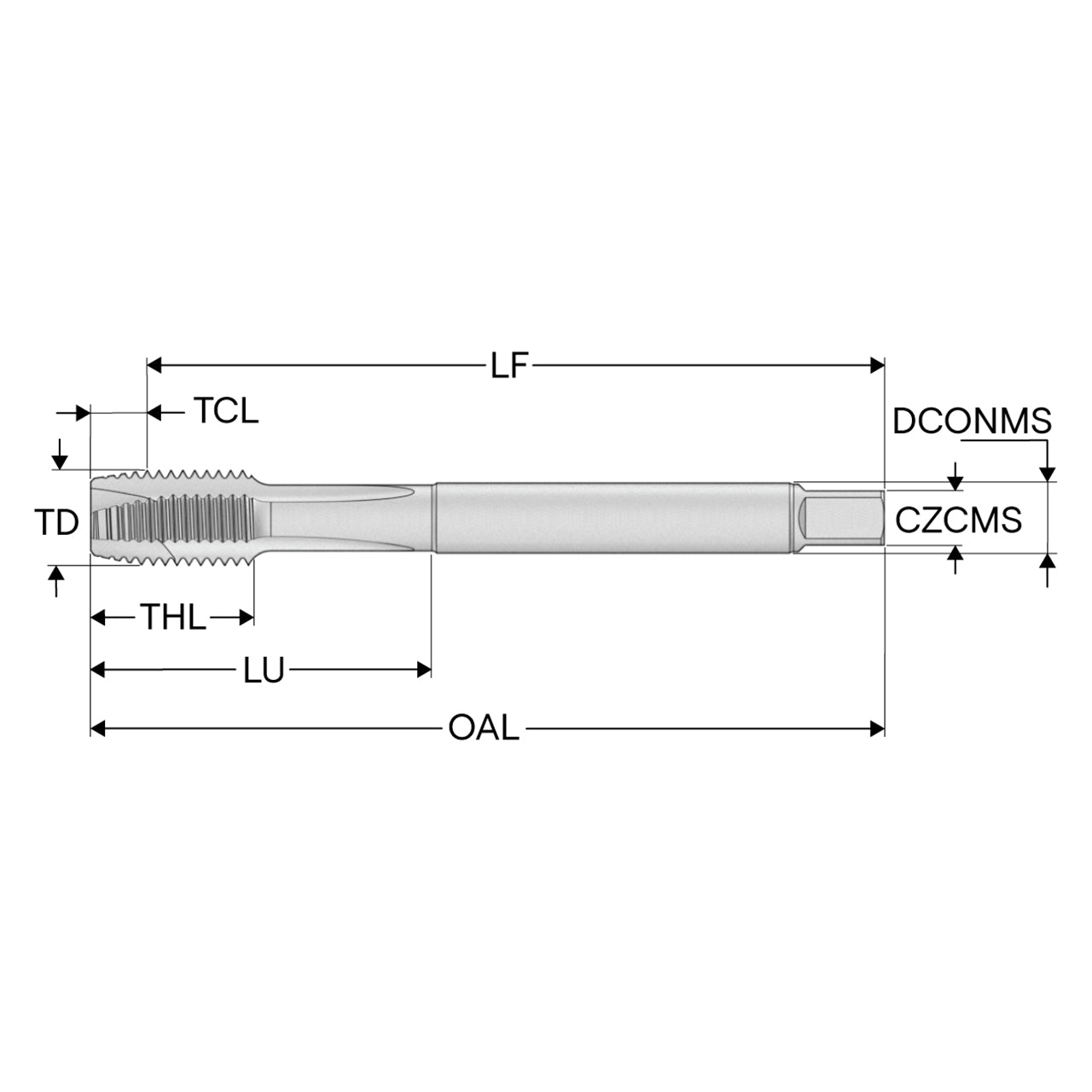

Product Specifications
| Manufacturer Part Number | 10280314 |
| Coating | TiAIN+TiN |
| Connection Diameter Machine Side (Decimal Inch) | 0.141" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Flute Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 2.154" |
| Usable Length (Decimal Inch) | 0.720" |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.252" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.093" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.057" |
| Thread Diameter (Decimal Inch) | 0.112" |
| Thread Tolerance Class | 2B |
| Threading Chamfer Length (Decimal Inch) | 0.057" |
| Thread Form Type | UNC |
| Thread Length (Decimal Inch) | 0.197" |
| Product Series | T32 |

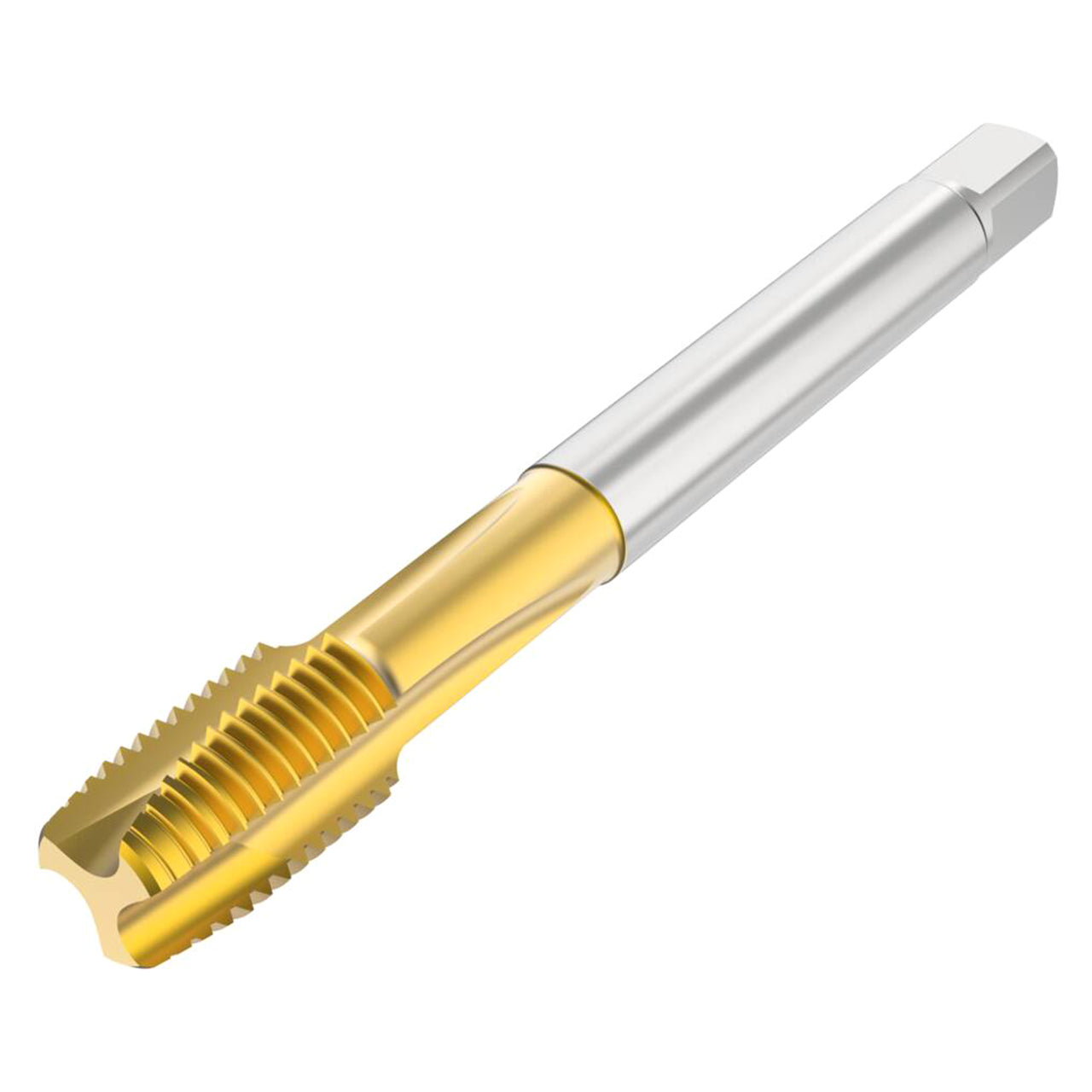

| Product Type | Spiral Flute Tap |
