Product Specifications

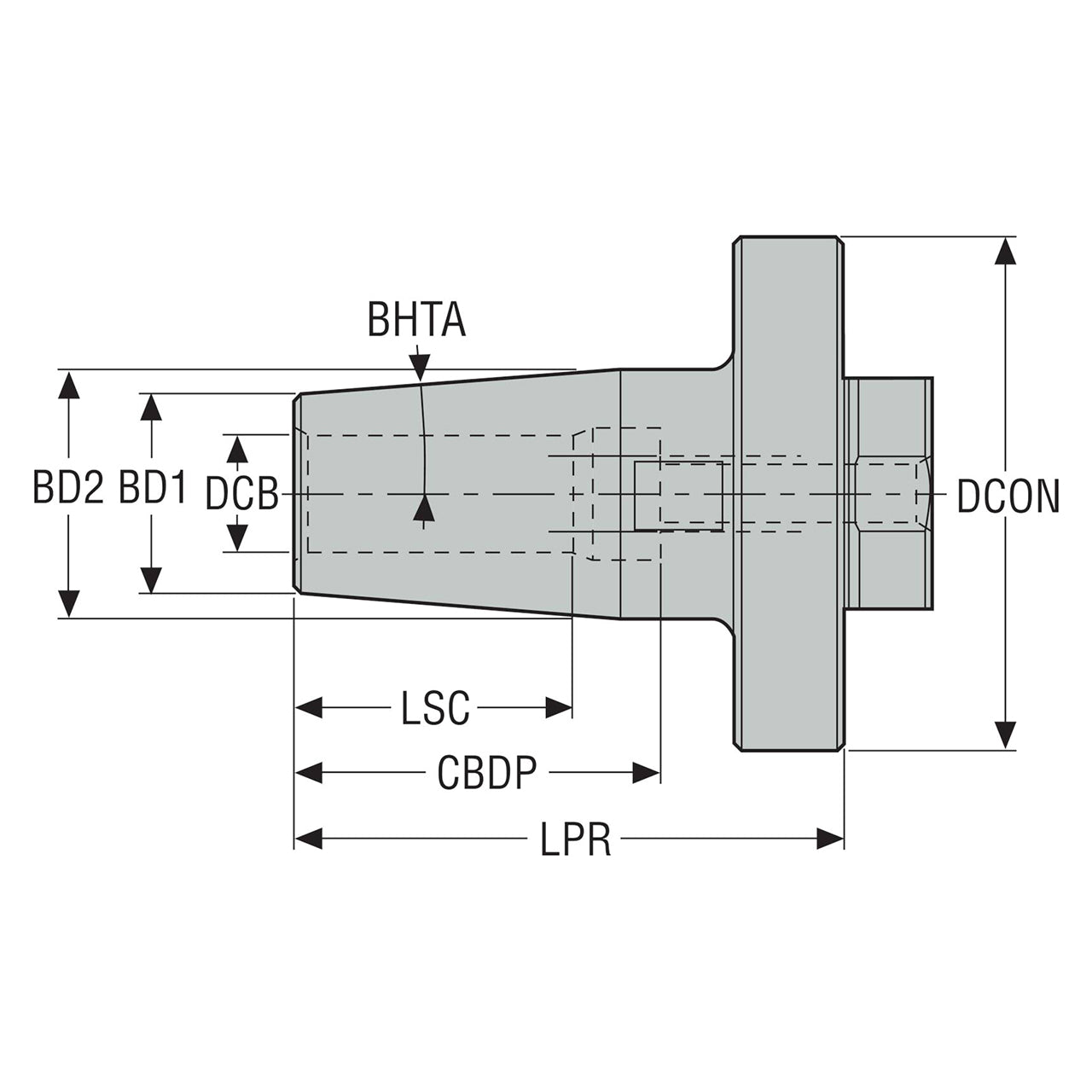

| Manufacturer Part Number | 10280202 |
| Body Diameter 1 (Decimal Inch) | 0.827" |
| Body Diameter 2 (Decimal Inch) | 1.063" |
| Body Half Taper Angle (Degree) | 4.50 Degree |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Protruding Length (Decimal Inch) | 2.756" |
| Product Series | SAH |
| Product Type | Modular Reamer Hardware |
