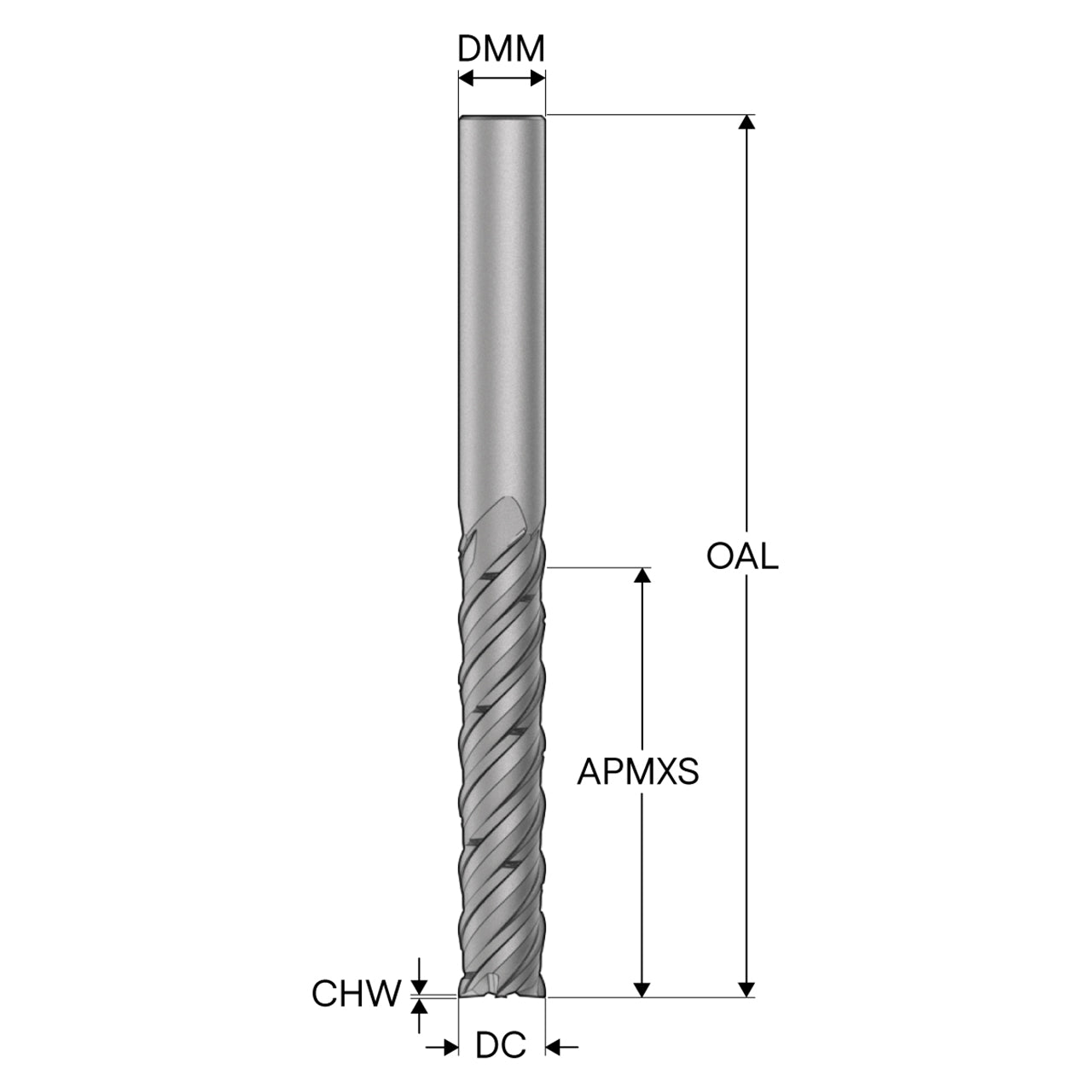

Product Specifications
| Manufacturer Part Number | 10273182 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 60.00mm |
| Center Cutting Capability | -1 |
| Cutting Geometry Type | JS564 |
| Corner chamfer width (mm) | 0.15mm |
| Coating | NXT |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 48 Degree |
| Corner Chamfer Angle (Degree) | 45.00 Degree |
| Overall Length (mm) | 115.00mm |
| Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Product Series | JS564 |

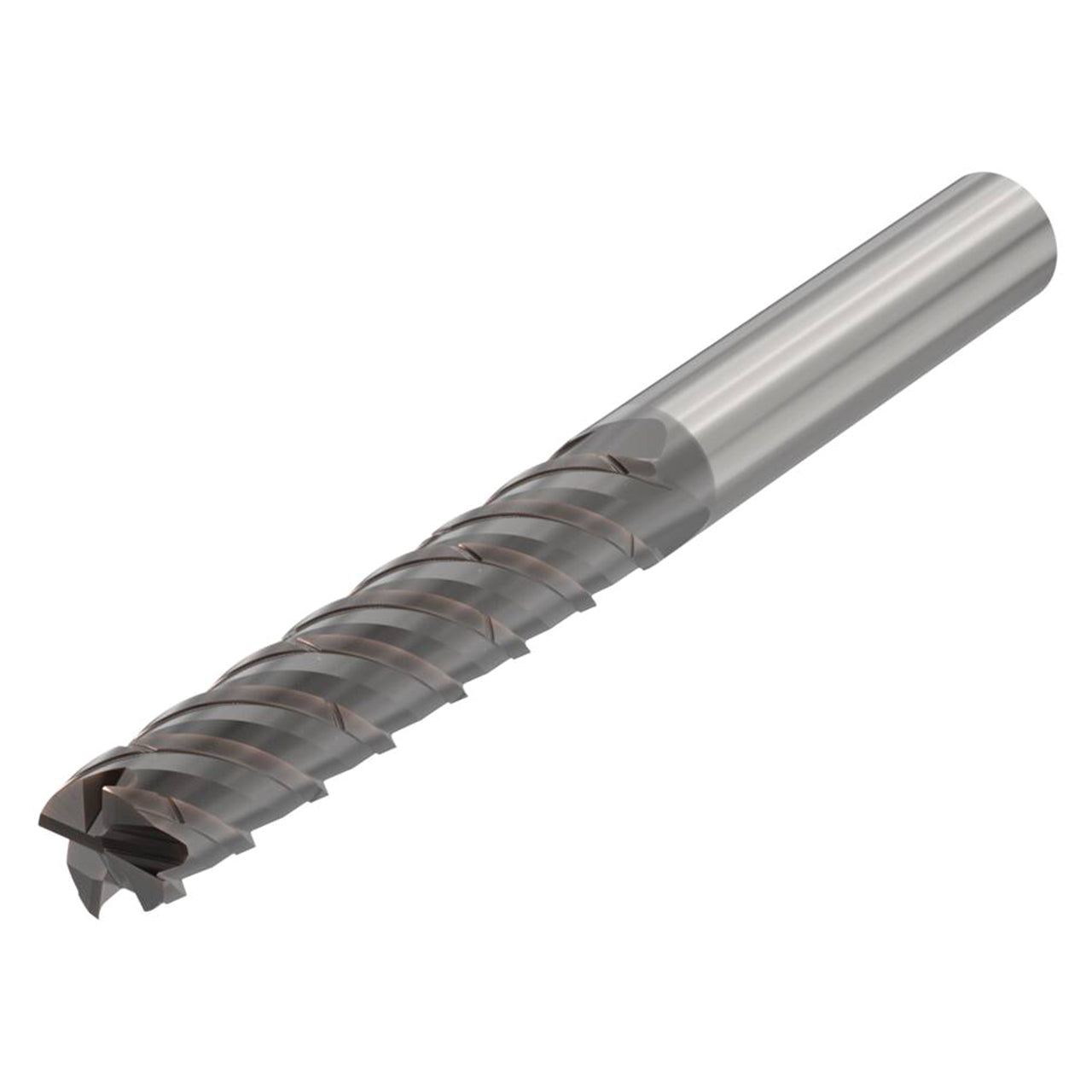

| Product Type | Corner Chamfer End Mill |
