Product Specifications

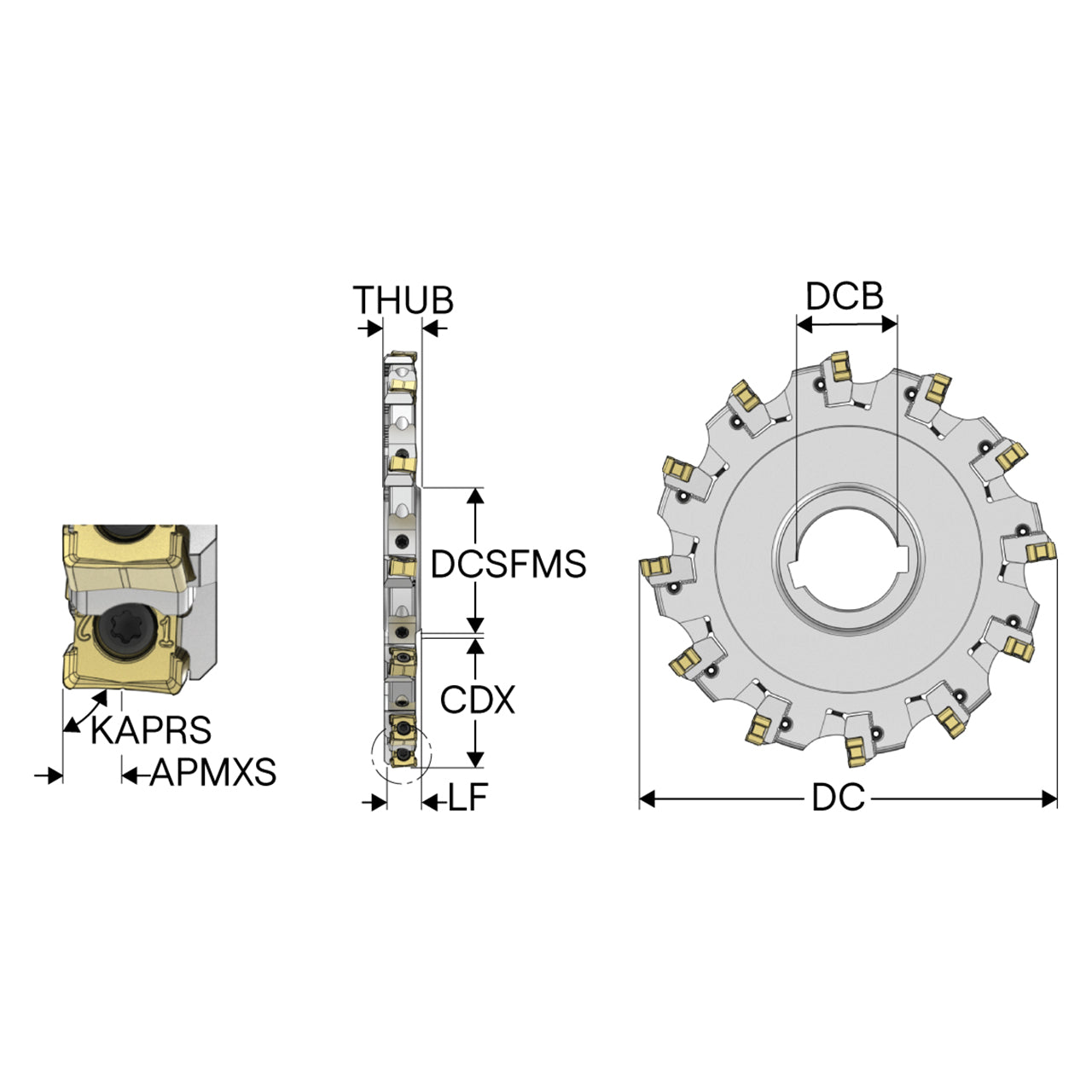

| Manufacturer Part Number | 10272500 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.197" |
| Cutting Pitch Density | Normal |
| Cutting Diameter (Decimal Inch) | 10.000" |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Diameter Machine Side (Decimal Inch) | 2.000" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.000" |
| Cutting Direction | Neutral |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 0.547" |
| Rotational Speed Maximum | 6000 rpm |
| Shank Type | Arbor hole |
| Peripheral Effective Cutting Edge Count | 18 |
| Product Series | 335.18 |

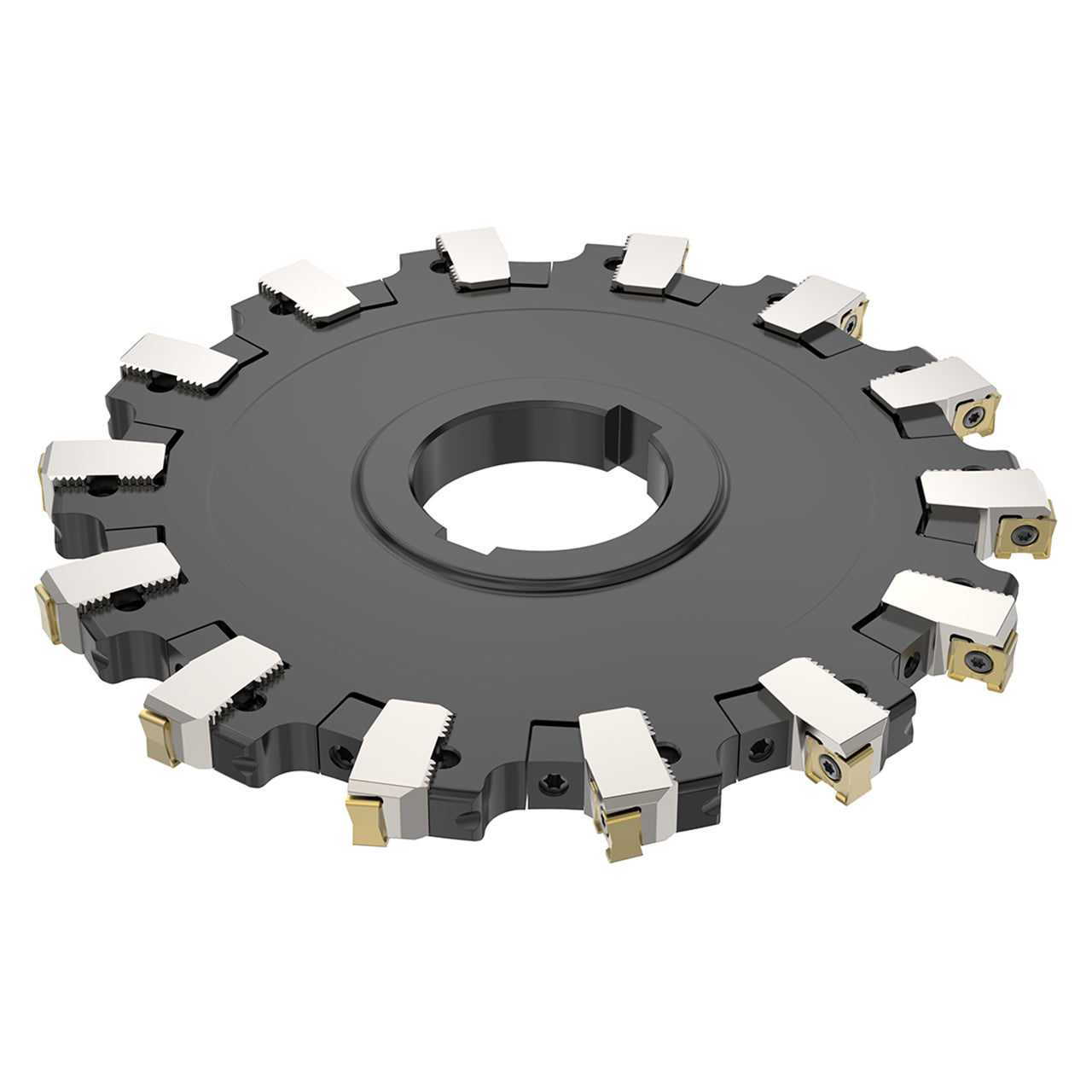

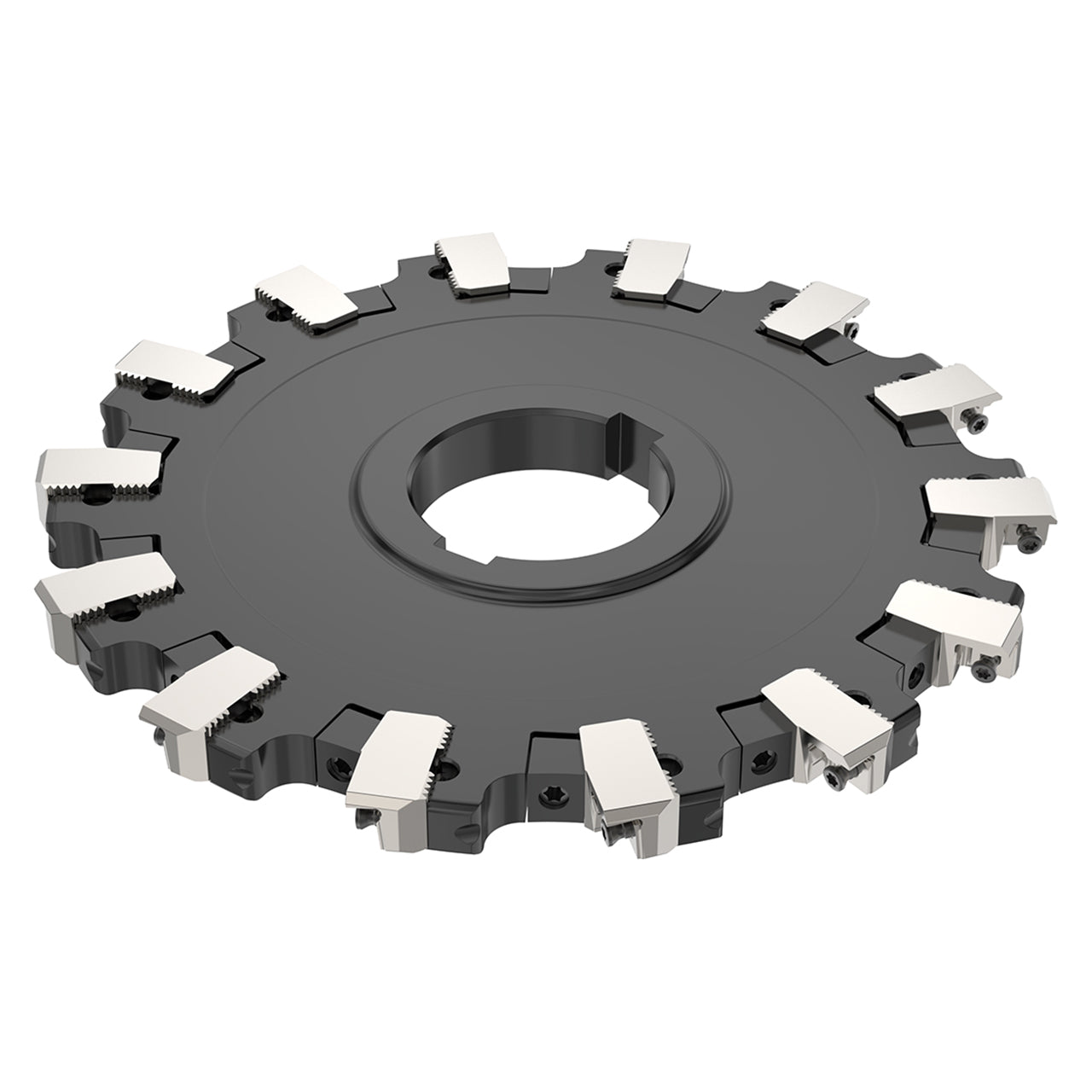

| Product Type | Indexable Slotting Cutter |
