Product Specifications
| Manufacturer Part Number | 10272494 |

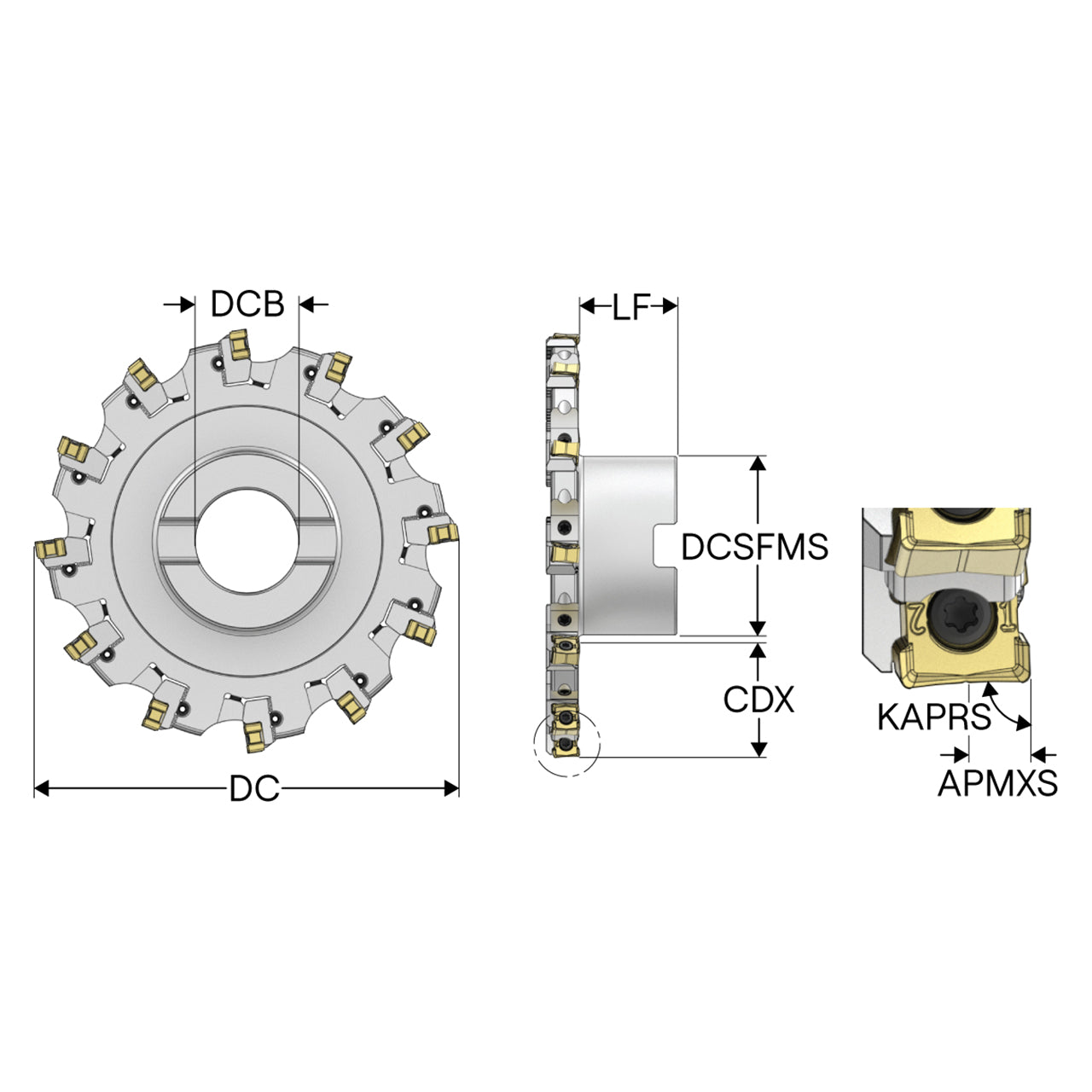

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.197" |
| Cutting Pitch Density | Normal |
| Cutting Diameter (Decimal Inch) | 6.197" |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.750" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 1.528" |
| Rotational Speed Maximum | 7500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 12 |
| Product Series | R335.18 |

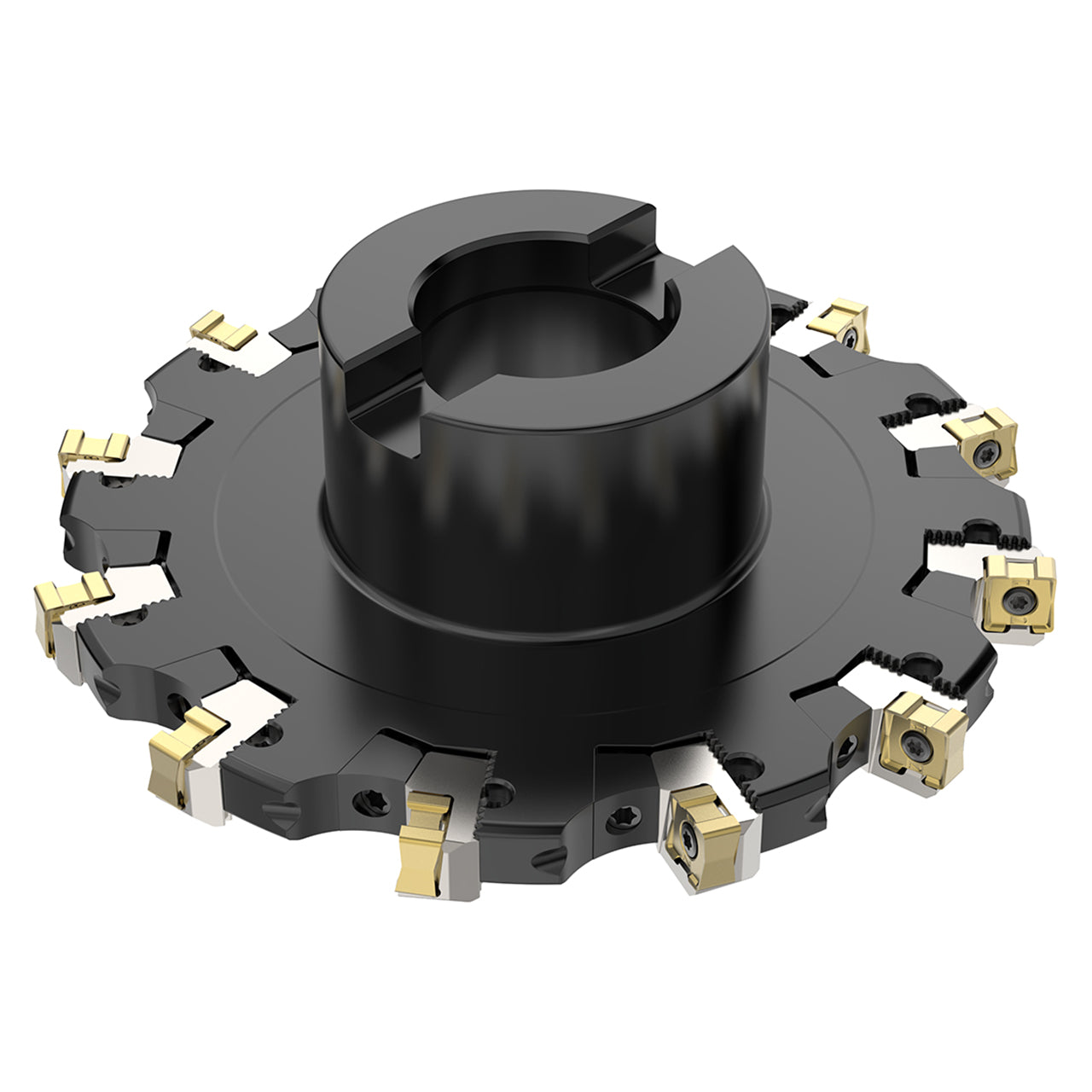

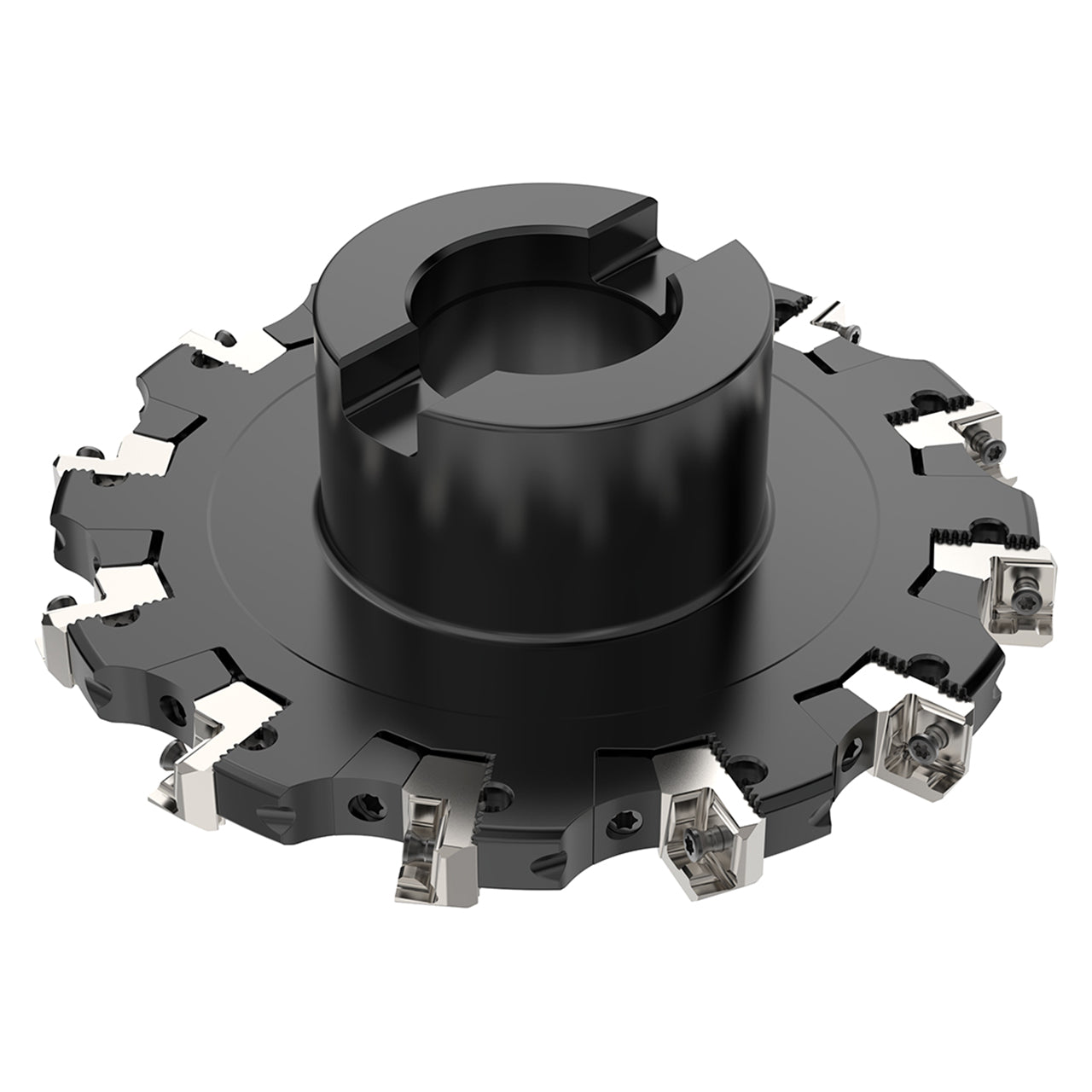

| Product Type | Indexable Slotting Cutter |
