Product Specifications
| Manufacturer Part Number | 10272480 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 5.00mm |
| Cutting Pitch Density | Normal |
| Cutting Diameter (mm) | 315.00mm |
| Connection Diameter Machine Side (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 69.00mm |
| Cutting Direction | Neutral |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (mm) | 13.50mm |
| Rotational Speed Maximum | 5300 rpm |
| Shank Type | Arbor hole |
| Peripheral Effective Cutting Edge Count | 24 |
| Product Series | 335.18 |

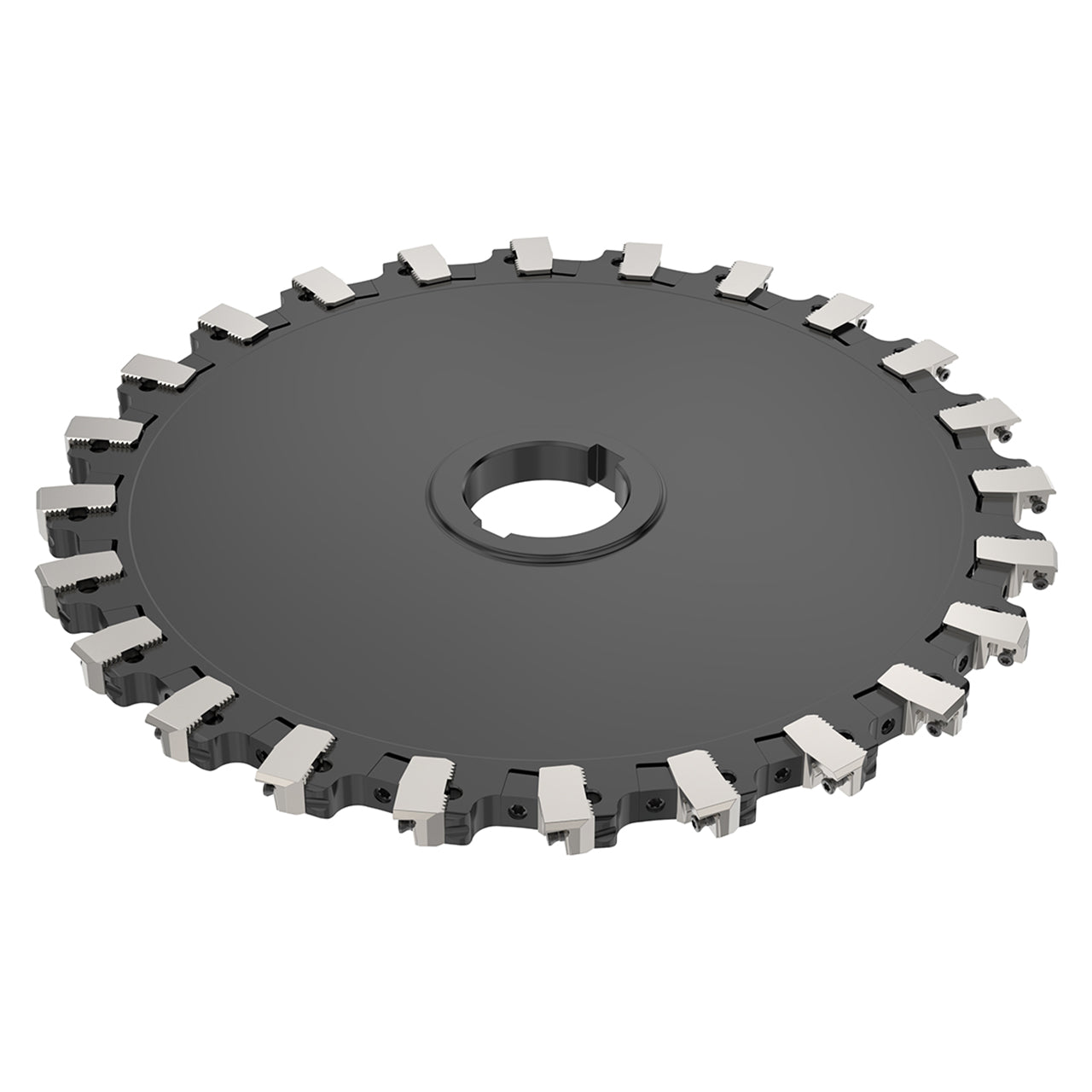

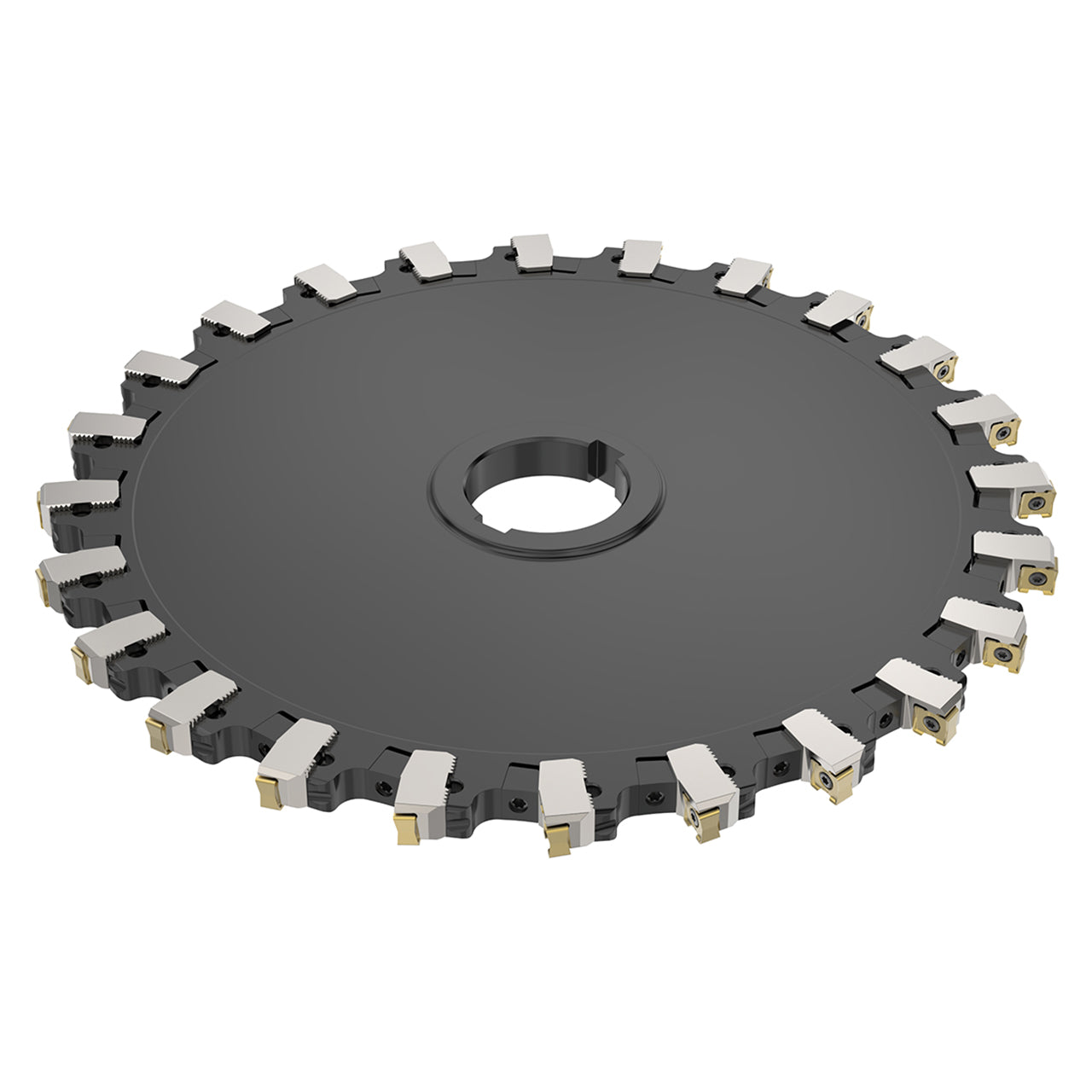

| Product Type | Indexable Slotting Cutter |
