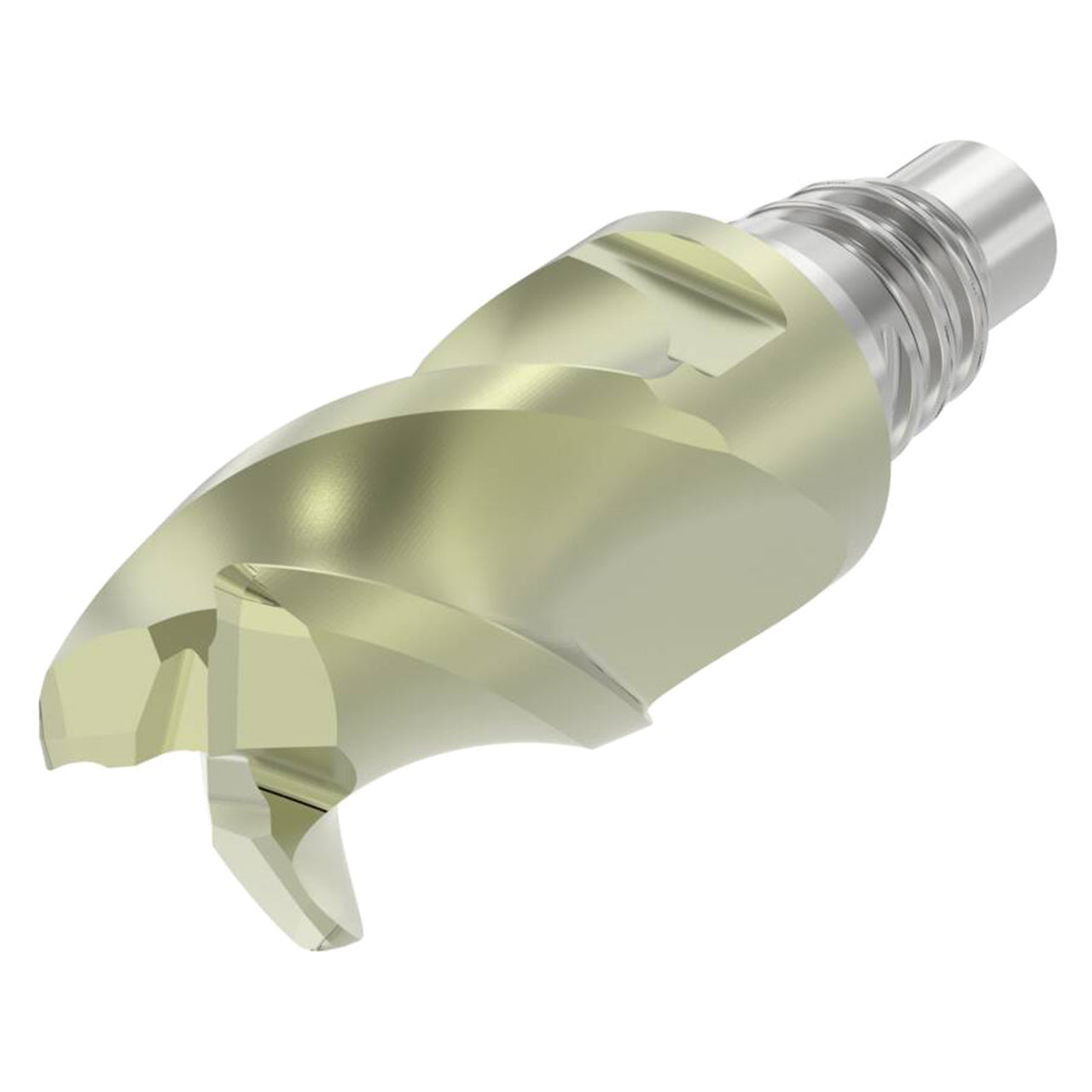

Seco Tools 10271562 | XSE450E12.500D2R010Z3 0.394" Wrench Size x 0.500" Cutting Diameter x 0.600" Depth of Cut x 0.010" Radius x 1.449" OAL x 45 Degree Helix Angle 3 Cutting Edge XSE450 Corner Radius Milling Tip Insert

Seco Tools 10271562 | XSE450E12.500D2R010Z3 0.394" Wrench Size x 0.500" Cutting Diameter x 0.600" Depth of Cut x 0.010" Radius x 1.449" OAL x 45 Degree Helix Angle 3 Cutting Edge XSE450 Corner Radius Milling Tip Insert

SKU: 23461661

$150.00 USD
$150.00 USD $150.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

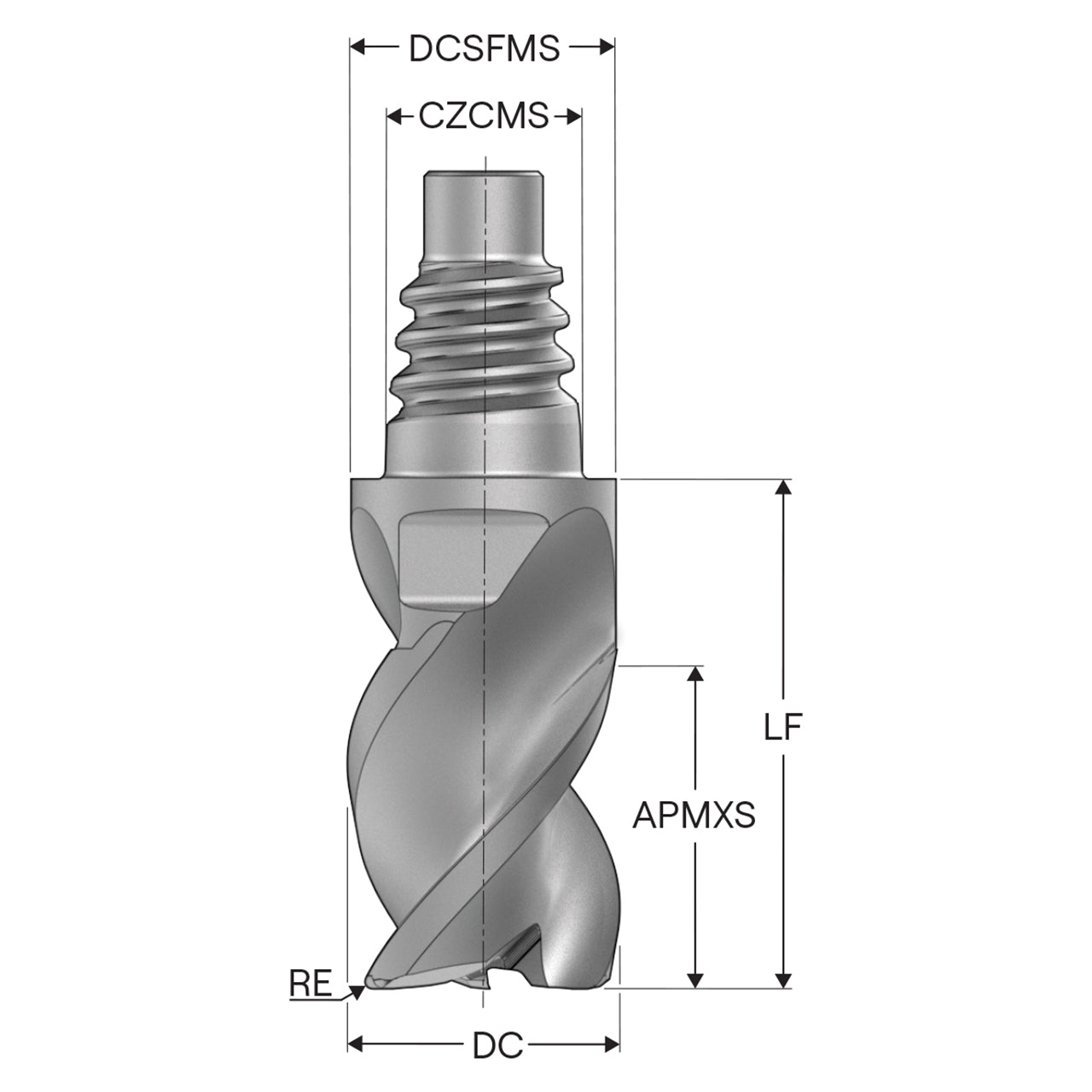

Product Specifications
Manufacturer Part Number 10271562
Depth of Cut Maximum in Feed Direction Side (Decimal Inch) 0.600"
Center Cutting Capability Yes
Cutting Geometry Type XSE450
Coating AXT
Coolant Supply Property No
Cutting Diameter (Decimal Inch) 0.500"
Contact Surface Diameter Machine Side (Decimal Inch) 0.484"
Face Cutting Edge Count 3
Flute Helix Angle (Degree) 45 Degree
Functional Length (Decimal Inch) 0.906"
Overall Length (Decimal Inch) 1.449"
Cutting Edge Count 3
Corner Radius (Decimal Inch) 0.010"
Torque (Nm) 15.00nm
Product Series XSE450
Product Type Corner Radius Milling Tip Insert
