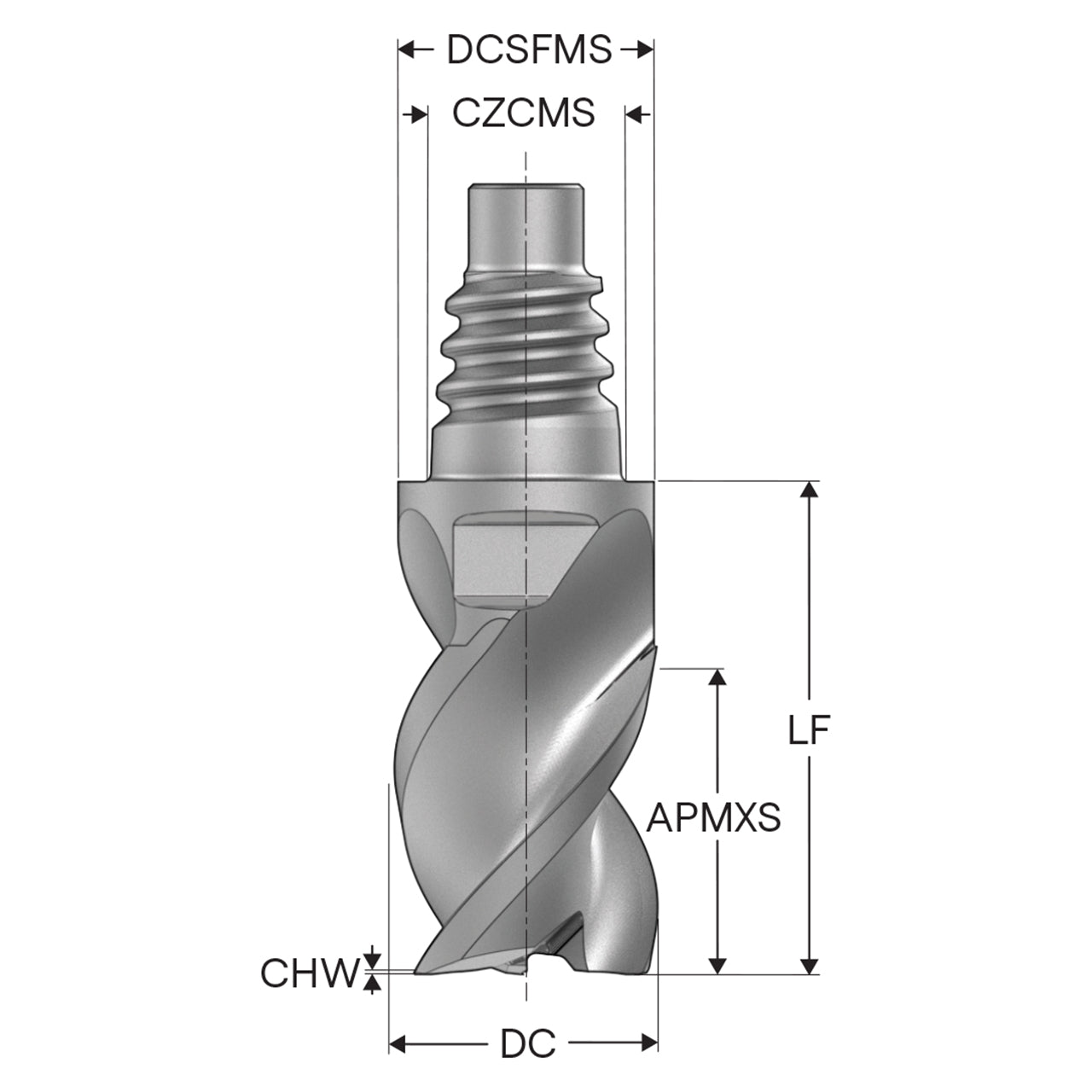

Product Specifications
| Manufacturer Part Number | 10271544 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 19.20mm |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | XSE450 |
| Corner chamfer width (mm) | 0.10mm |
| Coating | AXT |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 15.50mm |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Corner Chamfer Angle (Degree) | 45.00 Degree |
| Functional Length (mm) | 29.20mm |
| Overall Length (mm) | 46.20mm |
| Cutting Edge Count | 3 |
| Torque (Nm) | 30.00nm |
| Product Series | XSE450 |

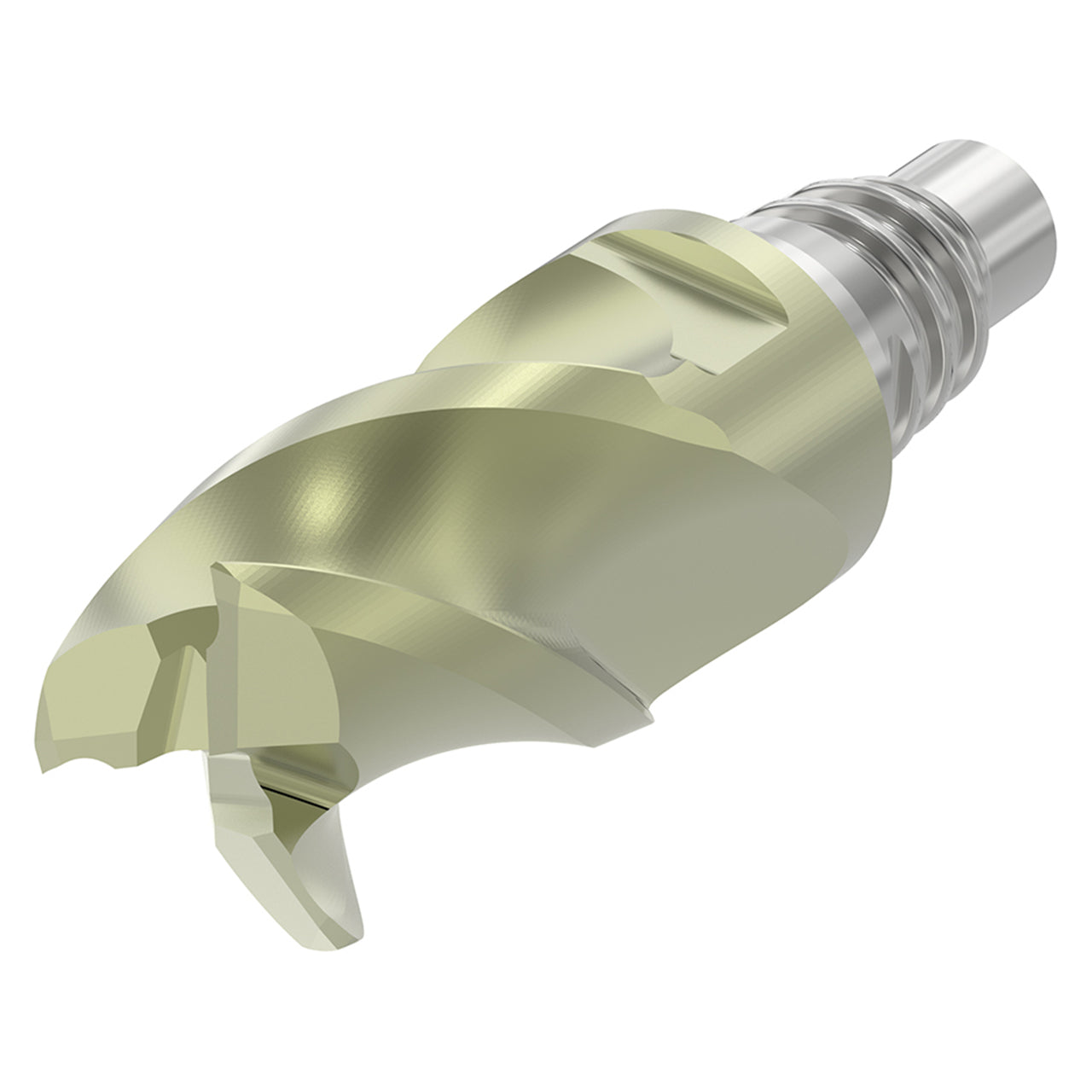

| Product Type | Square-Shoulder Milling Tip Insert |
