Product Specifications
| Manufacturer Part Number | 10271487 |
| Clearance Angle Major (Degree) | -2.00 Degree |
| Wiper Edge Length (Decimal Inch) | 0.214" |
| Cutting edge count | 8 |
| Cutting Geometry Type Technical | M12 |
| Insert size and shape | SNFX1204ZZ |
| Grade Type | Carbide PVD |

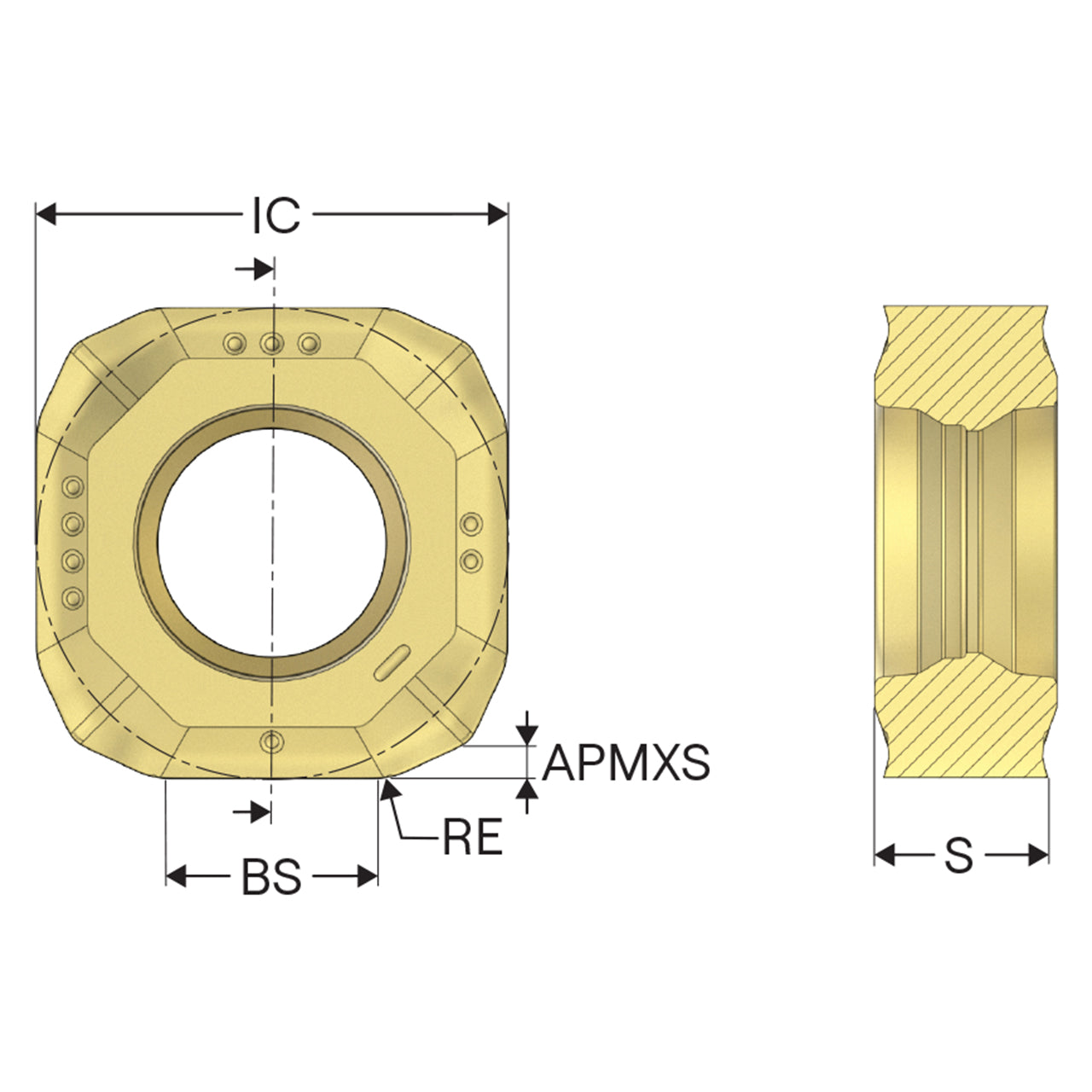

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Insert Hand | Neutral |
| Cutting Edge Effective Length (Decimal Inch) | 0.083" |
| Corner Radius (Decimal Inch) | 0.079" |
| Insert Thickness (Decimal Inch) | 0.182" |
| Product Series | SNFX |

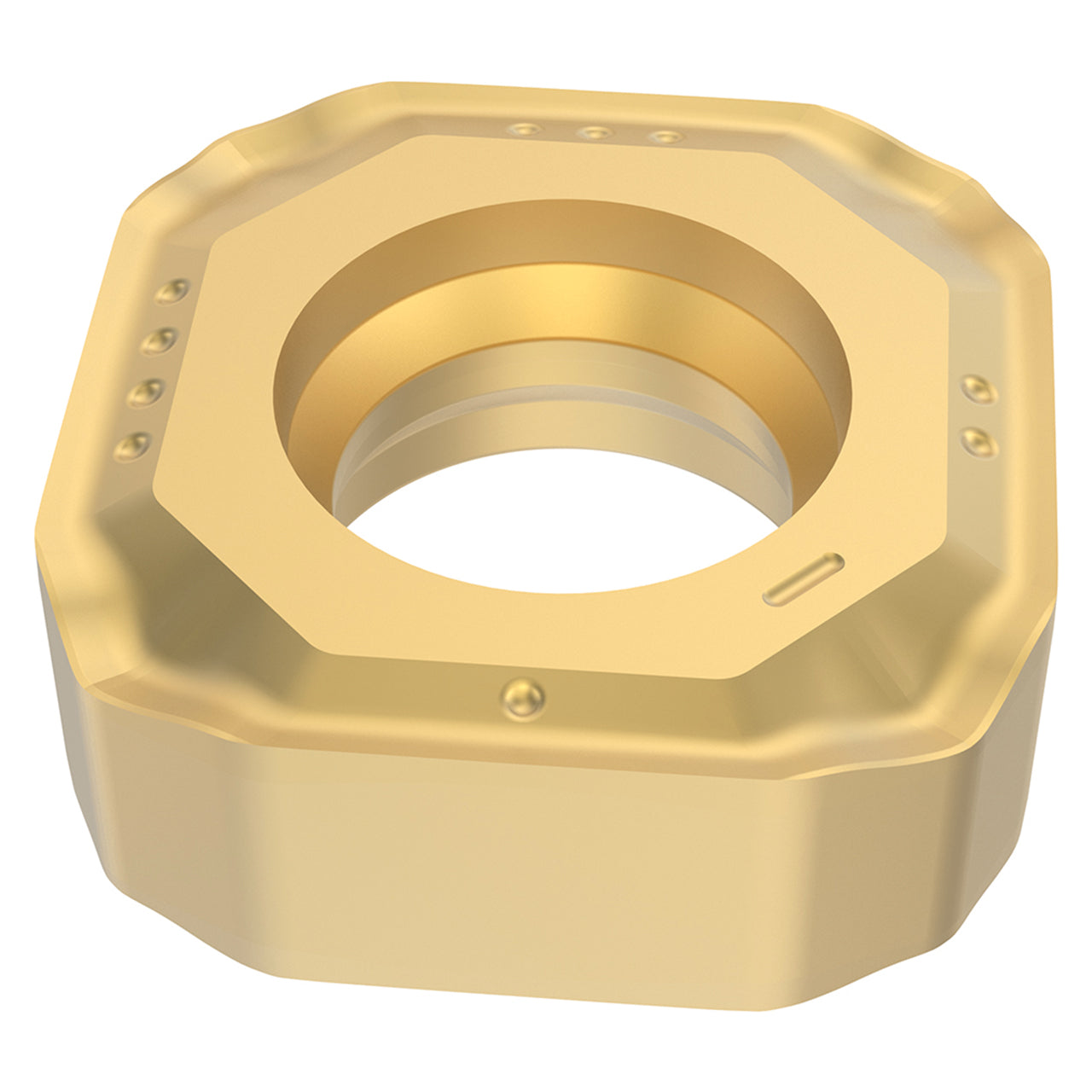

| Product Type | Milling Insert |
