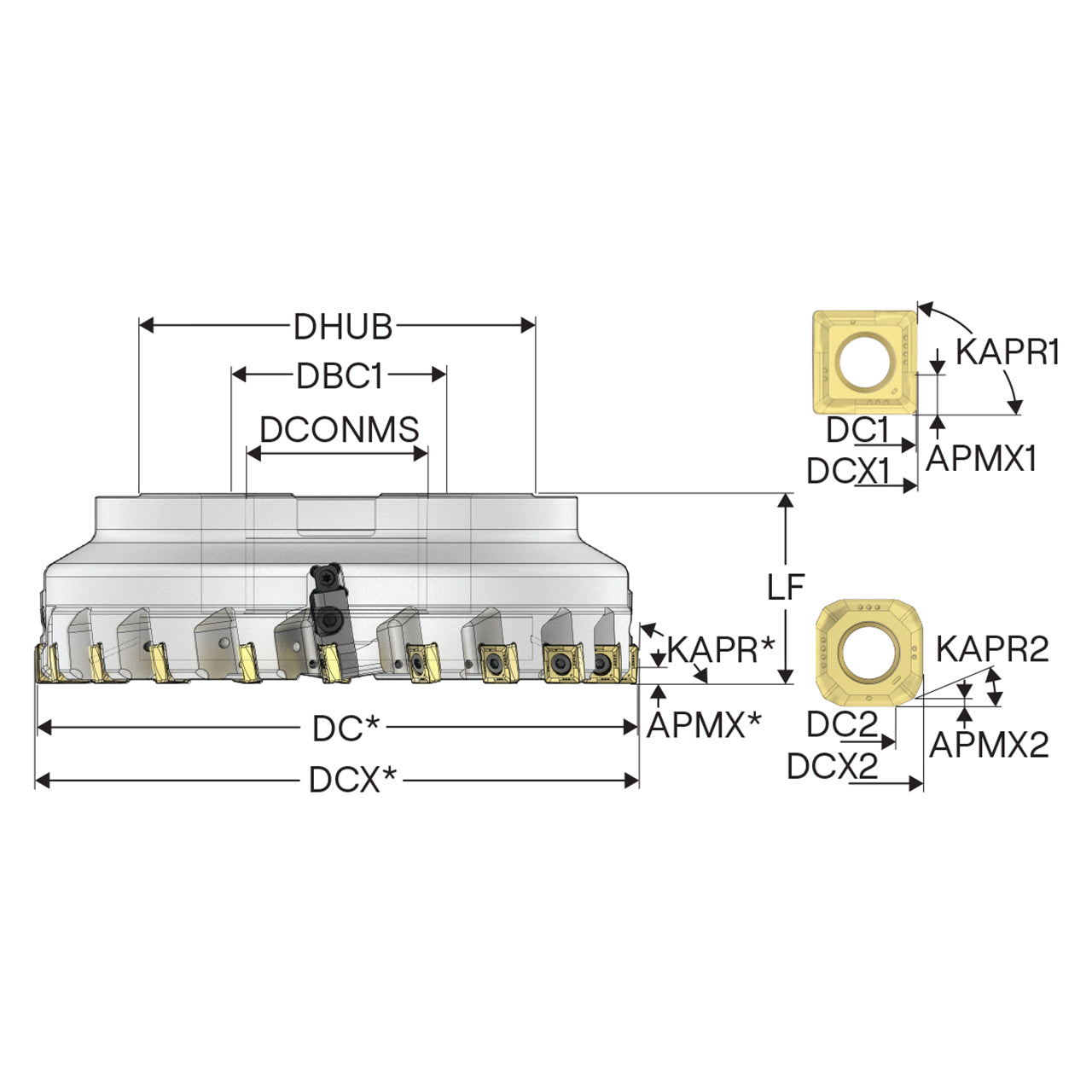

Product Specifications
| Manufacturer Part Number | 10271444 |
| Depth of Cut Maximum 1 (Decimal Inch) | 0.118" |
| Depth of Cut Maximum 2 (Decimal Inch) | 0.039" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | Yes |
| Cutting Diameter 1 (Decimal Inch) | 5.966" |
| Cutting Diameter 2 (Decimal Inch) | 5.697" |
| Connection Diameter Machine Side (Decimal Inch) | 2.000" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle 1 (Degree) | 88.00 Degree |
| Tool Cutting Edge Angle 2 (Degree) | -27.00 Degree |
| Functional Length (Decimal Inch) | 2.480" |
| Rotational Speed Maximum | 6500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 15 |
| Product Series | R220.38 |

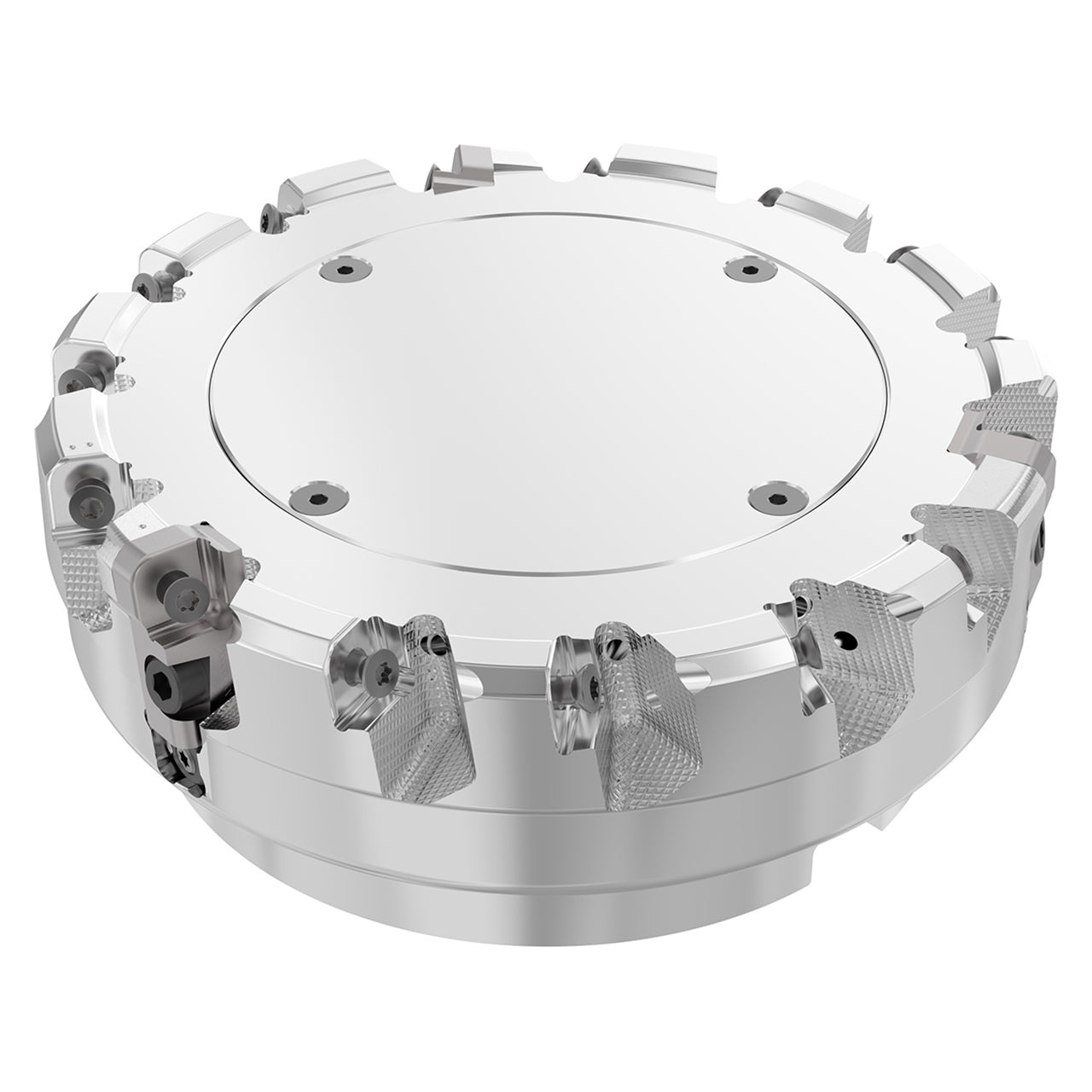

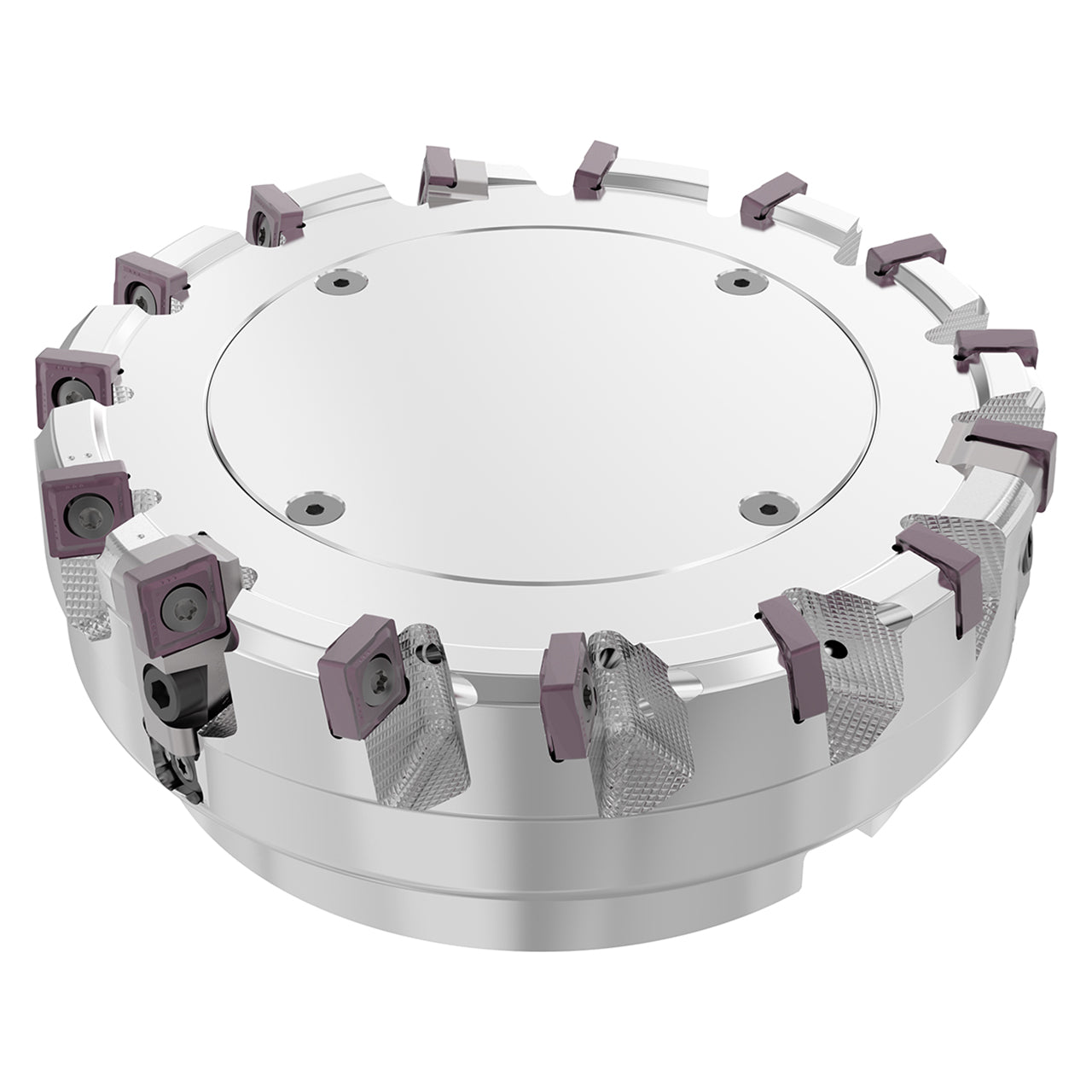

| Product Type | Indexable Chamfer & Angle Face Mill |
