Product Specifications
| Manufacturer Part Number | 10271421 |
| Depth of Cut Maximum 1 (mm) | 3.00mm |
| Depth of Cut Maximum 2 (mm) | 1.00mm |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | Yes |
| Cutting Diameter 1 (mm) | 99.12mm |
| Cutting Diameter 2 (mm) | 92.30mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Cutting Diameter Maximum 2 (mm) | 99.84mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle 1 (Degree) | 88.00 Degree |
| Tool Cutting Edge Angle 2 (Degree) | 27.00 Degree |
| Functional Length (mm) | 50.00mm |
| Rotational Speed Maximum | 8500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 14 |
| Product Series | R220.38 |

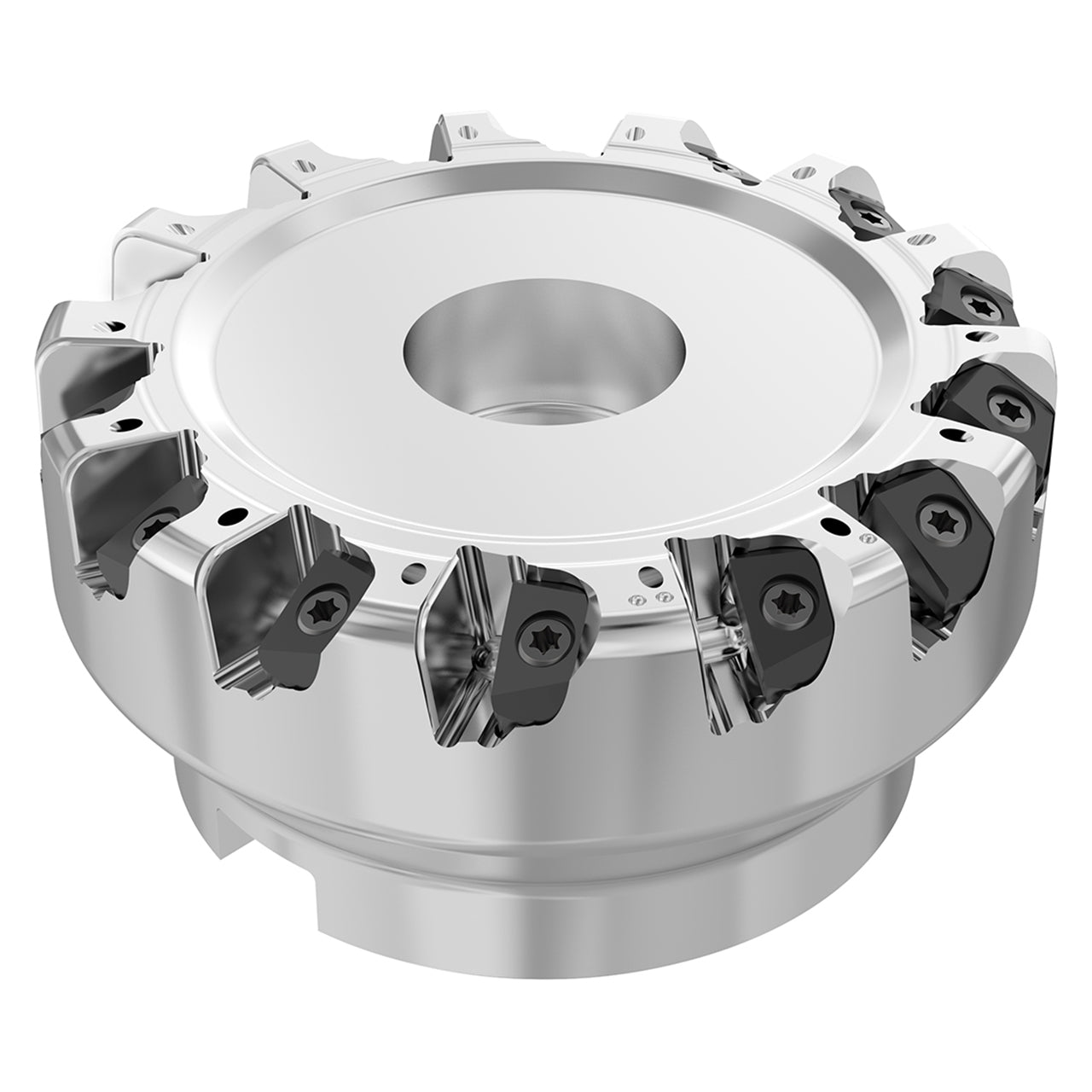

| Product Type | Indexable Chamfer & Angle Face Mill |
