Product Specifications
| Manufacturer Part Number | 10271134 |
| Clearance Angle Major (Degree) | 7.00 Degree |
| Cutting edge count | 2 |
| Grade Type | PCBN |

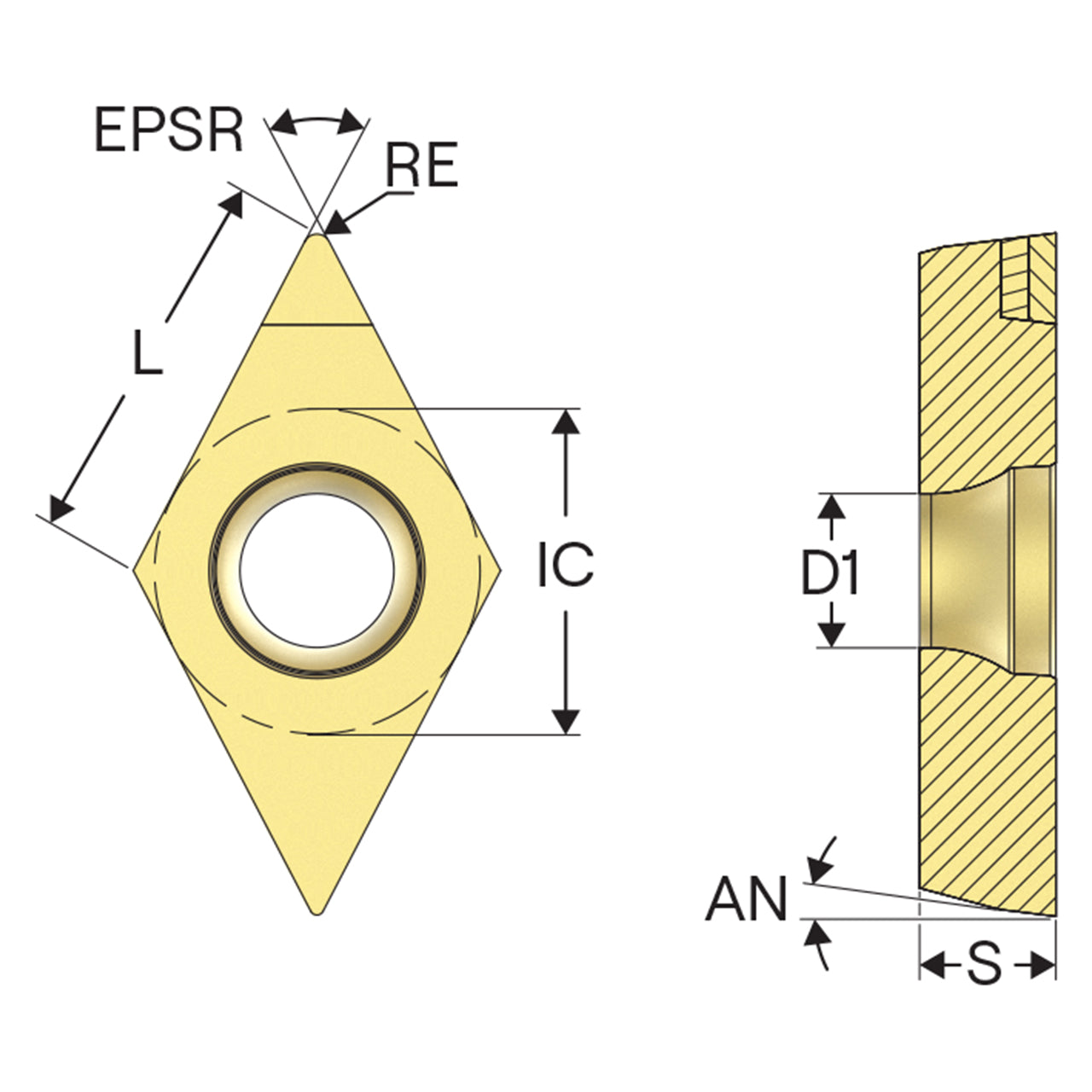

| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Cutting Edge Effective Length (Decimal Inch) | 0.138" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert seat size code | 11 |
| Product Series | DCGW |

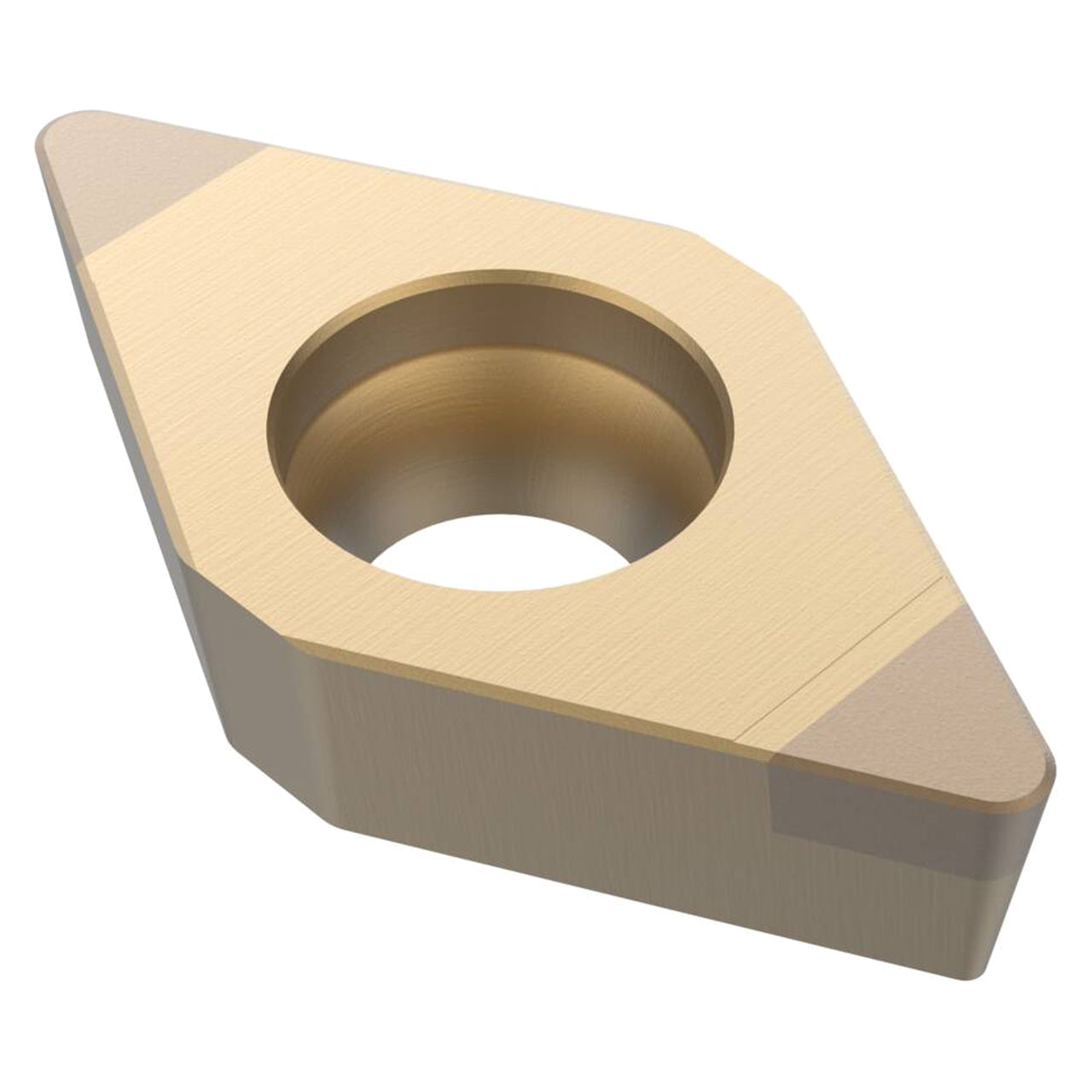

| Product Type | Turning Insert |
