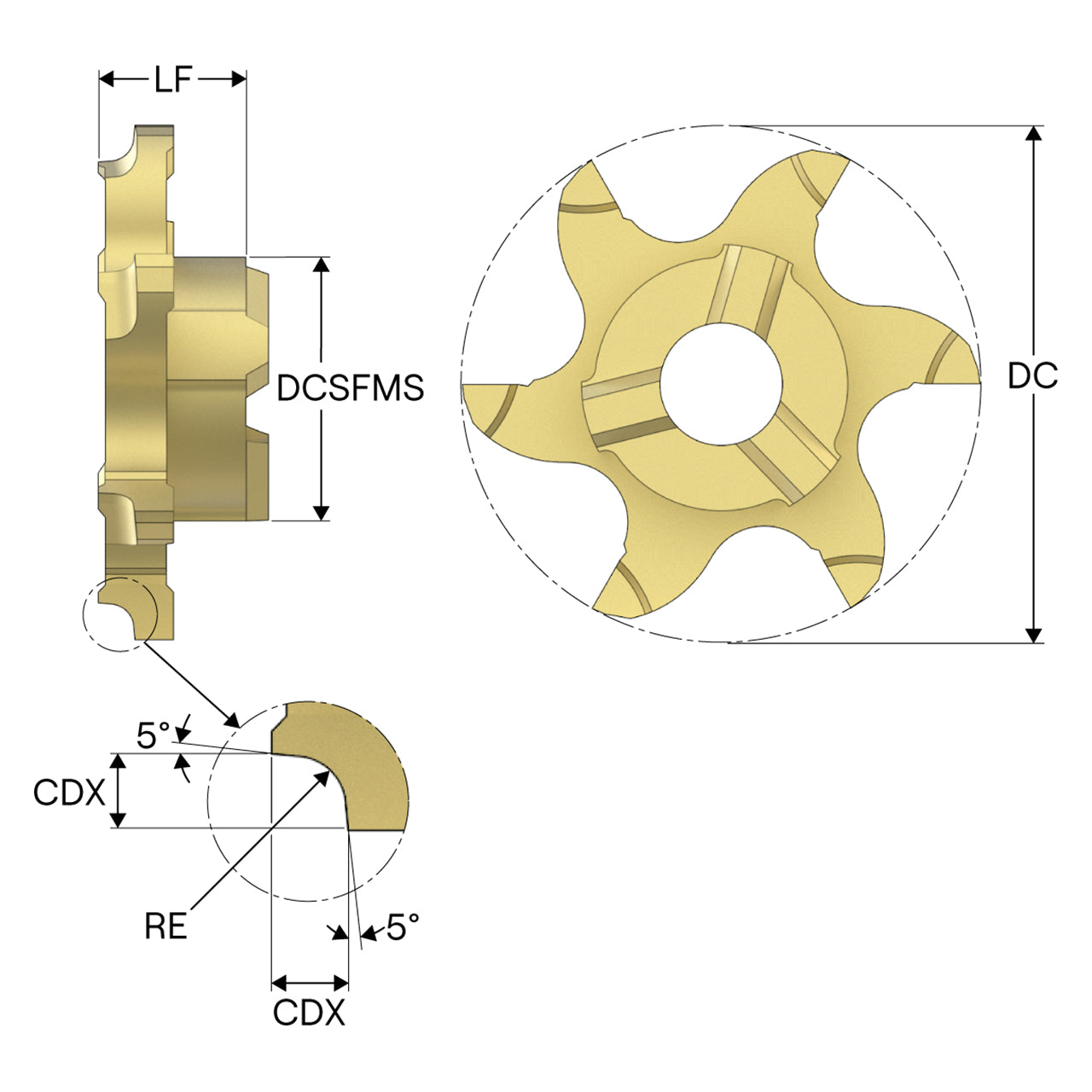

Product Specifications
| Manufacturer Part Number | 10270937 |
| Cutting Diameter (mm) | 21.70mm |
| Contact Surface Diameter Machine Side (mm) | 12.00mm |
| Insert Rake Angle (Degree) | 5.00 Degree |
| Insert Rake Angle (Degree) | 5.0 |
| Grade Type | Carbide PVD |
| Cutting Direction | Right Hand |
| Functional Length (mm) | 6.05mm |
| Corner Radius (mm) | 2.00mm |
| Peripheral Effective Cutting Edge Count | 6 |
| Product Series | R335.14 |

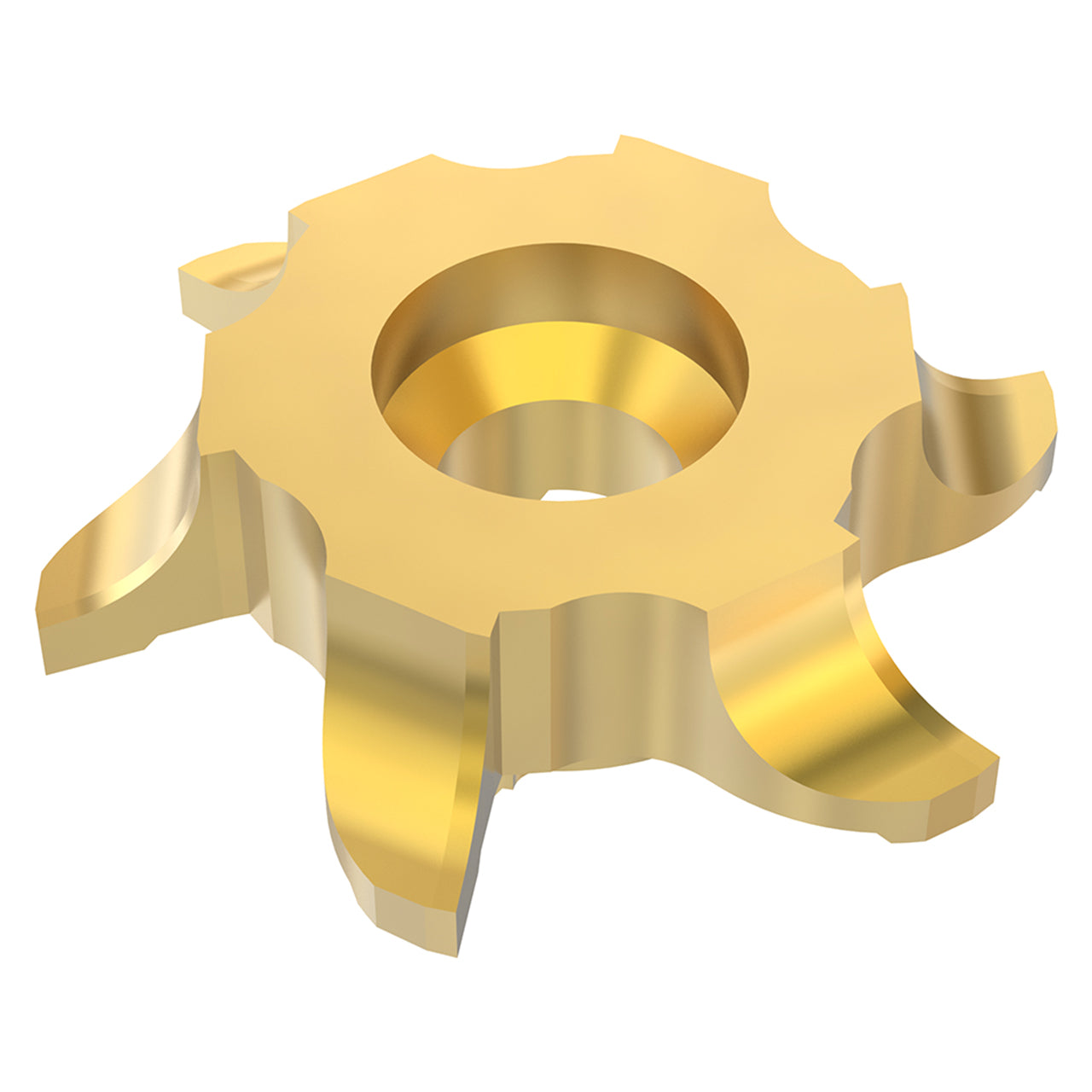

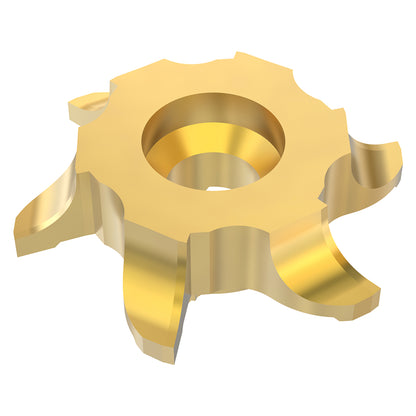

| Product Type | Corner Rounding Milling Tip Insert |
