Seco Tools

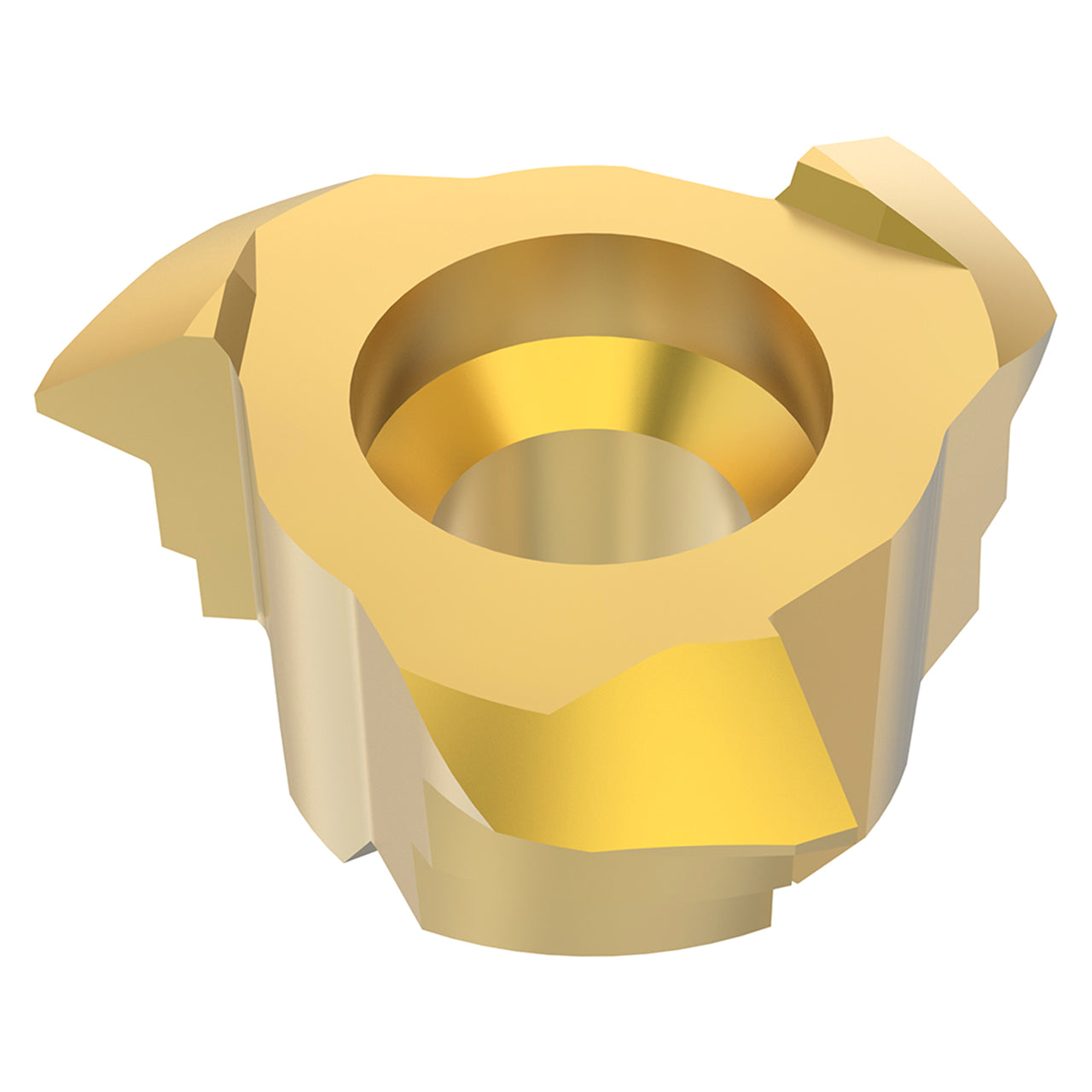

Seco Tools 10269177 | R335.14-097MNF100.06Z3 0.382" Diameter x 0.039" Thread Pitch Minimum x 0.004" Spot Chamfer x 0.142" Functional Length PVD Coated Carbide F32M Grade R335.14 Thread Mill Milling Tip Insert

Seco Tools 10269177 | R335.14-097MNF100.06Z3 0.382" Diameter x 0.039" Thread Pitch Minimum x 0.004" Spot Chamfer x 0.142" Functional Length PVD Coated Carbide F32M Grade R335.14 Thread Mill Milling Tip Insert

SKU: 23346852

$97.63 USD
$97.63 USD $97.63 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

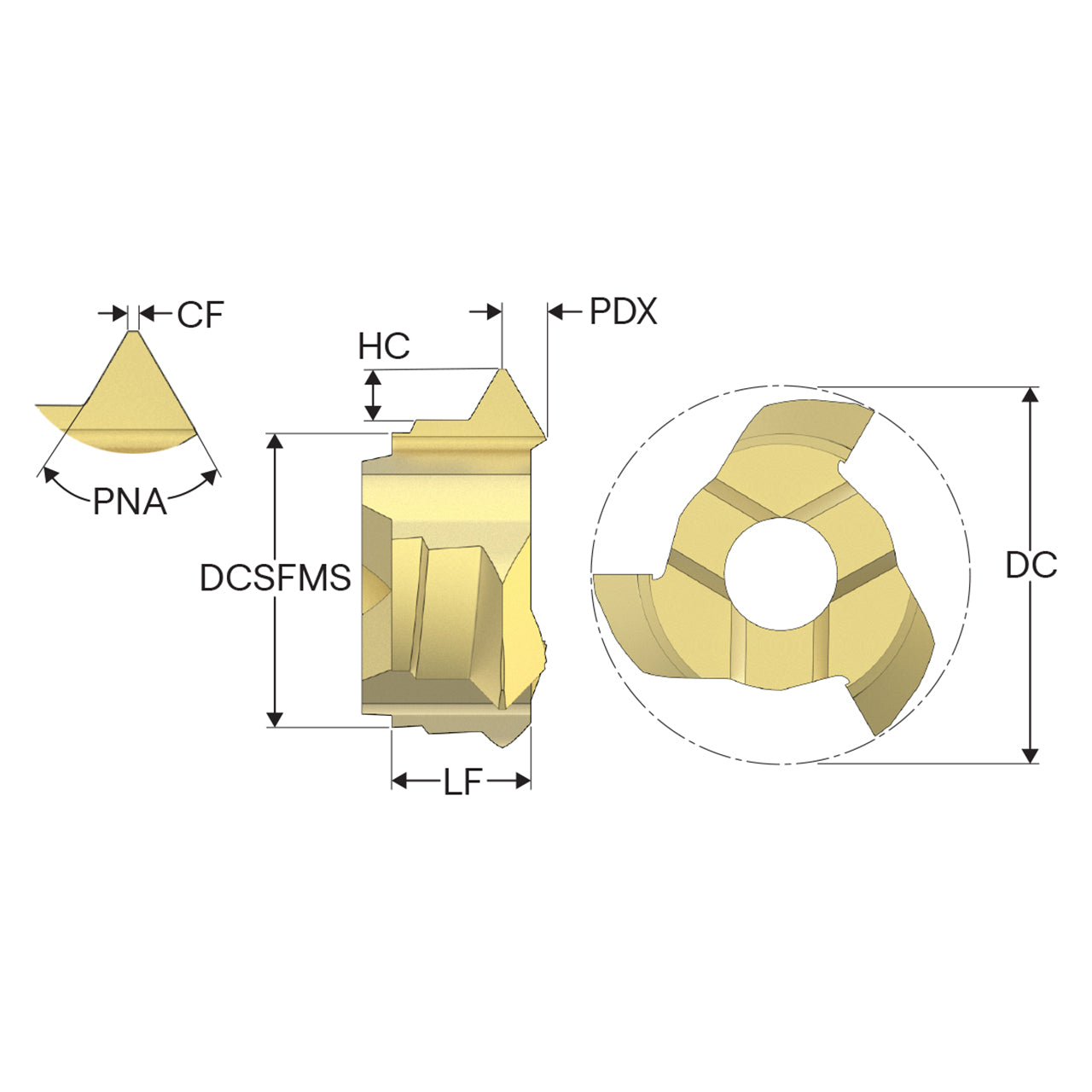

Product Specifications
Manufacturer Part Number 10269177
Cutting Diameter (Decimal Inch) 0.382"
Contact Surface Diameter Machine Side (Decimal Inch) 0.236"
Grade Type Carbide PVD
Functional Length (Decimal Inch) 0.142"
Thread Form Type ISO
Thread Pitch (Decimal Inch) 0.039"
Thread Type Internal
Product Series R335.14
Product Type Thread Mill Milling Tip Insert
