Seco Tools

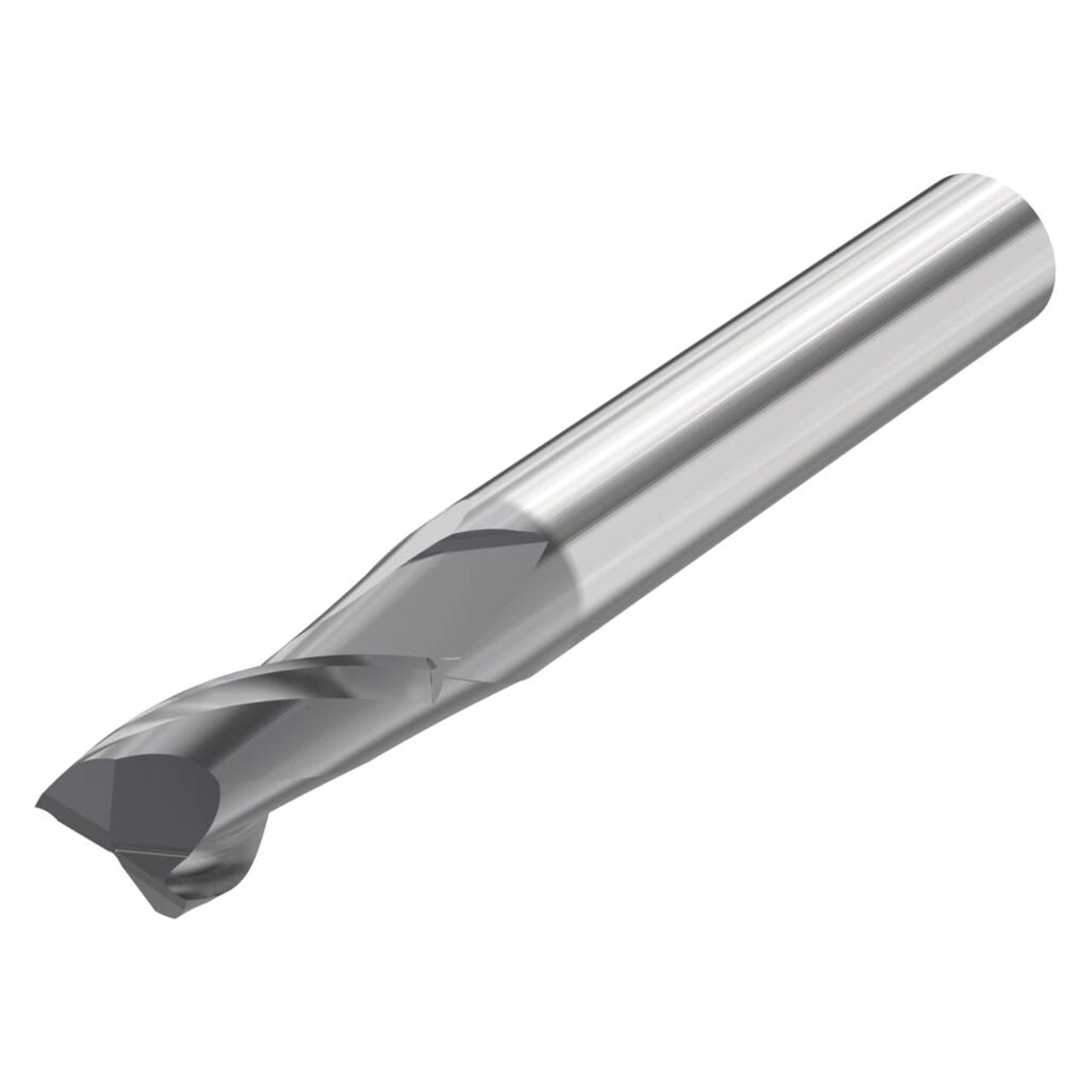

Seco Tools 10269106 | C5121-100D2S.0Z2 10.00mm Cutting Diameter x 10.00mm Shank x 22.00mm Depth of Cut x 72.00mm OAL x 30 Degree Helix Angle 2 Cutting Edge SIRON-A Coated Cylindrical C5121 Square End Mill

Seco Tools 10269106 | C5121-100D2S.0Z2 10.00mm Cutting Diameter x 10.00mm Shank x 22.00mm Depth of Cut x 72.00mm OAL x 30 Degree Helix Angle 2 Cutting Edge SIRON-A Coated Cylindrical C5121 Square End Mill

SKU: 25364558

$35.47 USD
$66.50 USD $35.47 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

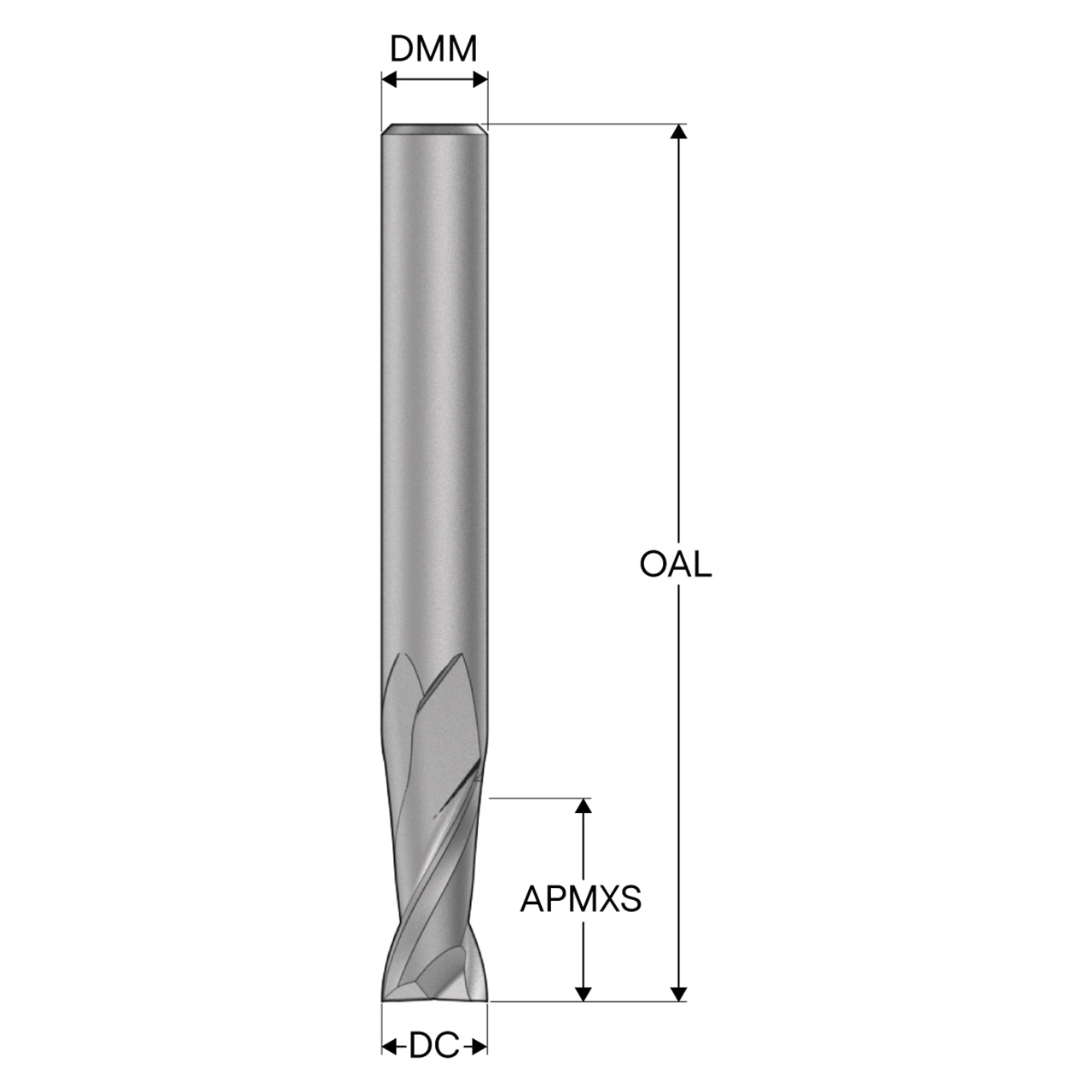

Product Specifications
Manufacturer Part Number 10269106
Depth of Cut Maximum in Feed Direction Side (mm) 22.00mm
Center Cutting Capability 1
Cutting Geometry Type C5121
Coating SIRON-A
Cutting Diameter (mm) 10.00mm
Shank Diameter (mm) 10.00mm
Face Cutting Edge Count 2
Flute Helix Angle (Degree) 30 Degree
Overall Length (mm) 72.00mm
Cutting Edge Count 2
Shank Type Cylindrical
Product Series C5121
Product Type Square End Mill
