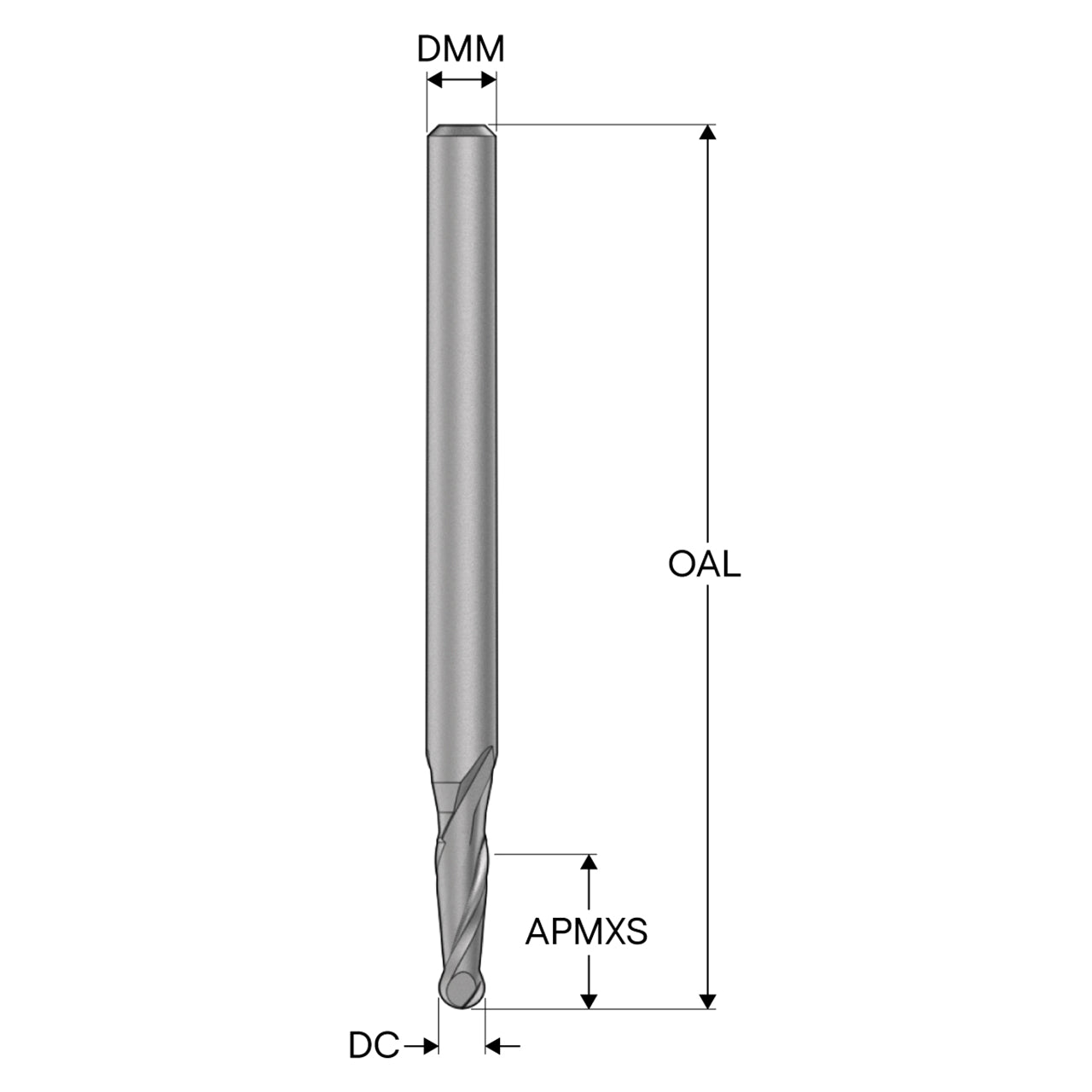

Product Specifications
| Manufacturer Part Number | 10268887 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.250" |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5321 |
| Coating | Uncoated |
| Cutting Diameter (Decimal Inch) | 0.078" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Decimal Inch) | 0.083" |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 1.500" |
| Cutting Edge Count | 2 |
| Corner Radius (Decimal Inch) | 0.039" |
| Shank Type | Cylindrical |
| Product Series | C5321 |

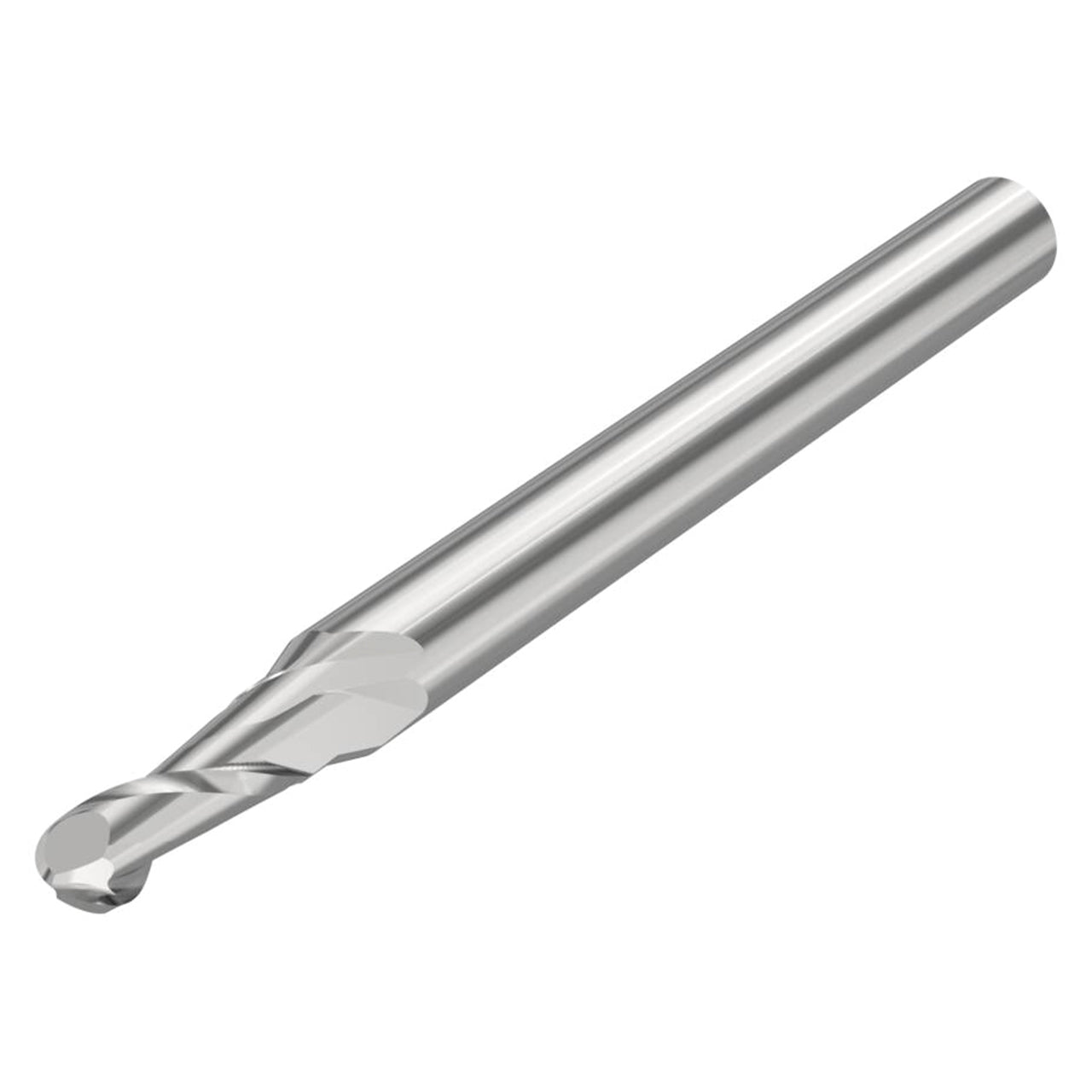

| Product Type | Ball End Mill |
