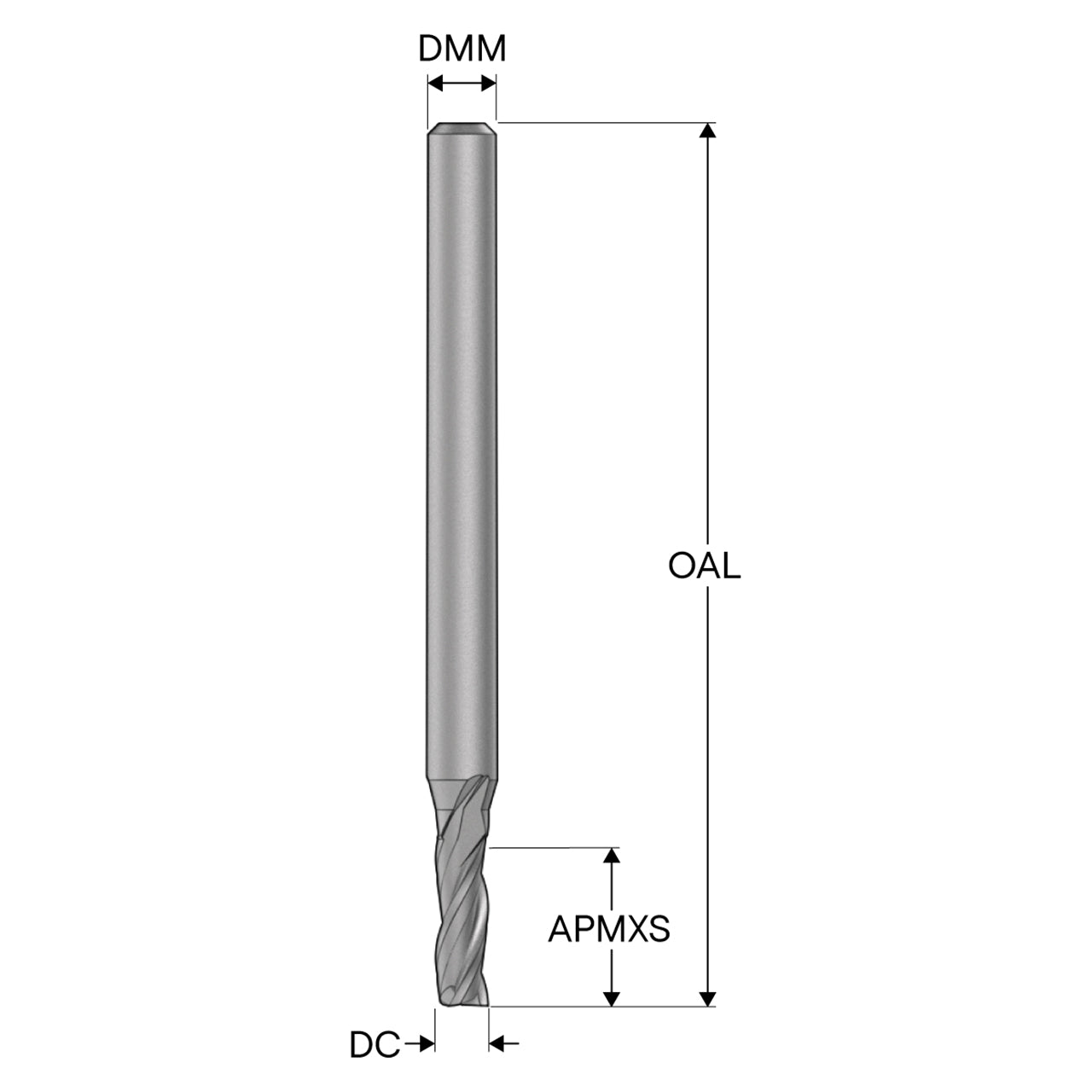

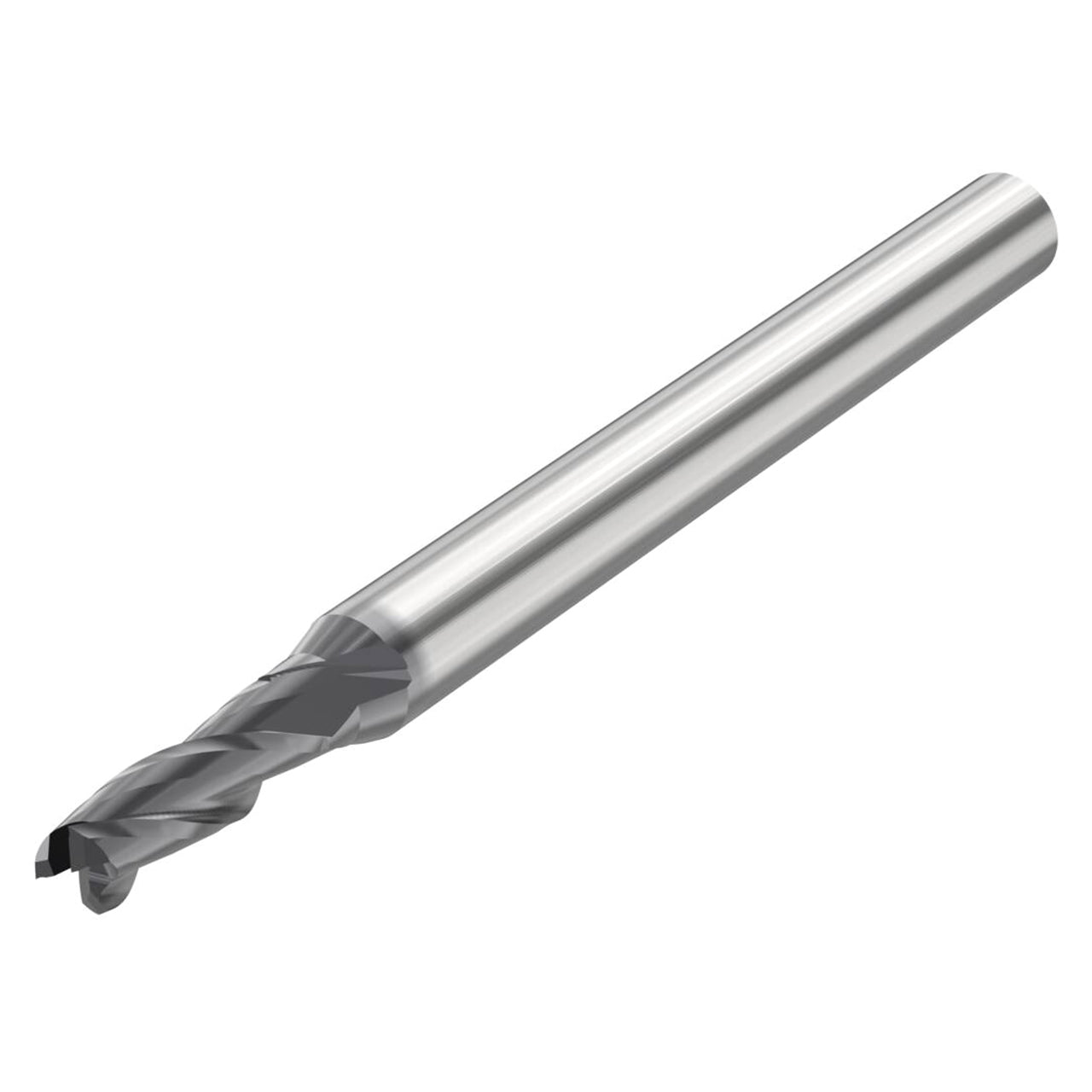

Product Specifications
| Manufacturer Part Number | 10268774 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.188" |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5131 |
| Coating | SIRON-A |
| Cutting Diameter (Decimal Inch) | 0.078" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Decimal Inch) | 0.083" |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (Decimal Inch) | 0.188" |
| Overall Length (Decimal Inch) | 1.500" |
| Cutting Edge Count | 3 |
| Shank Type | Cylindrical |
| Product Series | C5131 |
| Product Type | Square End Mill |
