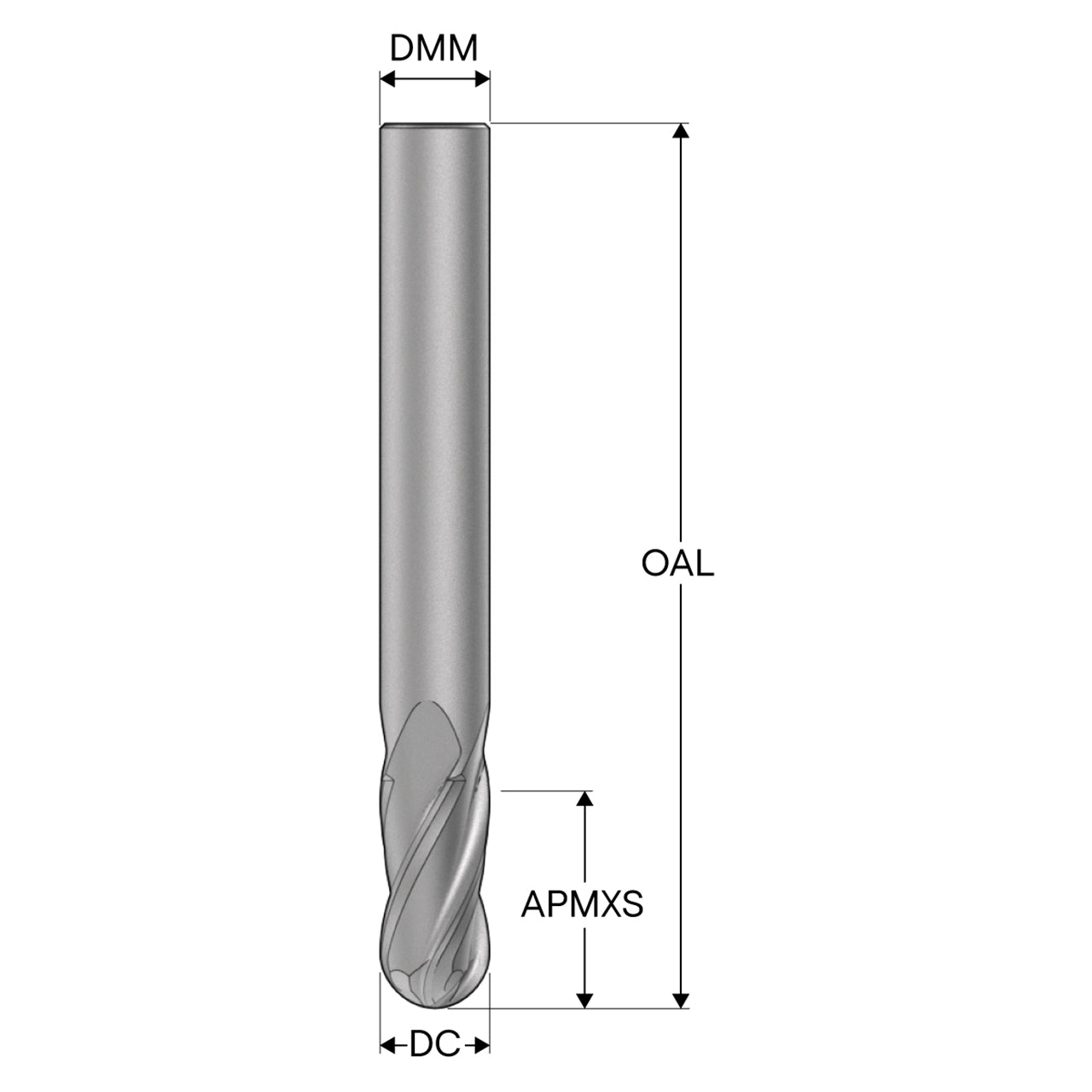

Product Specifications
| Manufacturer Part Number | 10268589 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 60.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5341 |
| Coating | SIRON-A |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Overall Length (mm) | 125.00mm |
| Cutting Edge Count | 4 |
| Corner Radius (mm) | 10.00mm |
| Shank Type | Cylindrical |
| Product Series | C5341 |

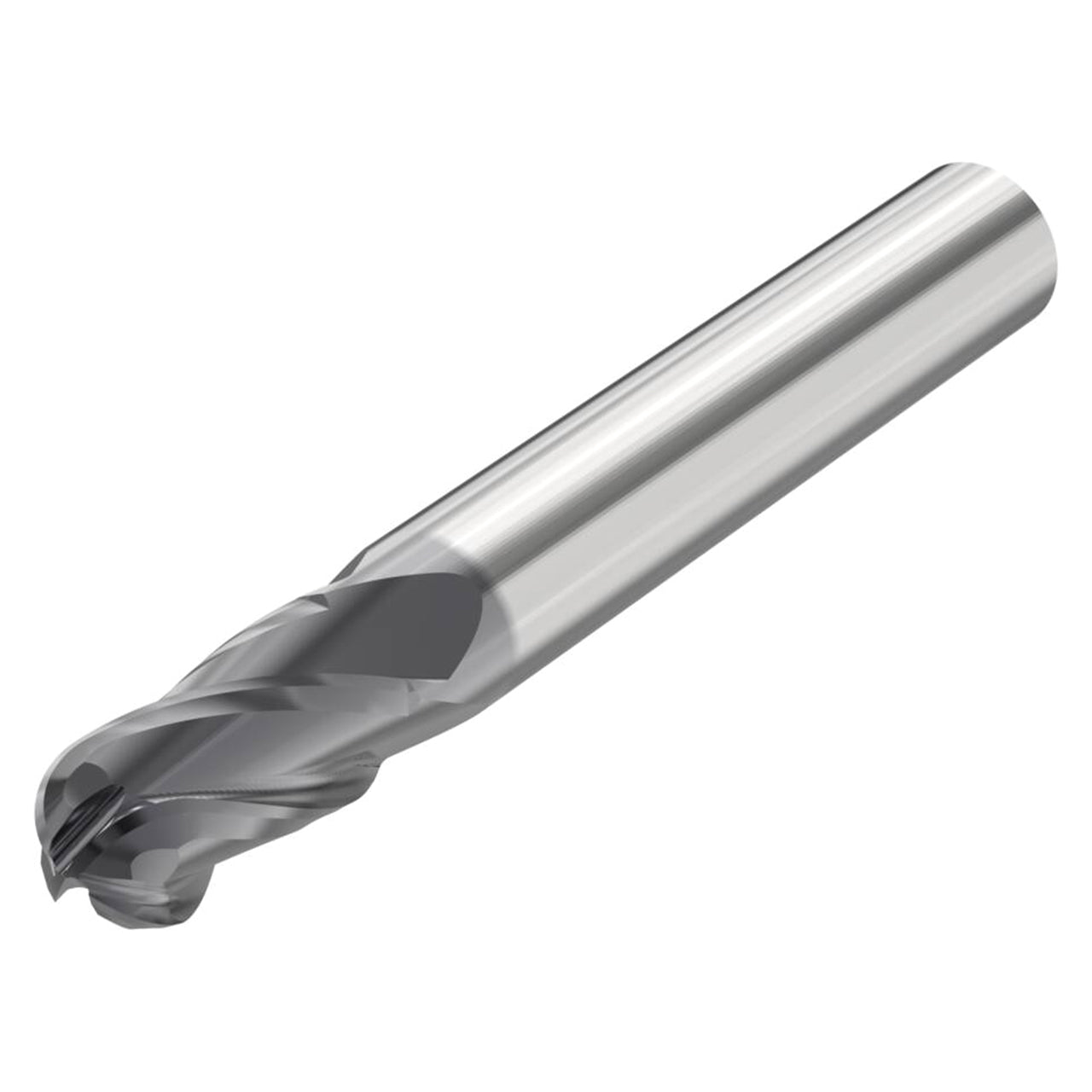

| Product Type | Ball End Mill |
