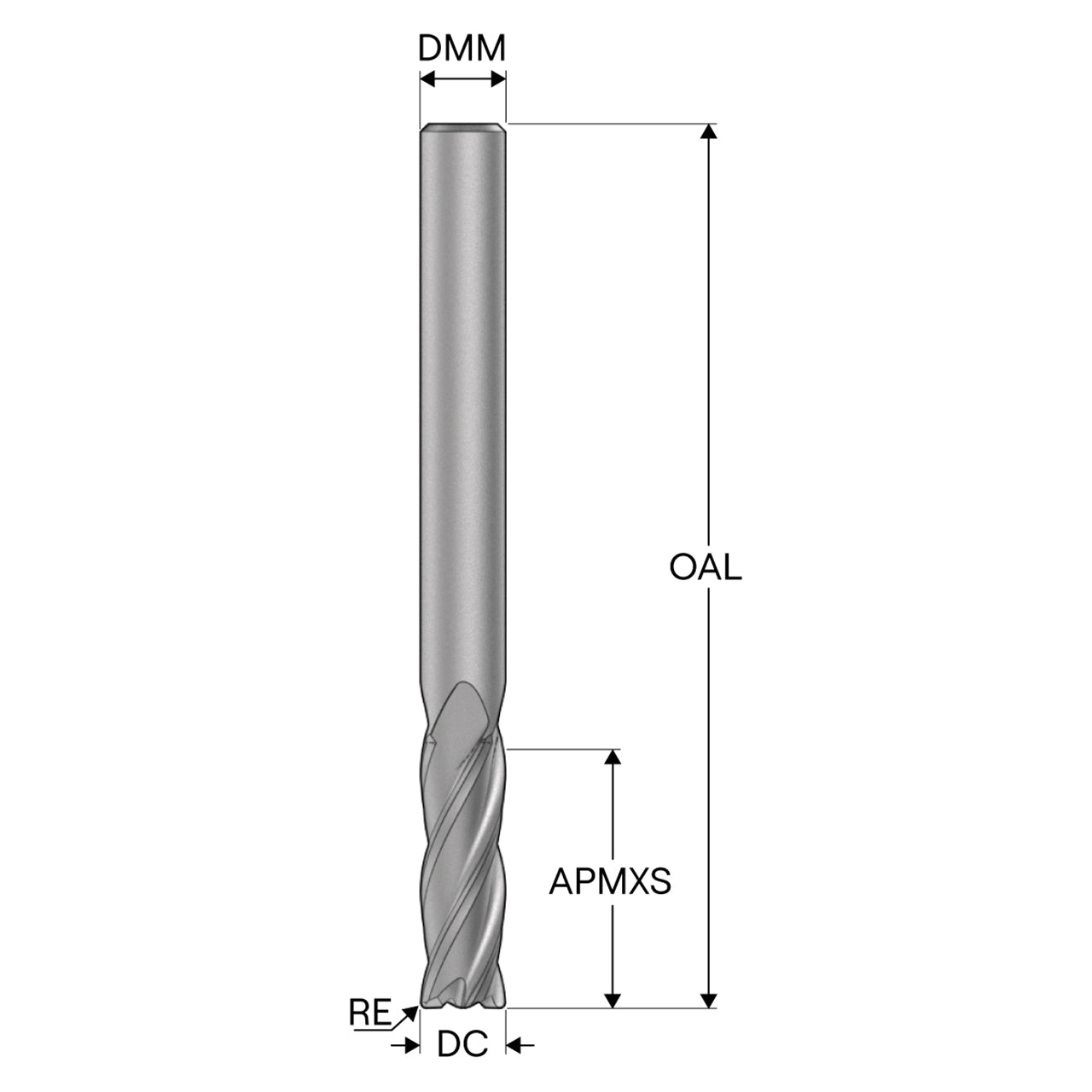

Product Specifications
| Manufacturer Part Number | 10268393 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 1.250" |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5141 |
| Coating | SIRON-A |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Overall Length (Decimal Inch) | 3.500" |
| Cutting Edge Count | 4 |
| Corner Radius (Decimal Inch) | 0.125" |
| Shank Type | Cylindrical |
| Product Series | C5141 |

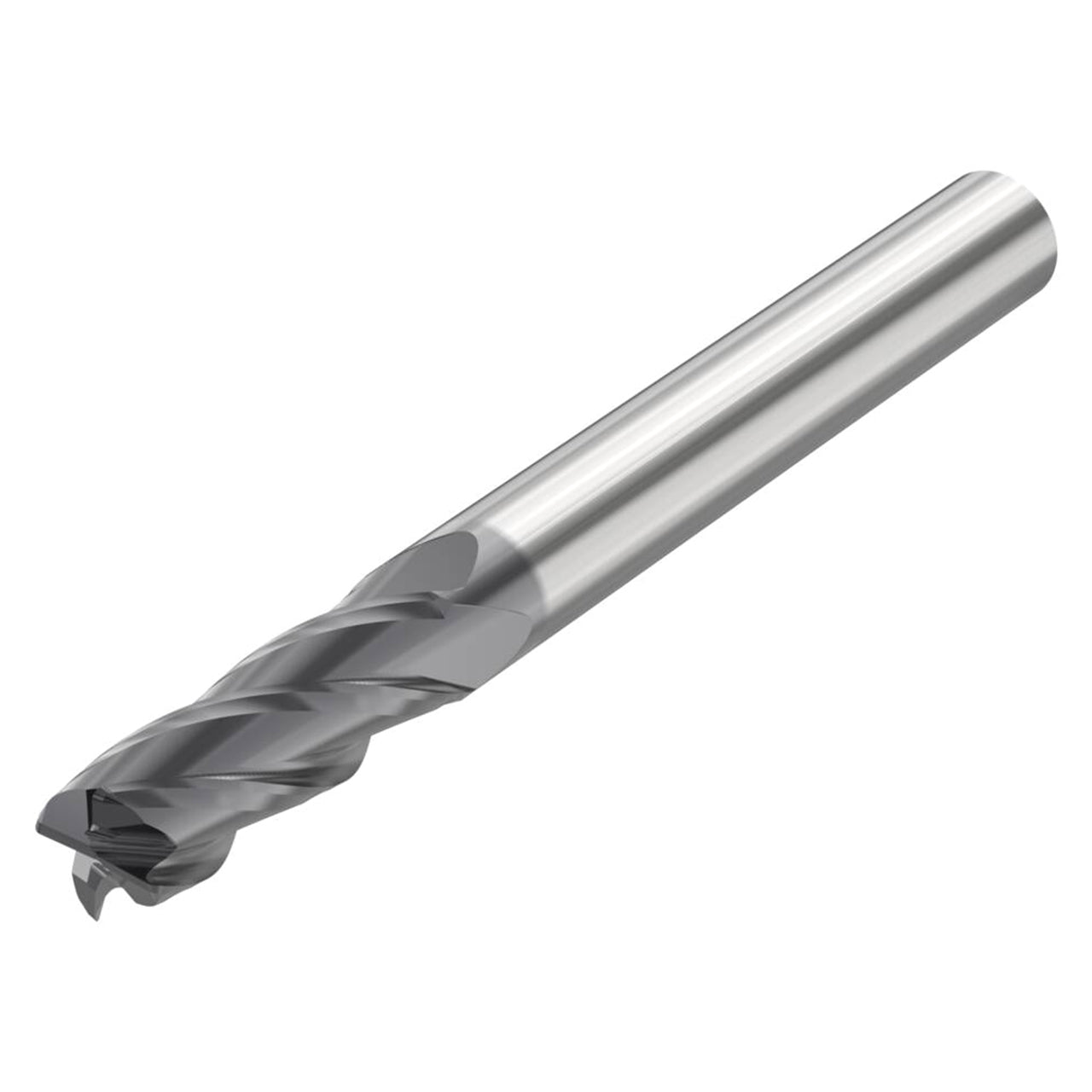

| Product Type | Corner Radius End Mill |
