Product Specifications
| Manufacturer Part Number | 10268322 |

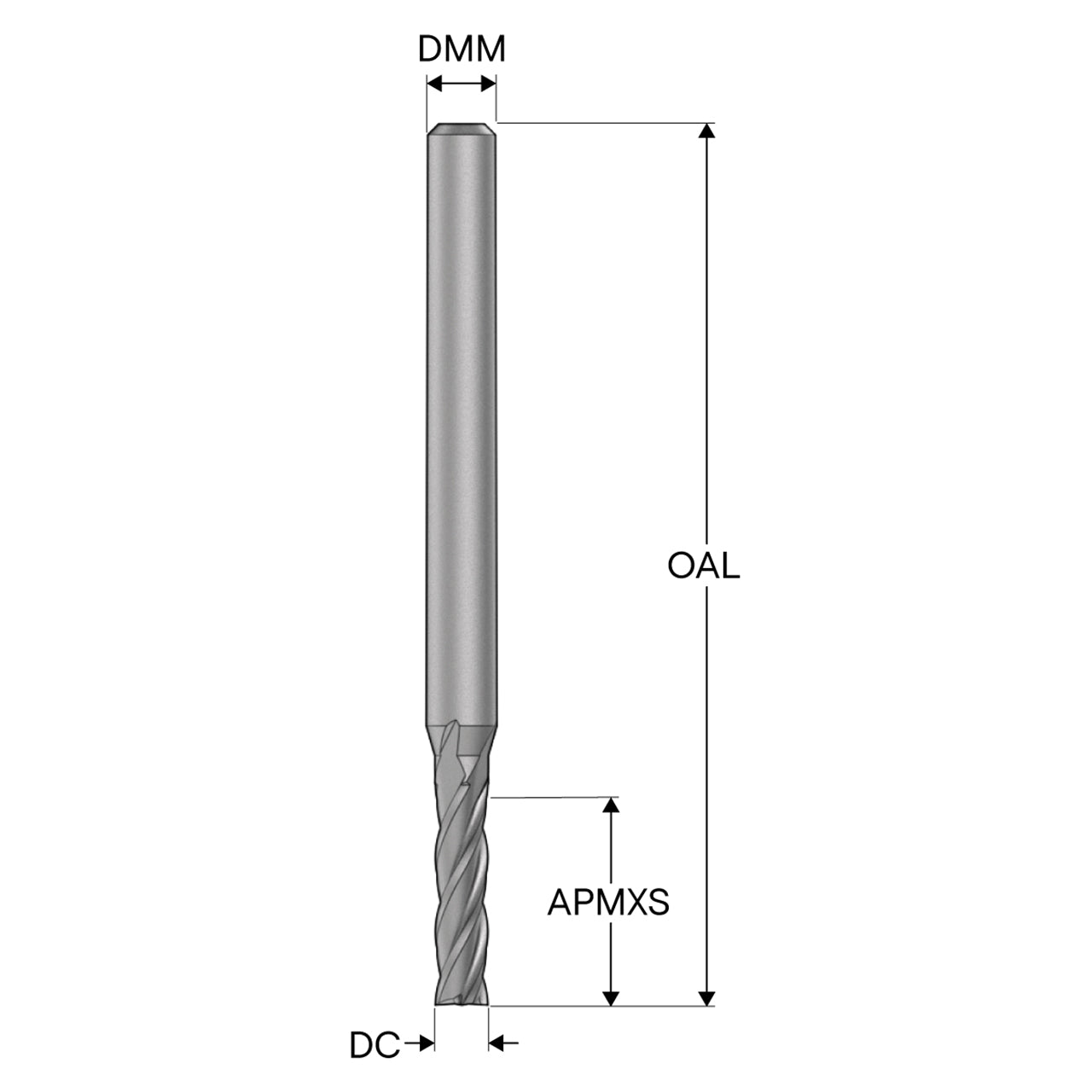

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 1.000" |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5141 |
| Coating | SIRON-A |
| Cutting Diameter (Decimal Inch) | 0.406" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Neck Diameter (Decimal Inch) | 0.411" |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 2.750" |
| Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Product Series | C5141 |

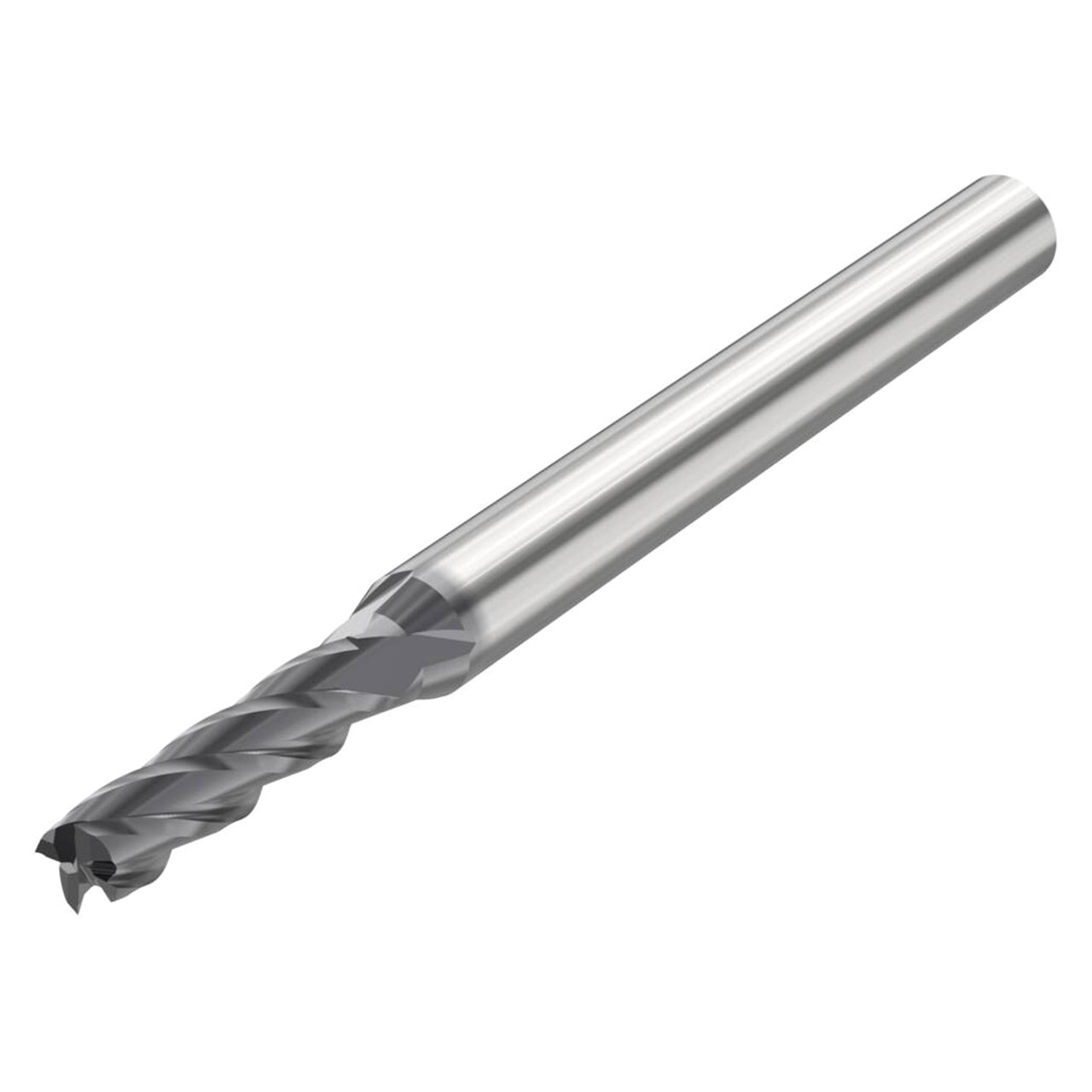

| Product Type | Square End Mill |
