Product Specifications
| Manufacturer Part Number | 10260248 |
| Depth of Cut Maximum 1 (Decimal Inch) | 0.157" |
| Depth of Cut Maximum 2 (Decimal Inch) | 0.059" |
| Depth of Cut Maximum 3 (Decimal Inch) | 0.295" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Cutting Diameter 1 (Decimal Inch) | 6.000" |
| Cutting Diameter 2 (Decimal Inch) | 5.843" |
| Cutting Diameter 3 (Decimal Inch) | 5.785" |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter Maximum 3 (Decimal Inch) | 6.407" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle 1 (Degree) | 40.00 Degree |
| Tool Cutting Edge Angle 2 (Degree) | 20.00 Degree |
| Functional Length 1 (Decimal Inch) | 2.480" |
| Functional Length 2 (Decimal Inch) | 2.486" |
| Rotational Speed Maximum | 6500 rpm |
| Shank Type | Arbor |
| Uncut Thickness (Decimal Inch) | 0.012" |
| Peripheral Effective Cutting Edge Count | 12 |
| Product Series | R220.43 |

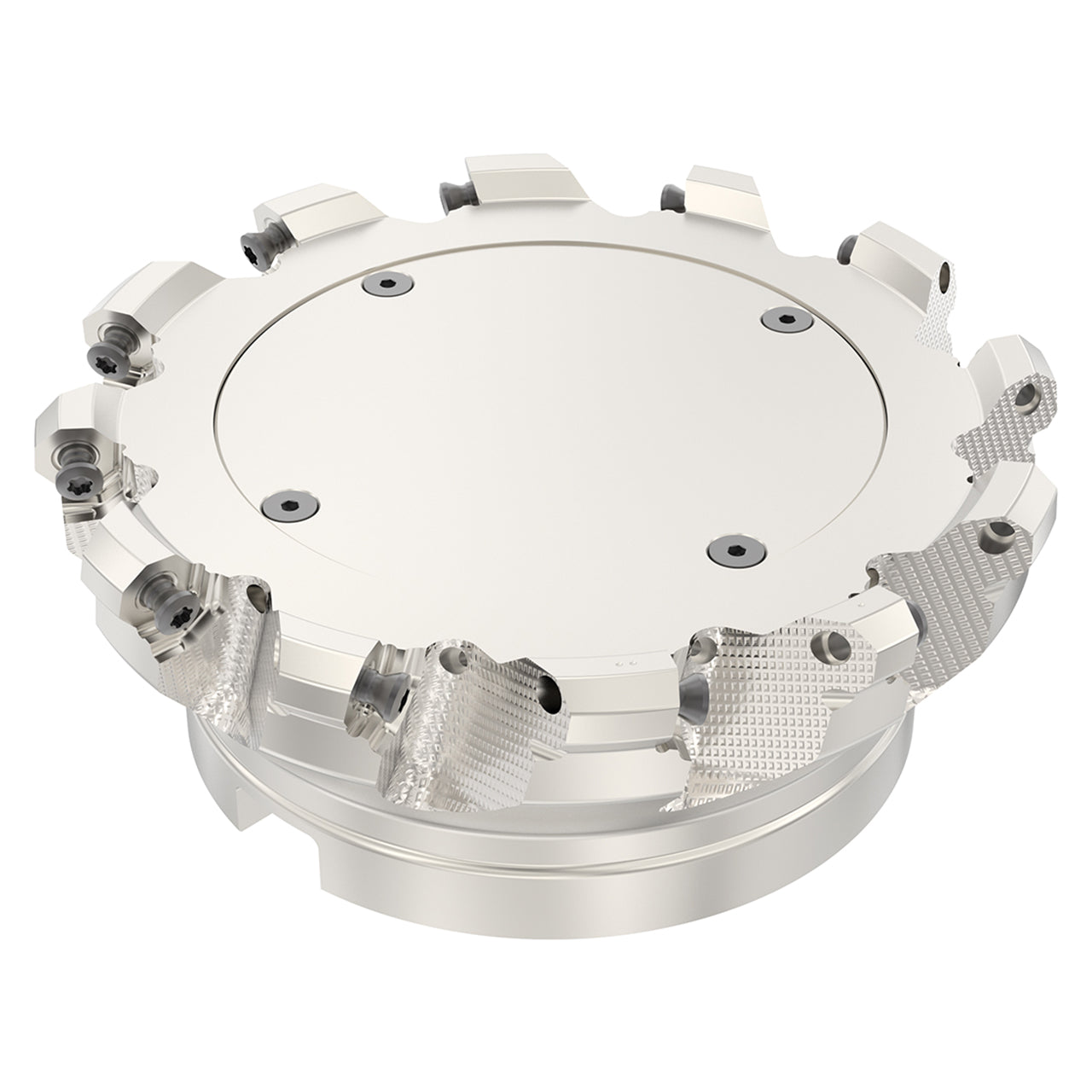

| Product Type | Indexable Chamfer & Angle Face Mill |
