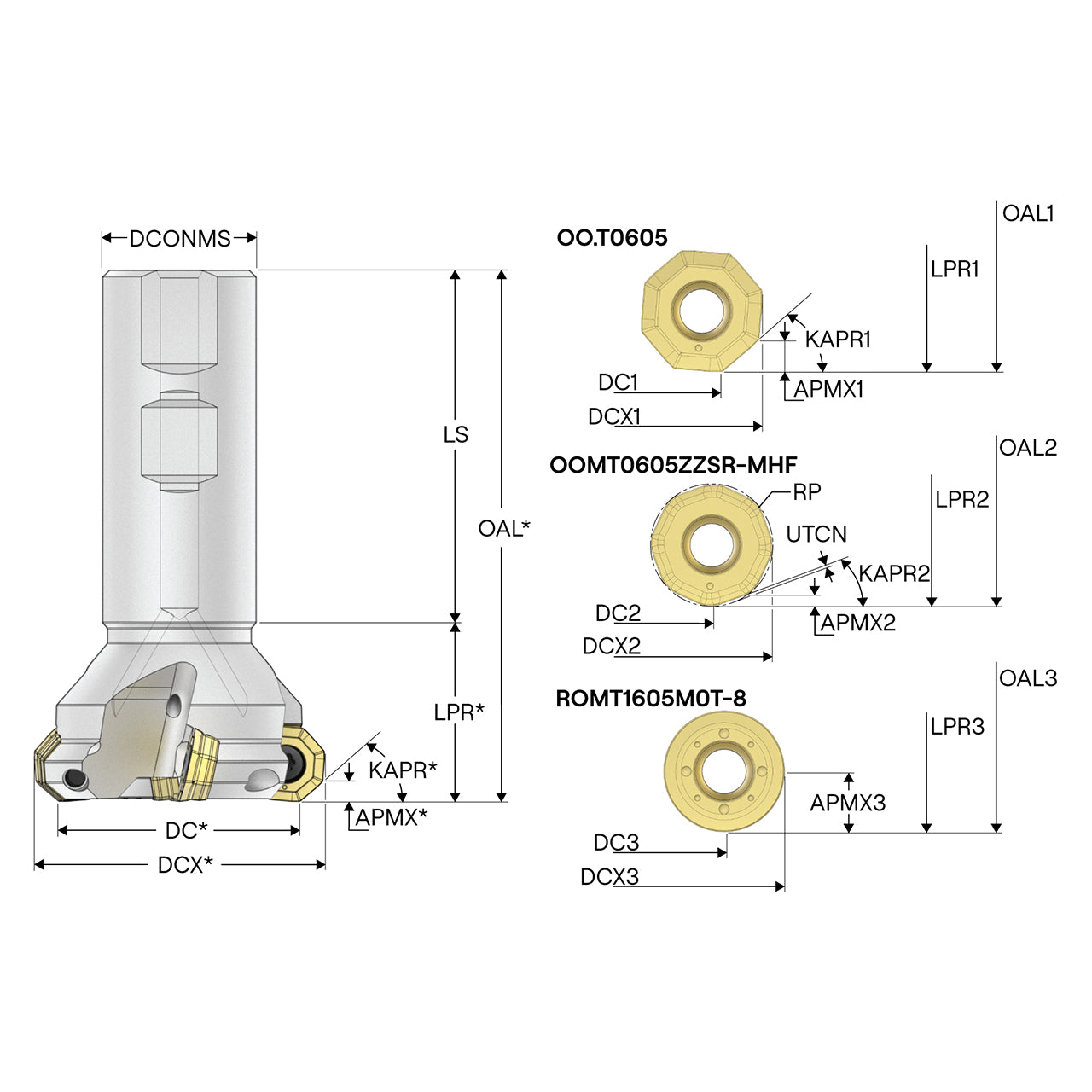

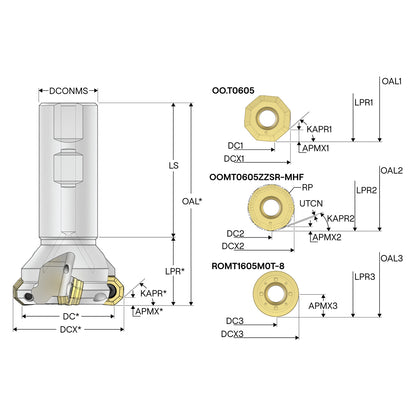

Product Specifications
| Manufacturer Part Number | 10260220 |
| Depth of Cut Maximum 1 (mm) | 4.00mm |
| Depth of Cut Maximum 2 (mm) | 1.50mm |
| Depth of Cut Maximum 3 (mm) | 7.50mm |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Cutting Diameter 1 (mm) | 40.00mm |
| Cutting Diameter 2 (mm) | 36.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Cutting Diameter Maximum 2 (mm) | 50.70mm |
| Cutting Diameter Maximum 3 (mm) | 50.35mm |
| Tool Cutting Edge Angle 1 (Degree) | 40.00 Degree |
| Tool Cutting Edge Angle 2 (Degree) | 20.00 Degree |
| Shank Length (mm) | 73.00mm |
| Rotational Speed Maximum | 13200 rpm |
| Shank Type | SecoWeldon |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R217.43 |

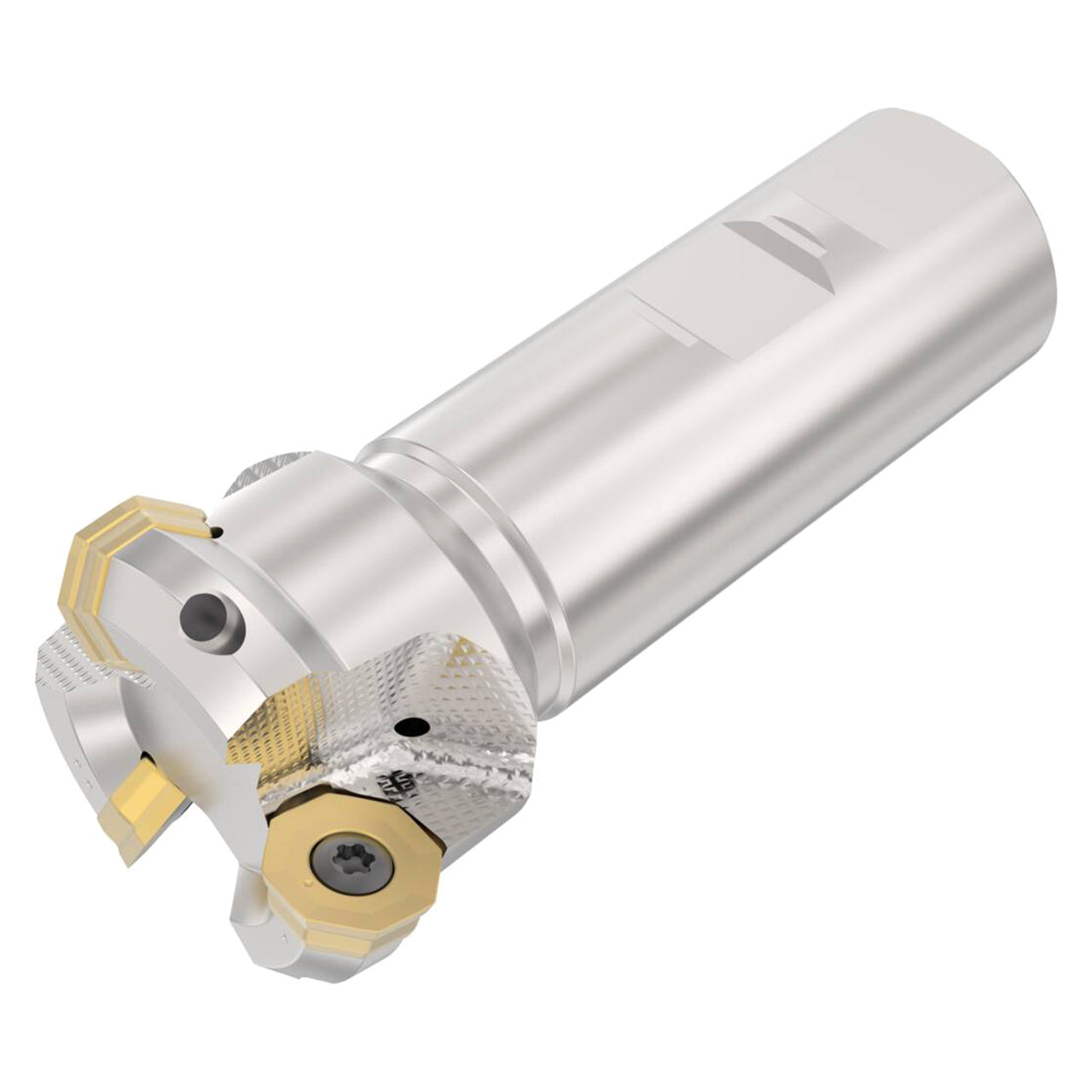

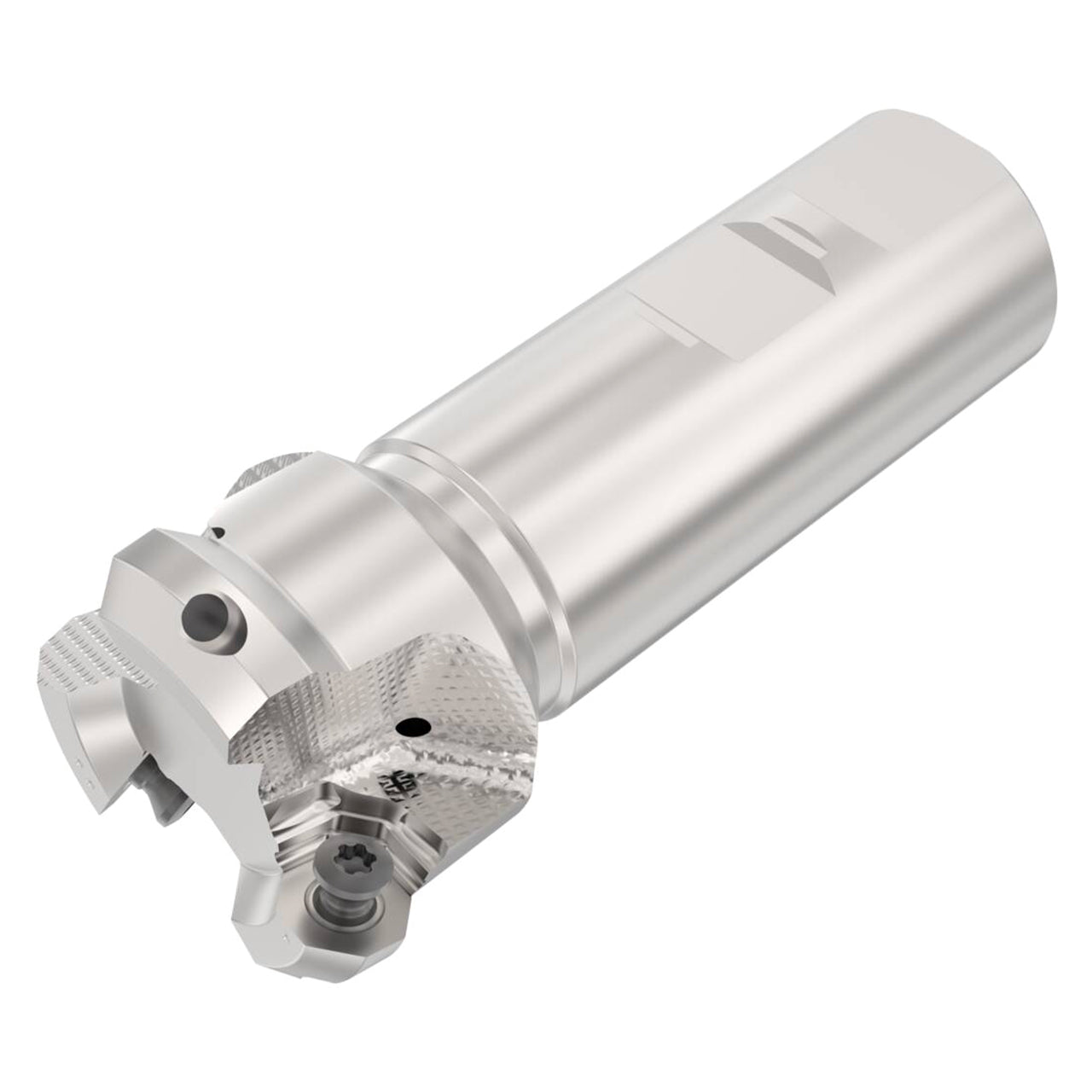

| Product Type | Indexable Chamfer & Angle Face Mill |
