Seco Tools

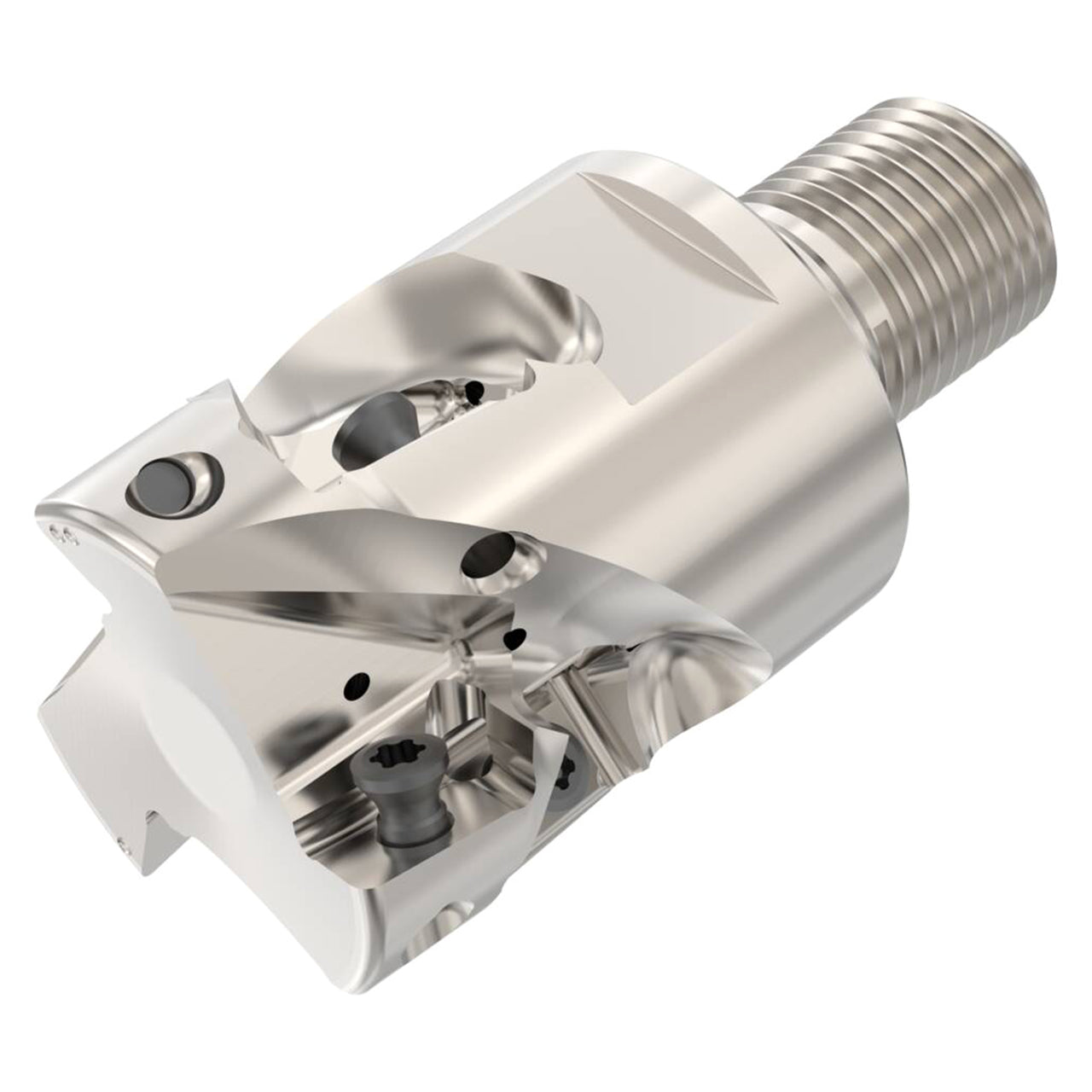

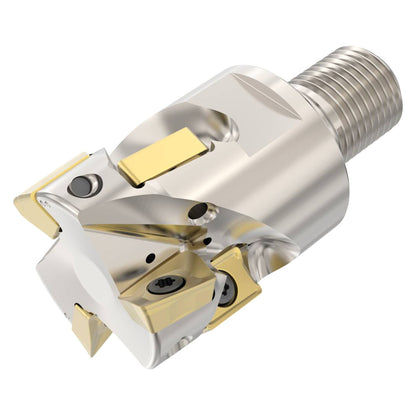

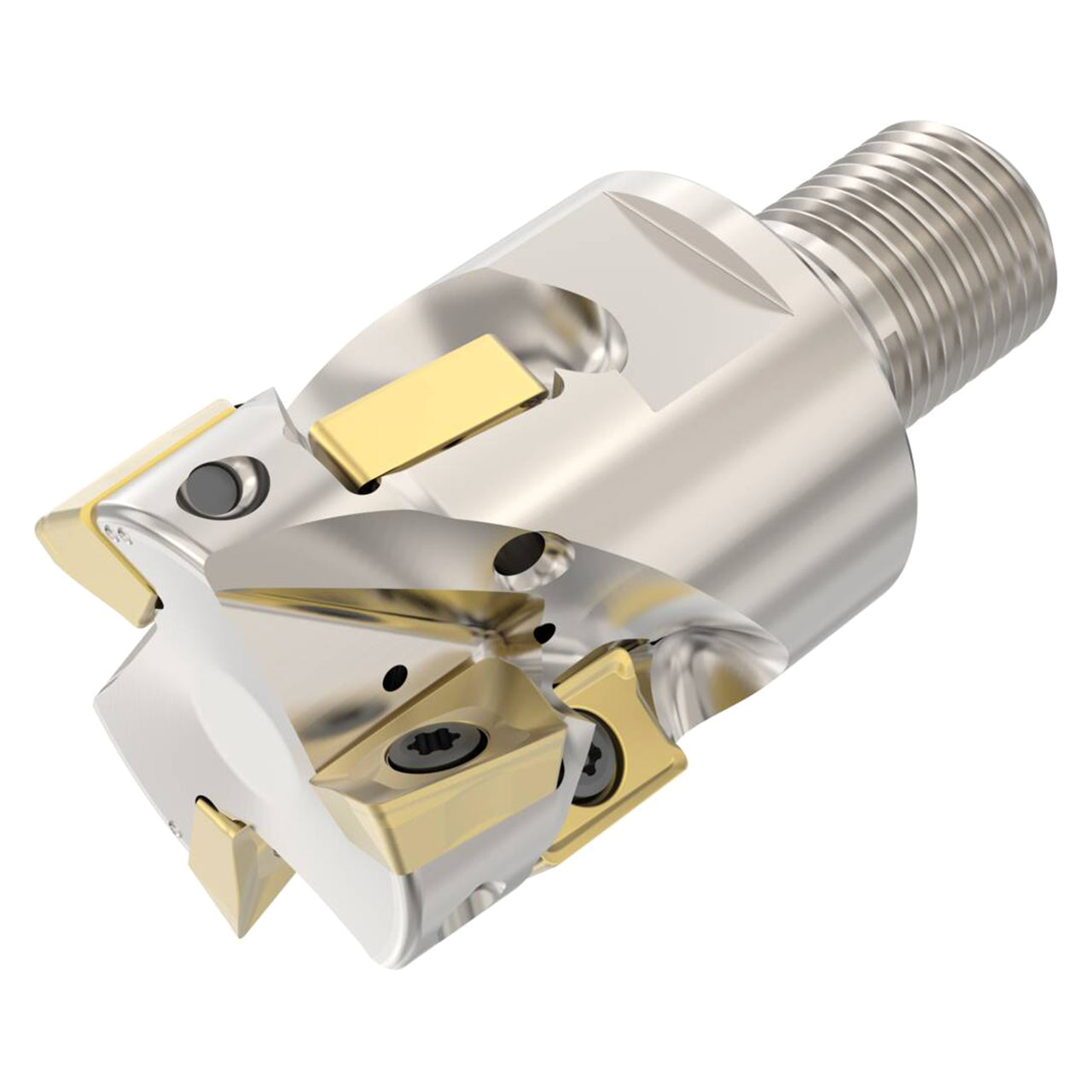

Seco Tools 10255163 | R217.42-2040.RE-041-LNXO.4A 40.00mm Cutting Diameter x 41.00mm Depth of Cut Maximum x 61.00mm Functional Length x 8.00 Degree Rake Axial Angle 4 Cutting Edge 15200 rpm Rotational Speed R217.42 Indexable Square-Shoulder Face Mill

Seco Tools 10255163 | R217.42-2040.RE-041-LNXO.4A 40.00mm Cutting Diameter x 41.00mm Depth of Cut Maximum x 61.00mm Functional Length x 8.00 Degree Rake Axial Angle 4 Cutting Edge 15200 rpm Rotational Speed R217.42 Indexable Square-Shoulder Face Mill

SKU: 23346597

$1,500.00 USD
$1,500.00 USD $1,500.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

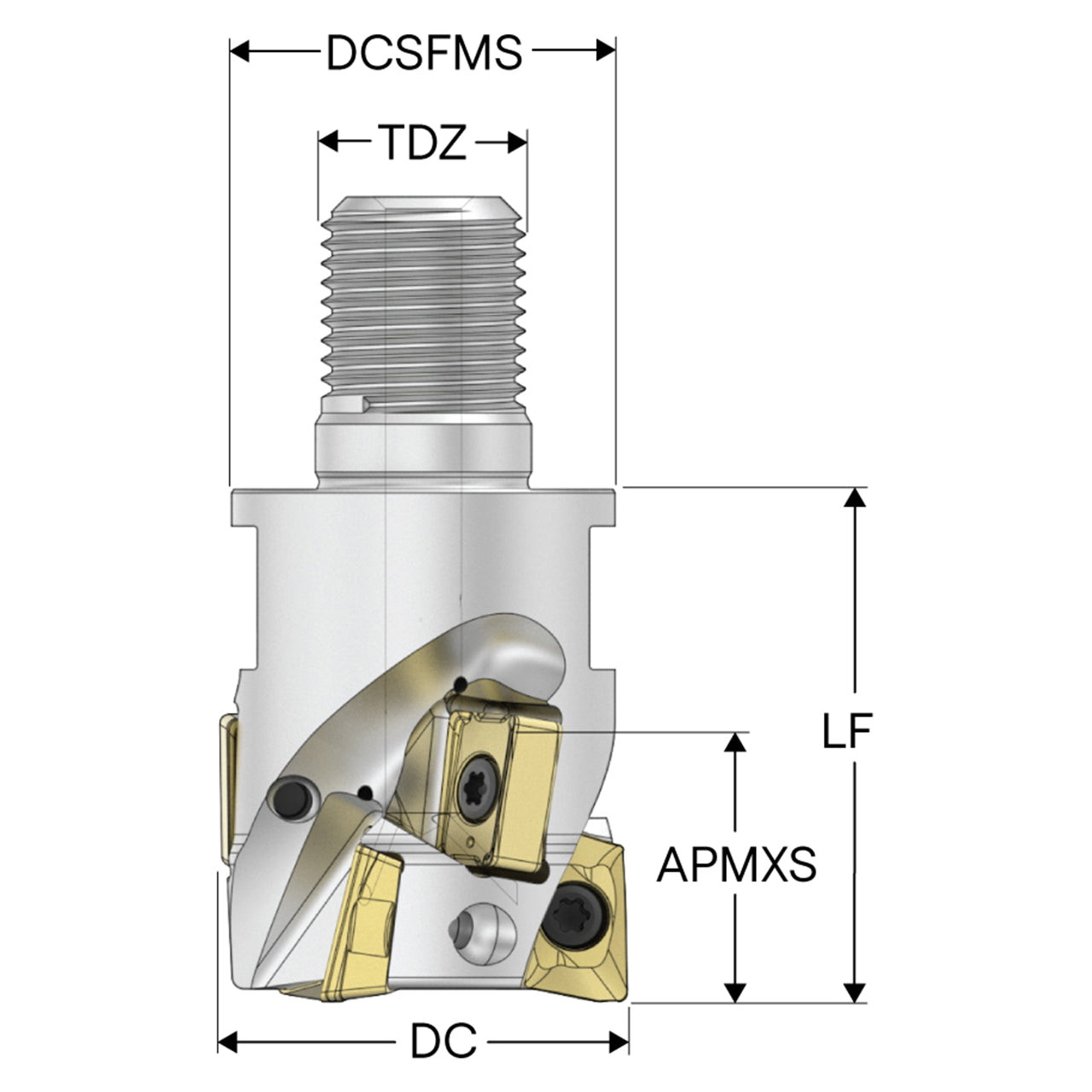

Product Specifications
Manufacturer Part Number 10255163
Depth of Cut Maximum in Feed Direction Side (mm) 41.00mm
Cutting Pitch Density Close
Coolant Supply Property 1
Cutting Diameter (mm) 40.00mm
Contact Surface Diameter Machine Side (mm) 36.50mm
Tool Cutting Edge Angle in Feed Direction Side (Degree) 90.00 Degree
Functional Length (mm) 61.00mm
Number of Flutes 4
Overall Length (mm) 88.00mm
Rotational Speed Maximum 15200 rpm
Shank Type Combimaster
Peripheral Effective Cutting Edge Count 4
Product Series R217.42
Product Type Indexable Square-Shoulder Face Mill
