Product Specifications
| Manufacturer Part Number | 10255162 |

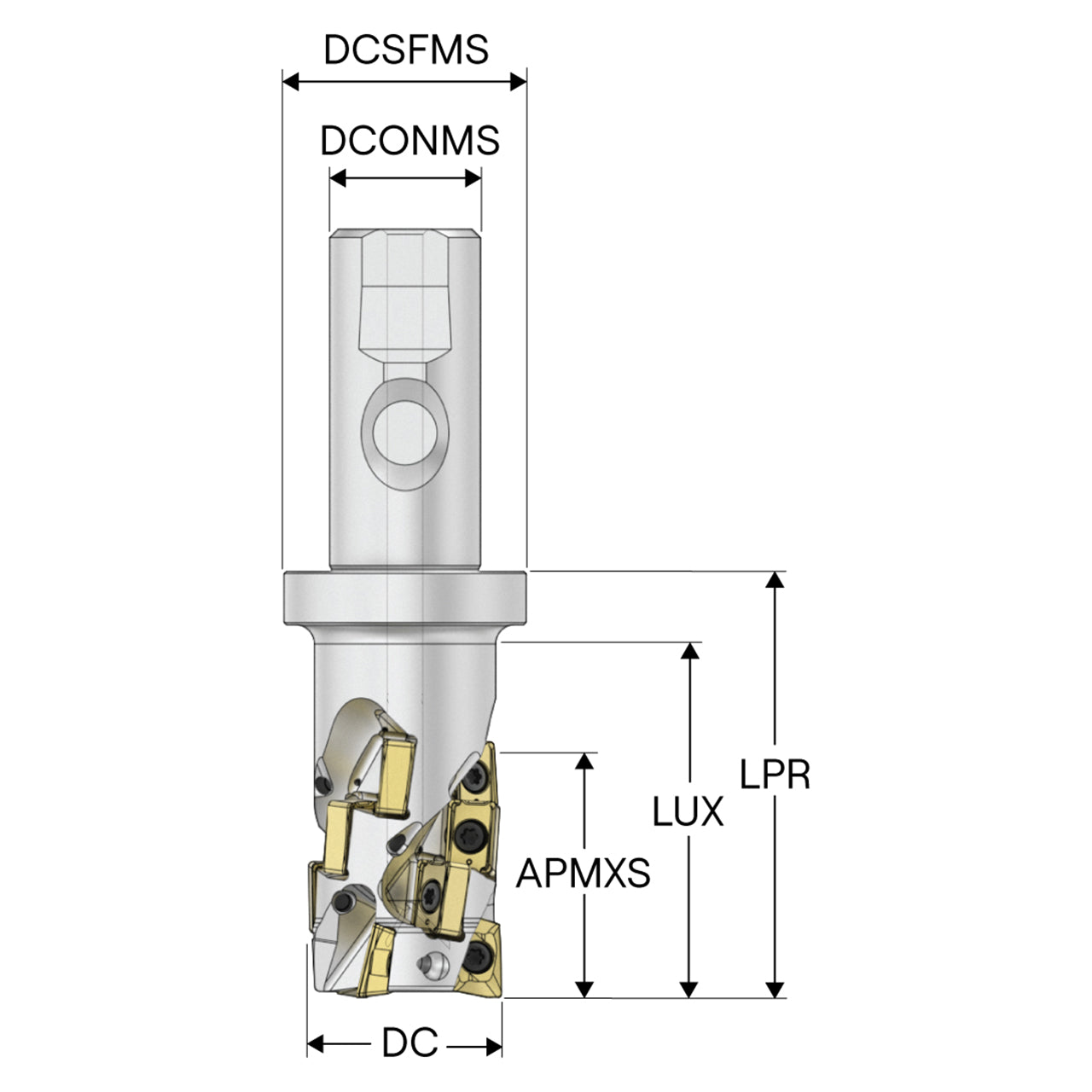

| Depth of Cut Maximum in Feed Direction Side (mm) | 31.00mm |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Protruding Length (mm) | 60.00mm |
| Shank Length (mm) | 56.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 116.00mm |
| Rotational Speed Maximum | 17000 rpm |
| Shank Type | SecoWeldon |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R217.42 |

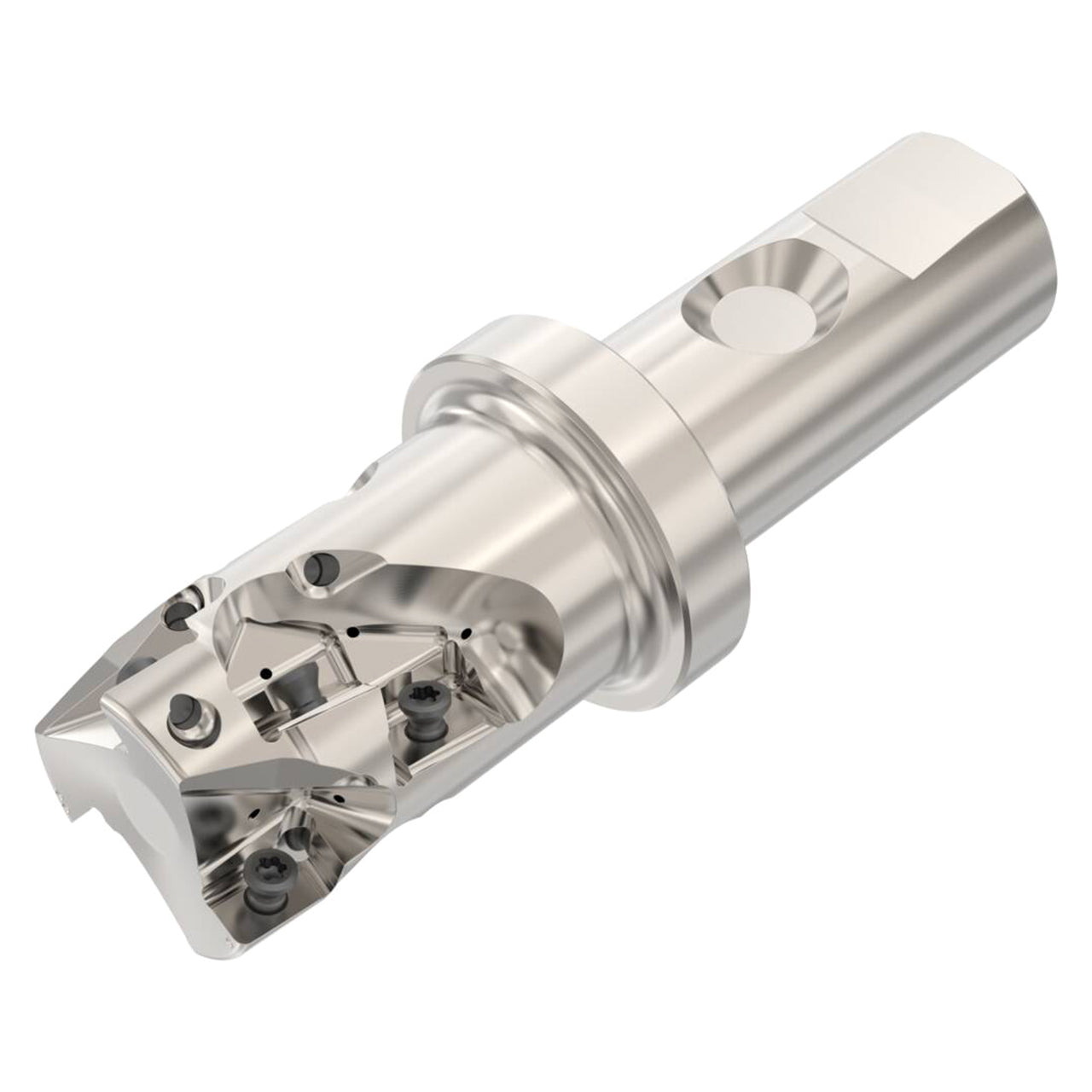

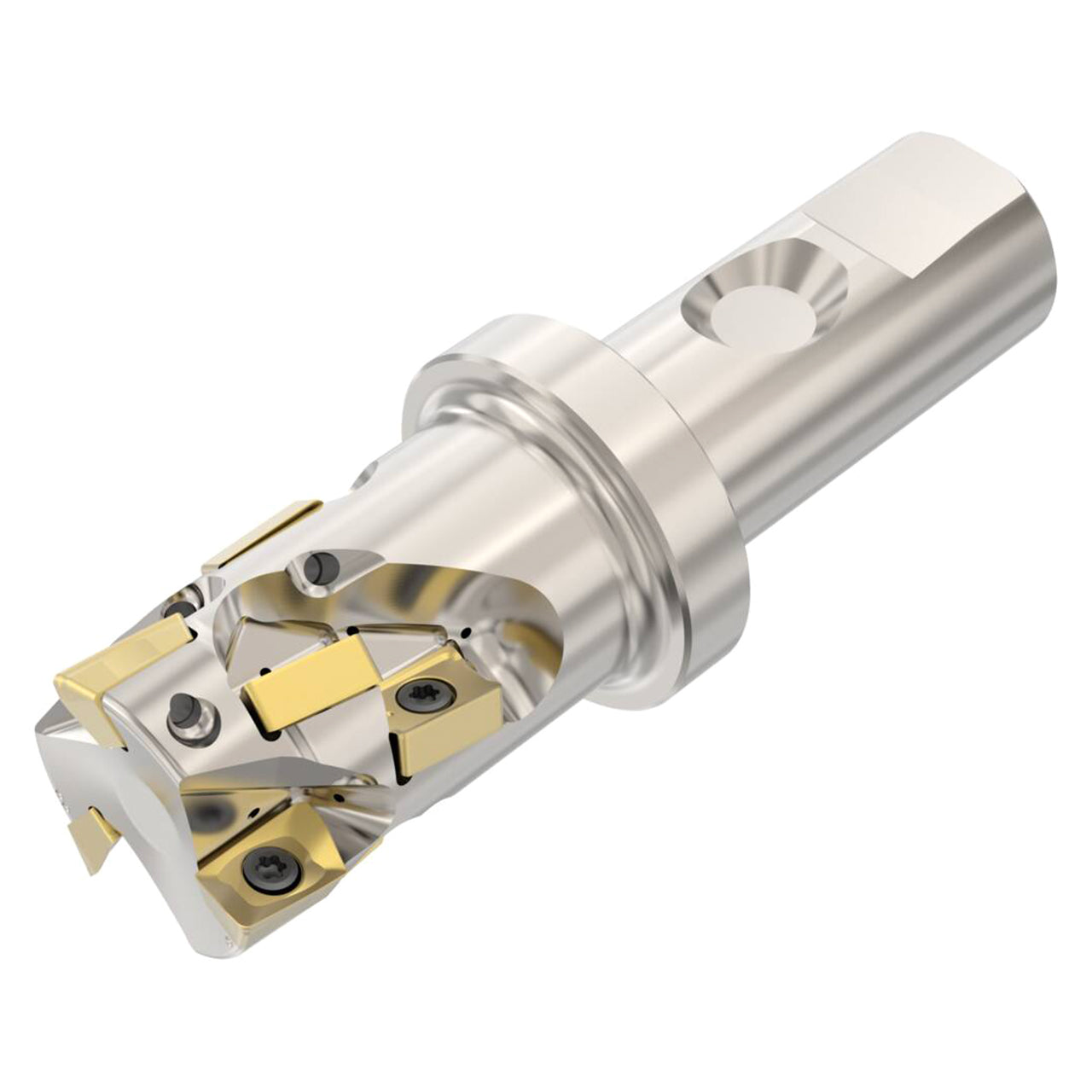

| Product Type | Indexable Square-Shoulder End Mill |
