Seco Tools

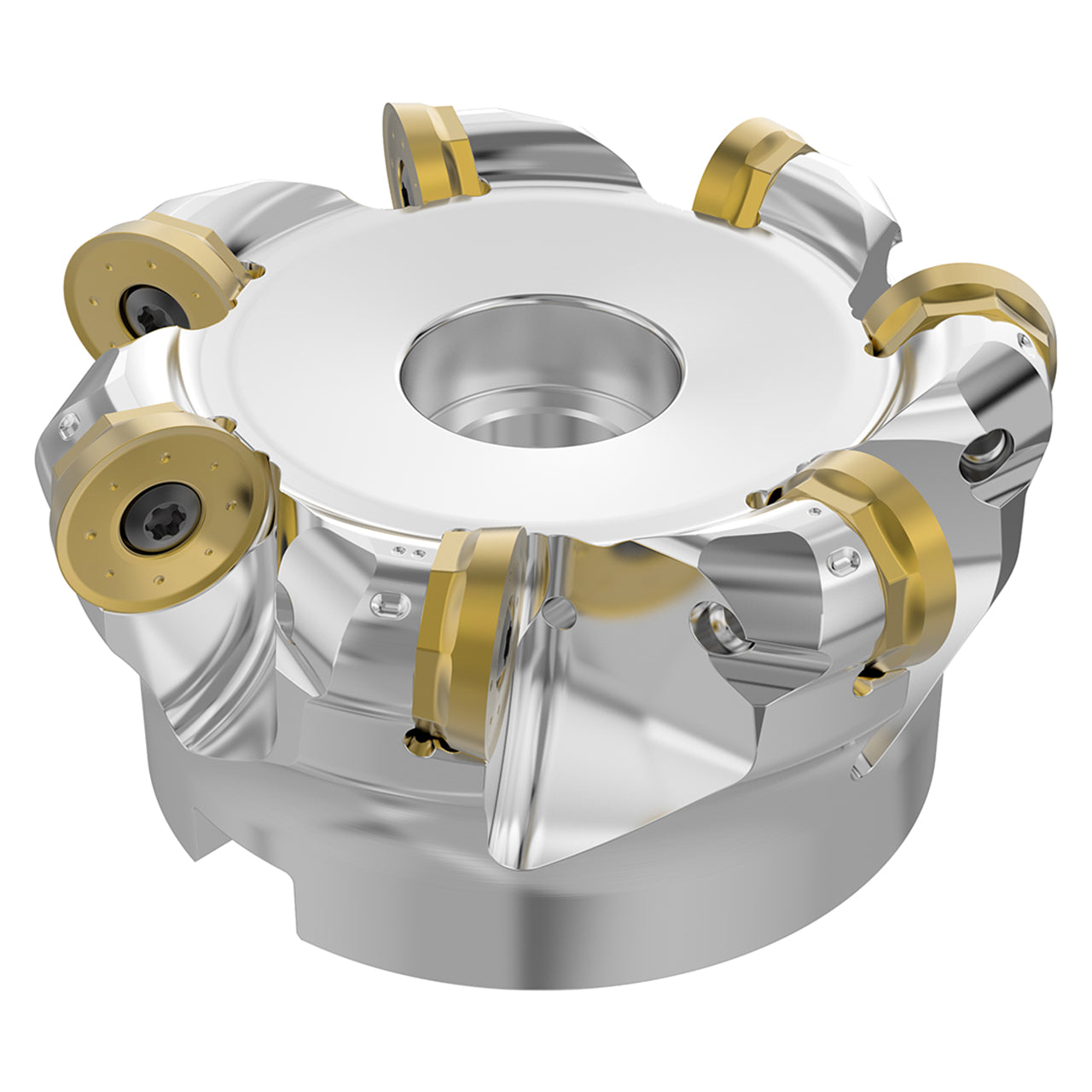

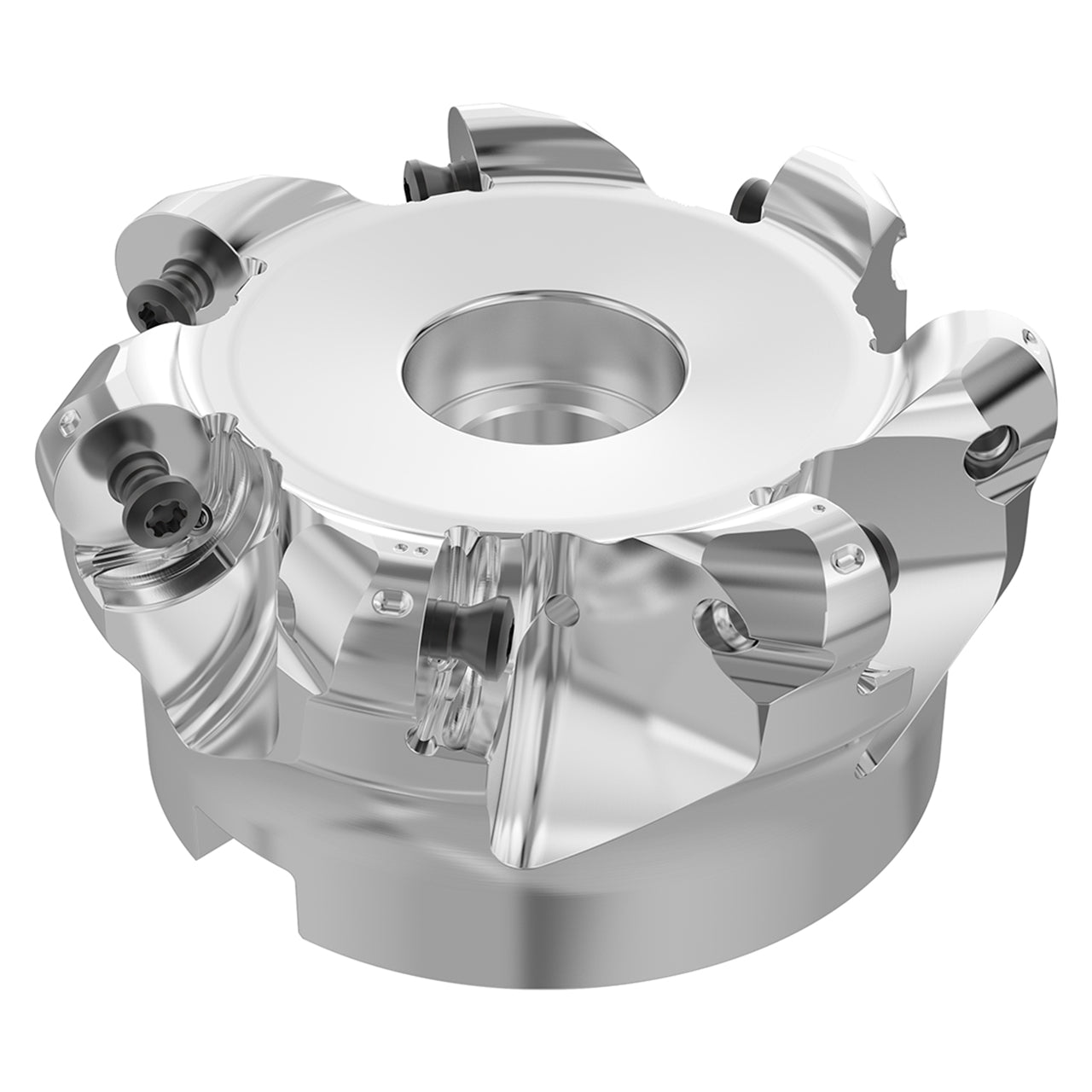

Seco Tools 10254935 | R220.29I-0100-10-7A 80.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 50.00mm Functional Length x 4.00 Degree Rake Axial Angle 7 Cutting Edge 5500 rpm Rotational Speed R220.29I Indexable Copy Face Mill

Seco Tools 10254935 | R220.29I-0100-10-7A 80.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 50.00mm Functional Length x 4.00 Degree Rake Axial Angle 7 Cutting Edge 5500 rpm Rotational Speed R220.29I Indexable Copy Face Mill

SKU: 25363758

$1,400.00 USD
$1,400.00 USD $1,400.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

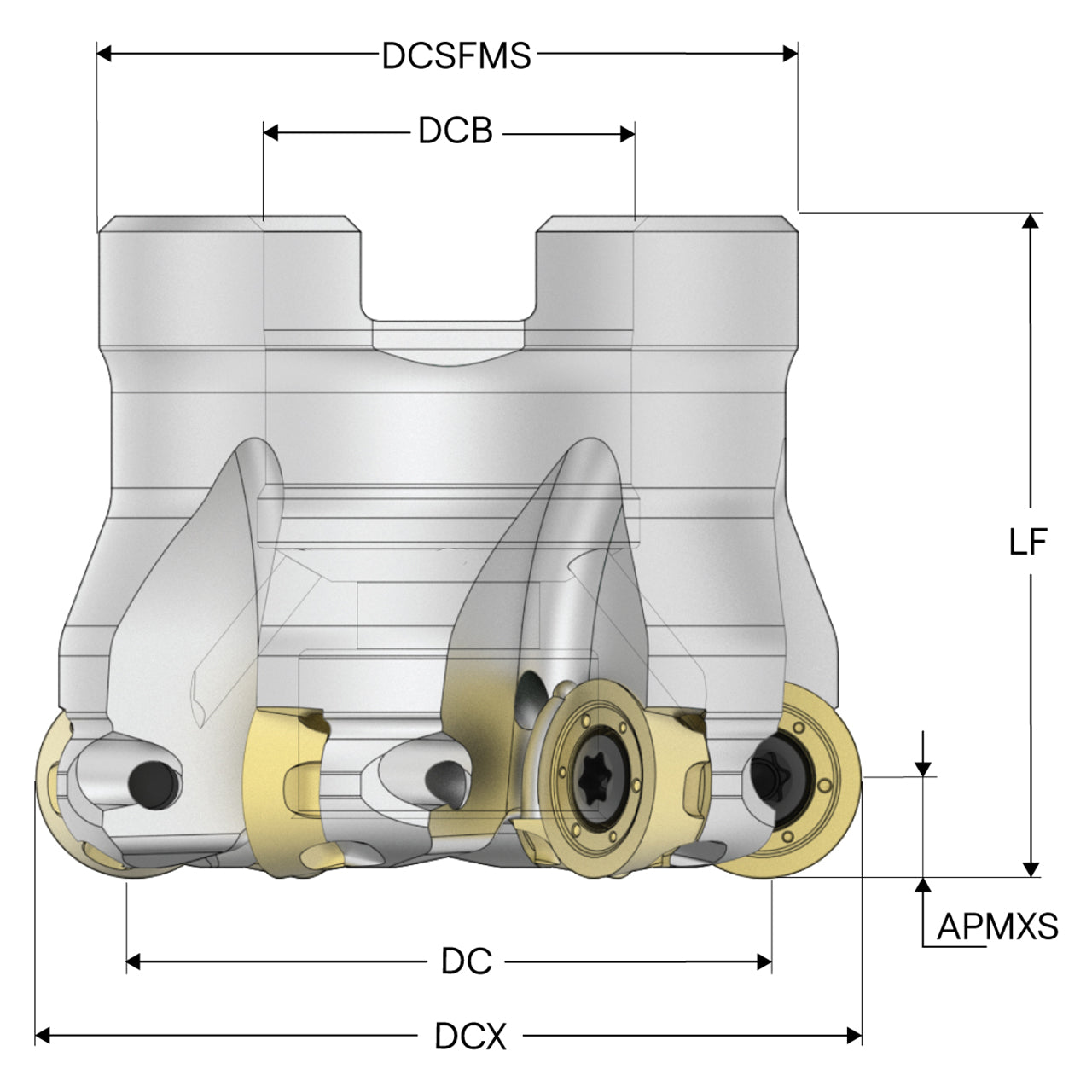

Product Specifications
Manufacturer Part Number 10254935
Depth of Cut Maximum in Feed Direction Side (mm) 10.00mm
Cutting Pitch Density Close
Coolant Supply Property 1
Cutting Diameter (mm) 80.00mm
Connection Diameter Machine Side (mm) 32.00mm
Contact Surface Diameter Machine Side (mm) 79.00mm
Cutting Diameter Maximum (mm) 100.00mm
Functional Length (mm) 50.00mm
Rotational Speed Maximum 5500 rpm
Shank Type Arbor
Peripheral Effective Cutting Edge Count 7
Product Series R220.29I
Product Type Indexable Copy Face Mill
