Seco Tools

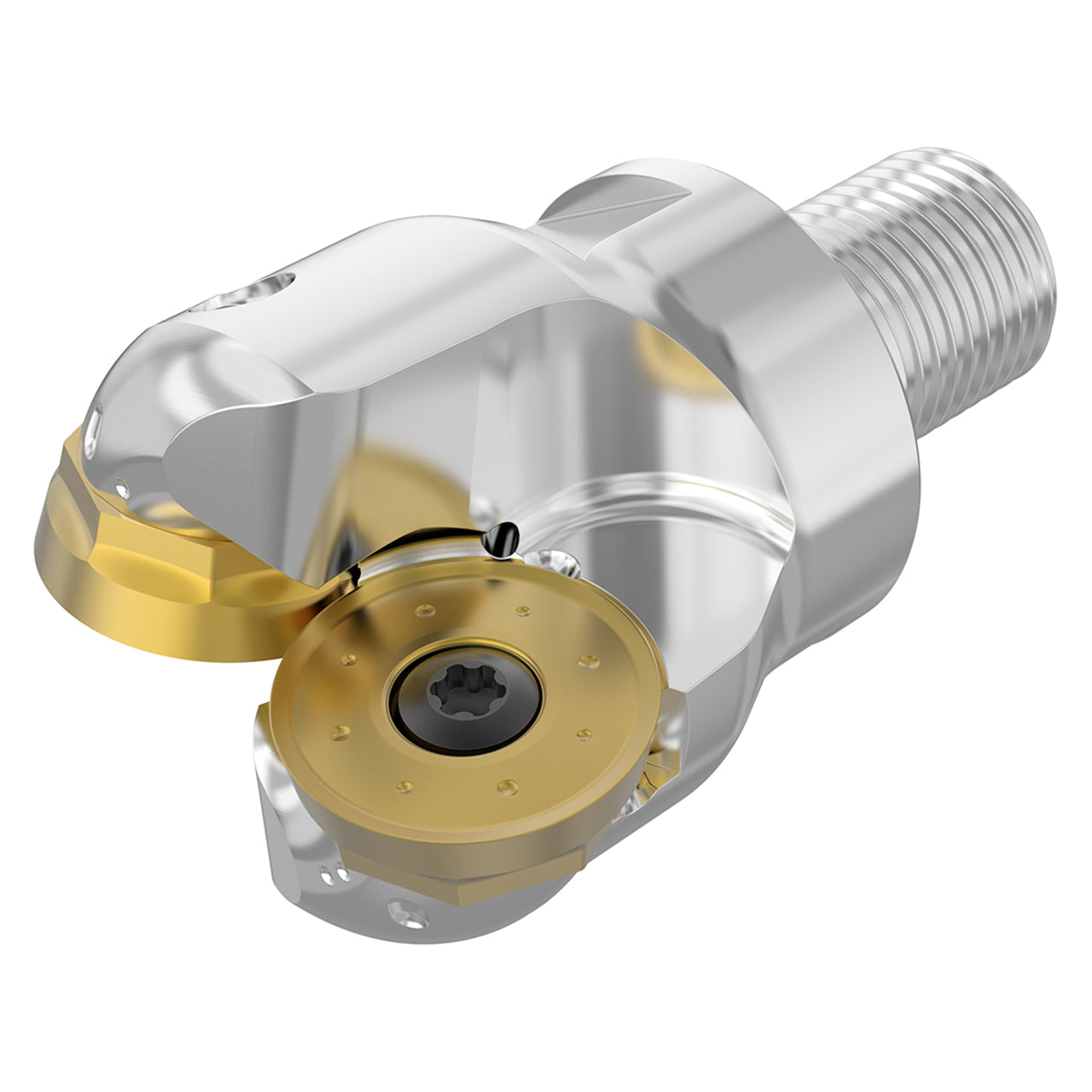

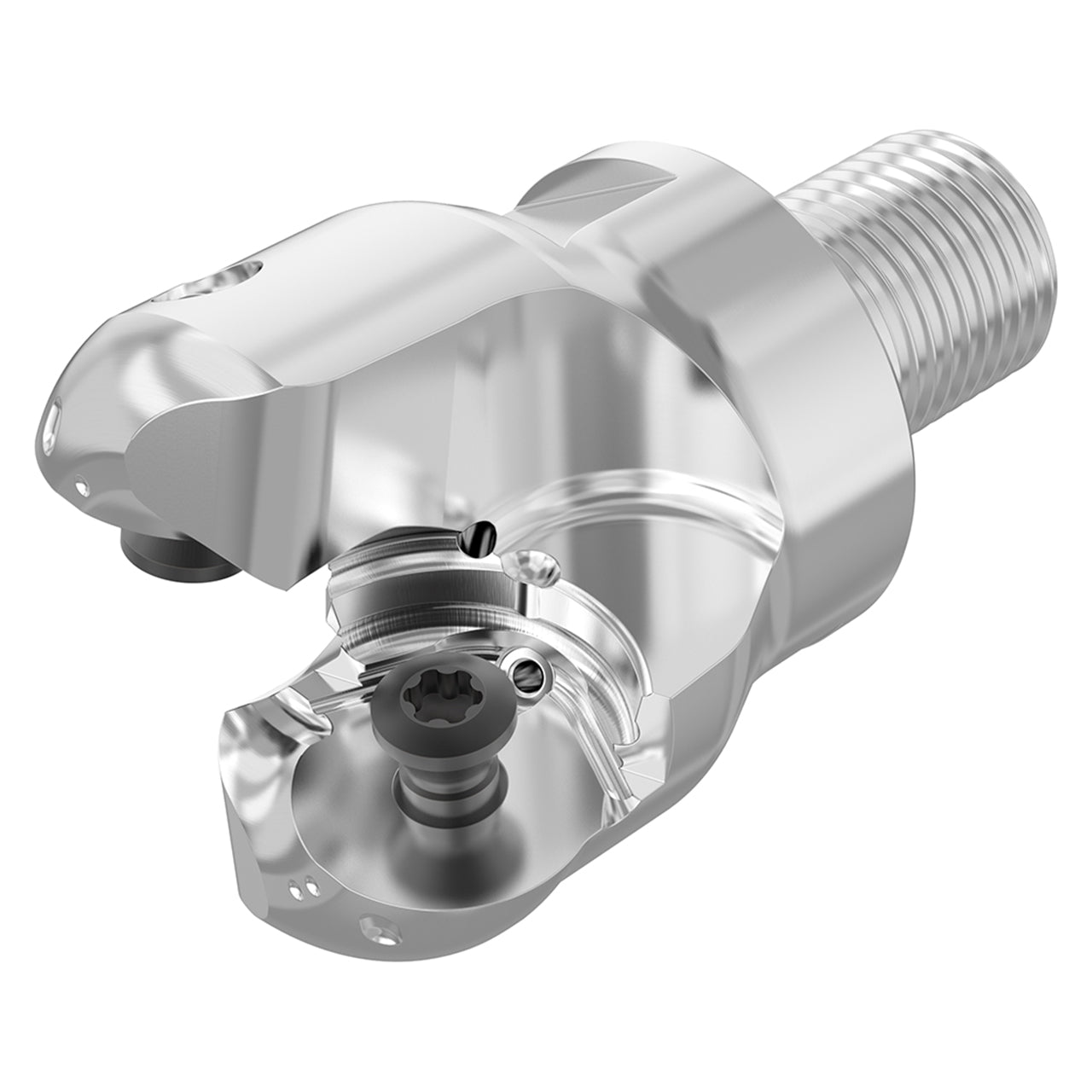

Seco Tools 10254927 | R217.29I-1640.RE-10-2A 20.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 40.00mm Functional Length x -6.00 Degree Rake Axial Angle 2 Cutting Edge 8800 rpm Rotational Speed R217.29I Indexable Copy End Mill

Seco Tools 10254927 | R217.29I-1640.RE-10-2A 20.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 40.00mm Functional Length x -6.00 Degree Rake Axial Angle 2 Cutting Edge 8800 rpm Rotational Speed R217.29I Indexable Copy End Mill

SKU: 25363750

$496.00 USD
$496.00 USD $496.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

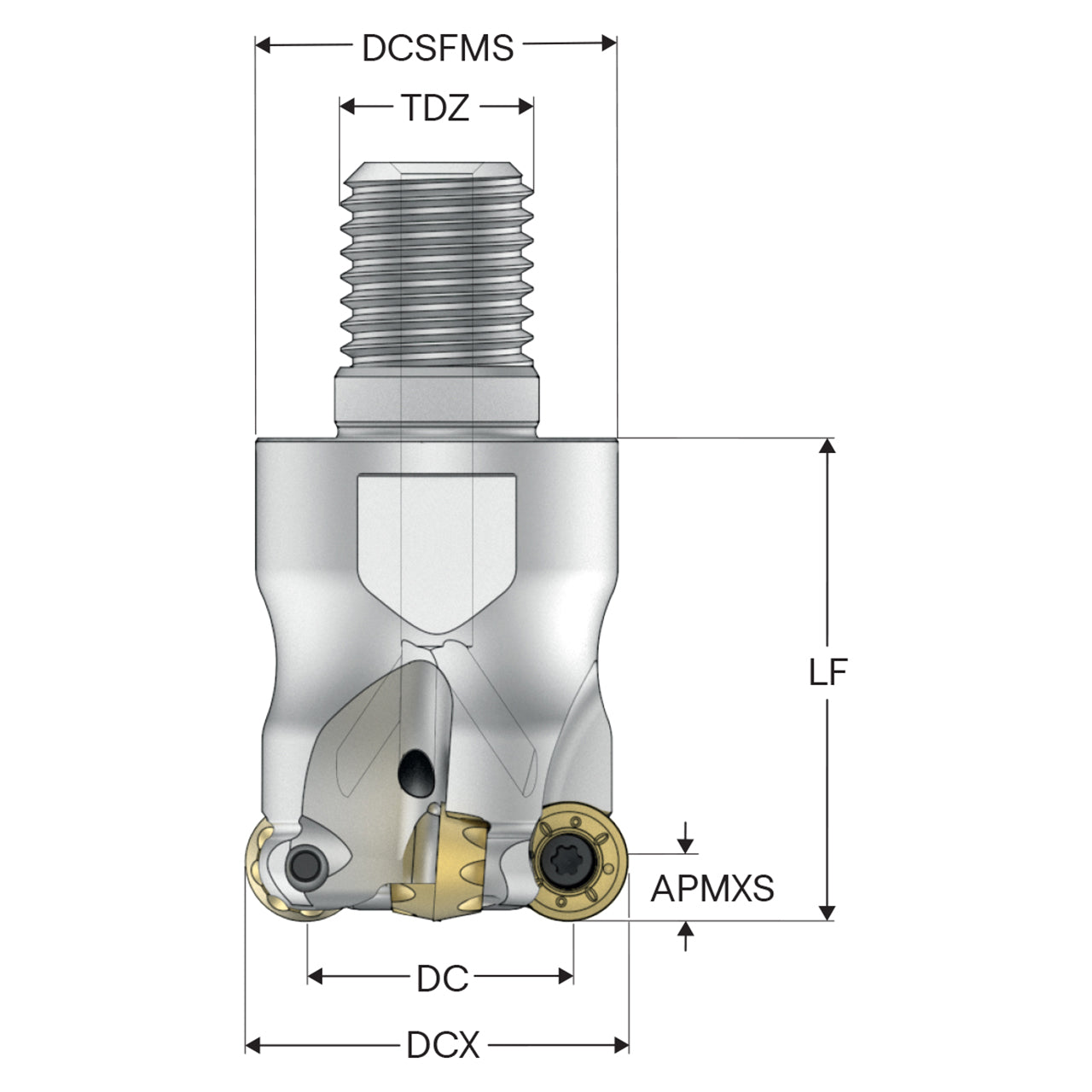

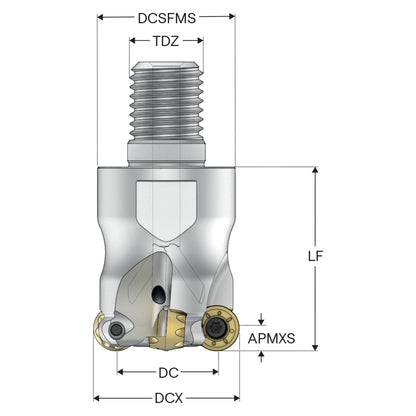

Product Specifications
Manufacturer Part Number 10254927
Depth of Cut Maximum in Feed Direction Side (mm) 10.00mm
Cutting Pitch Density Normal
Coolant Supply Property 1
Cutting Diameter (mm) 20.00mm
Contact Surface Diameter Machine Side (mm) 30.00mm
Cutting Diameter Maximum (mm) 40.00mm
Functional Length (mm) 40.00mm
Overall Length (mm) 62.75mm
Rotational Speed Maximum 8800 rpm
Shank Type Combimaster
Peripheral Effective Cutting Edge Count 2
Product Series R217.29I
Product Type Indexable Copy End Mill
