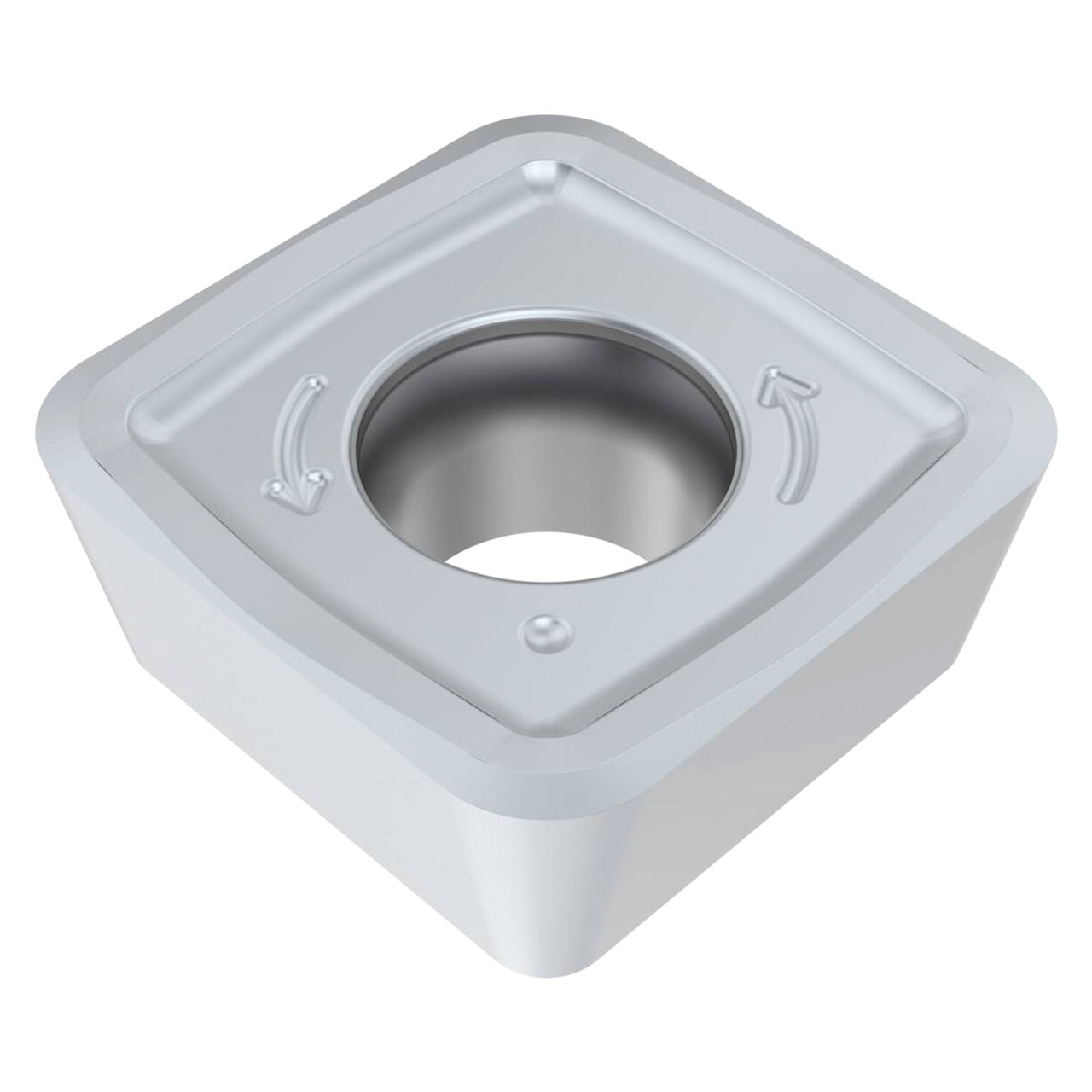

Product Specifications
| Manufacturer Part Number | 10252950 |
| Clearance Angle Major (Degree) | 11.00 Degree |
| Cutting edge count | 4 |
| Cutting Geometry Type Technical | M14 |
| Insert size and shape | SPKT140523 |
| Insert Rake Angle (Degree) | 13.00 Degree |
| Insert Rake Angle (Degree) | 13.0 |
| Grade Type | Carbide CVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.551" |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.091" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert seat size code | 14 |
| Product Series | SPKT |
| Product Type | Milling Insert |
