Product Specifications
| Manufacturer Part Number | 10228972 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Cutting Direction | Right Hand |

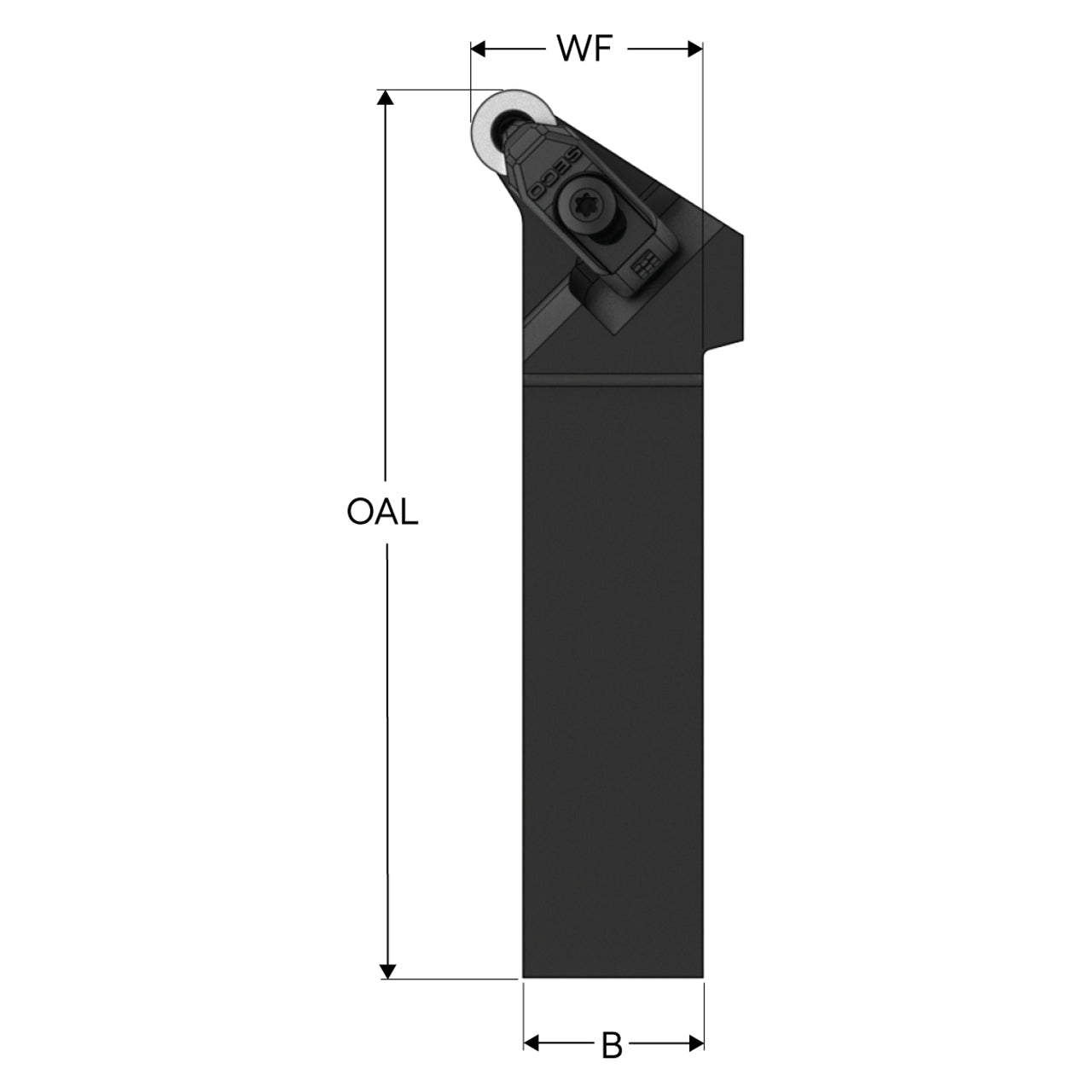

| Functional Height (mm) | 31.95mm |
| Functional Length (mm) | 35.00mm |
| Head Length (mm) | 37.00mm |
| Shank Length (mm) | 97.00mm |
| Overall Length (mm) | 134.00mm |
| Shank Type | Square shank |
| Insert seat size code | 1204 |
| Version (Internal/External/Both) | External |
| Functional Width (mm) | 40.00mm |
| Product Series | DRSCR |

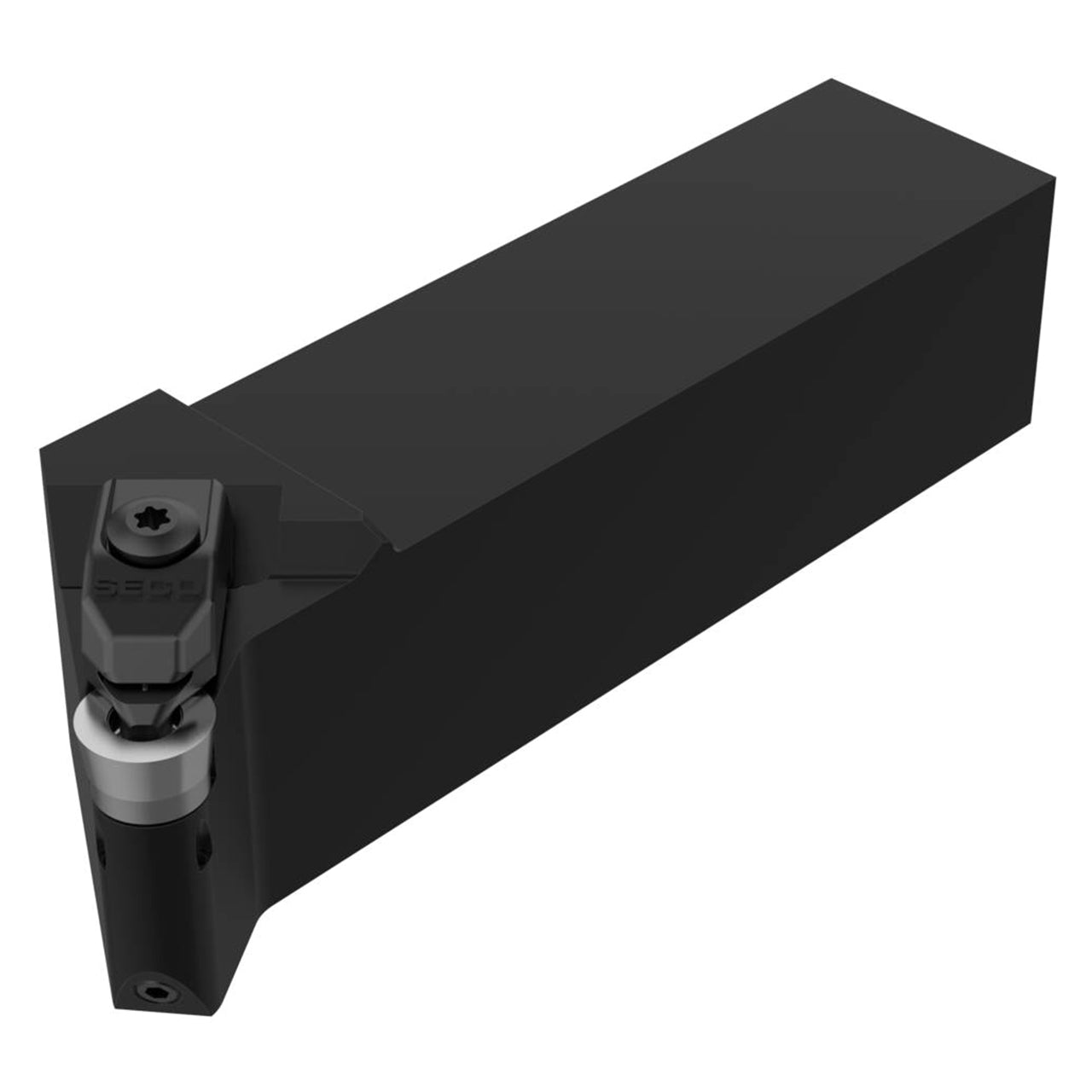

| Product Type | Indexable Turning Toolholder |
