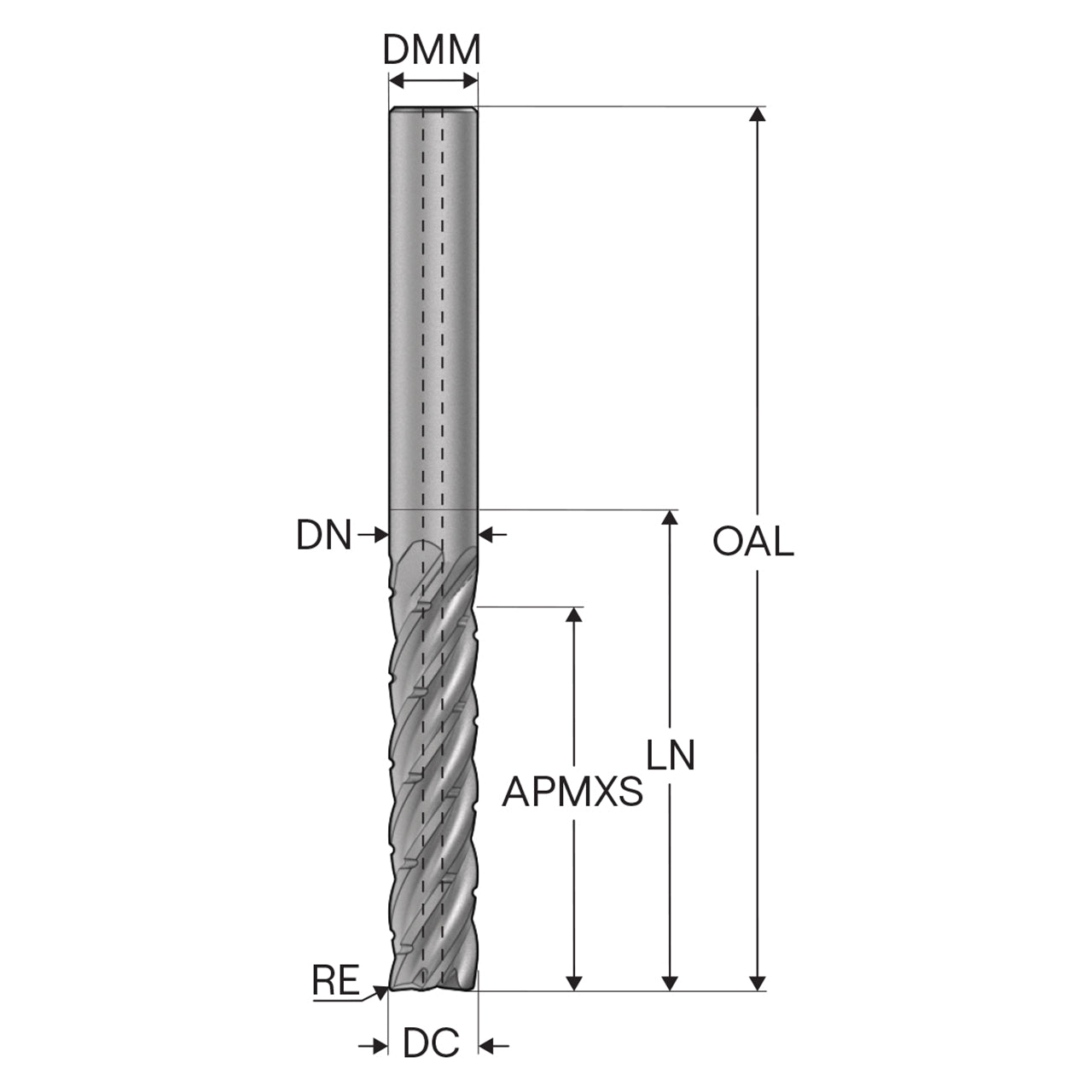

Product Specifications
| Manufacturer Part Number | 10228198 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 85.00mm |
| Cutting Geometry Type | S4651 |
| Coating | AXT |
| Coolant Supply Property | 1 |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Neck Diameter (mm) | 19.00mm |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 40 Degree |
| Neck Length (mm) | 105.00mm |
| Overall Length (mm) | 160.00mm |
| Cutting Edge Count | 5 |
| Corner Radius (mm) | 2.00mm |
| Shank Type | Cylindrical |
| Product Series | S4651 |

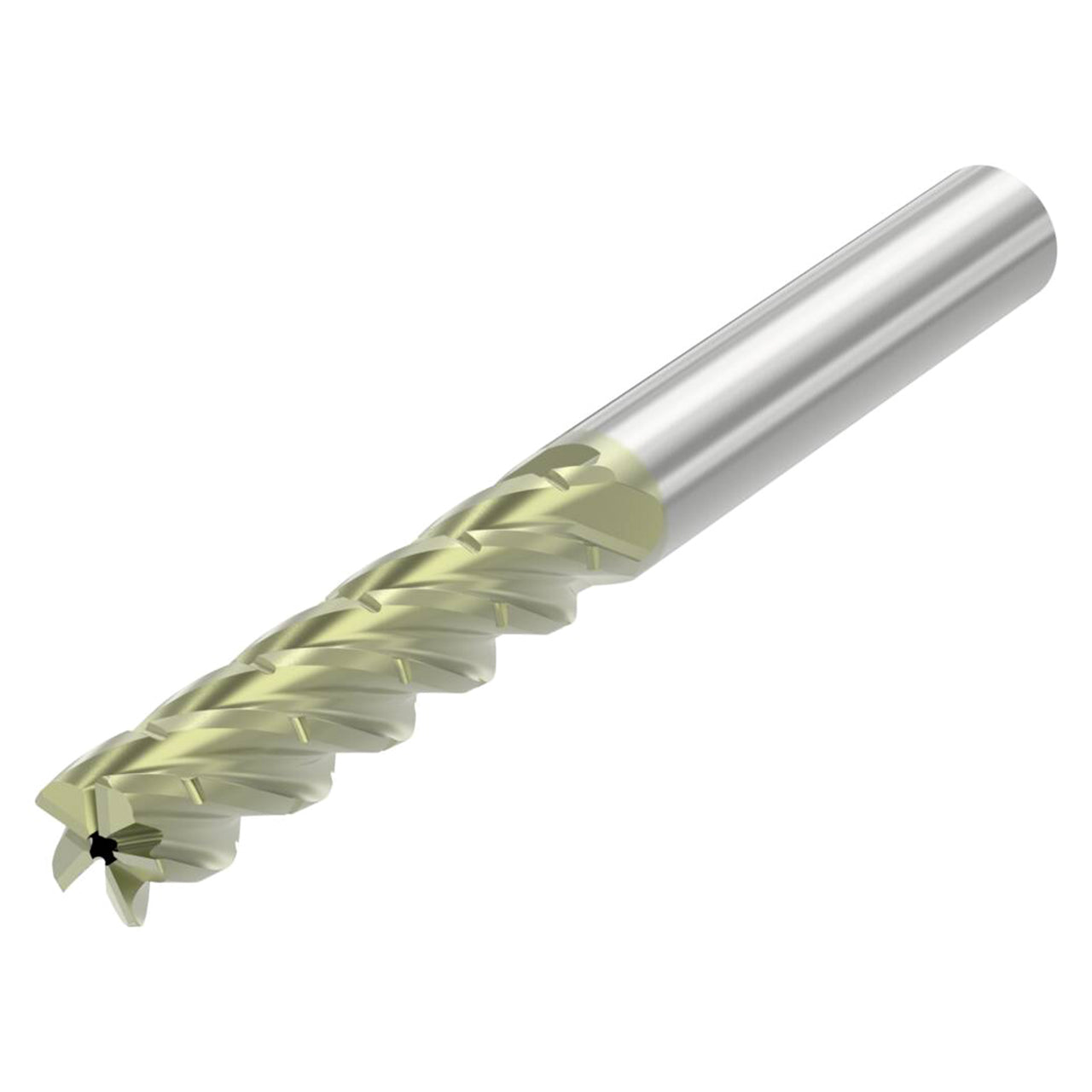

| Product Type | Corner Radius End Mill |
