Product Specifications
| Manufacturer Part Number | 10228153 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 6.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | S4321 |
| Coating | AXT |
| Cutting Diameter (mm) | 3.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 2.85mm |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (mm) | 10.00mm |
| Overall Length (mm) | 57.00mm |
| Cutting Edge Count | 2 |
| Corner Radius (mm) | 1.50mm |
| Shank Type | Cylindrical |
| Product Series | S4321 |

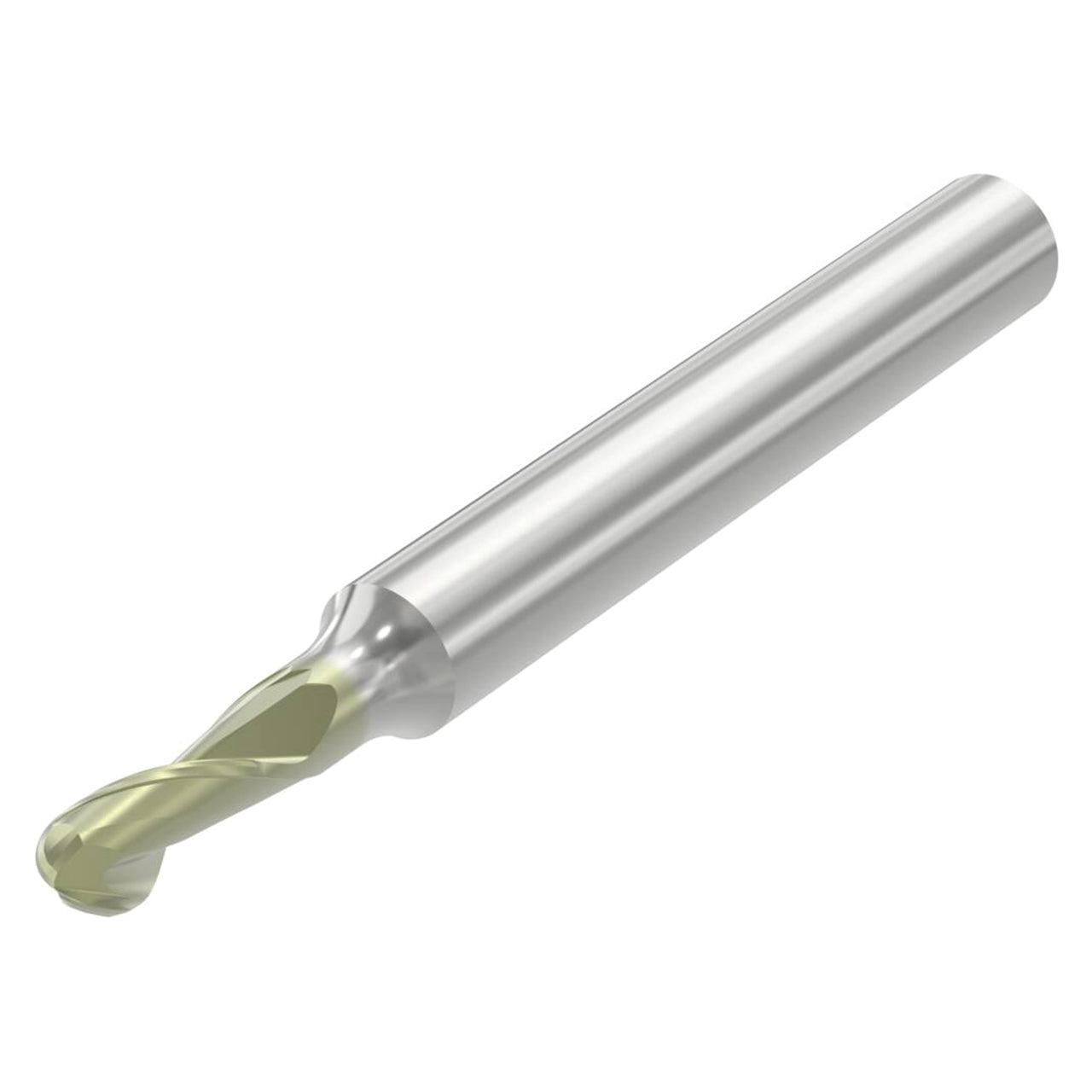

| Product Type | Ball End Mill |
