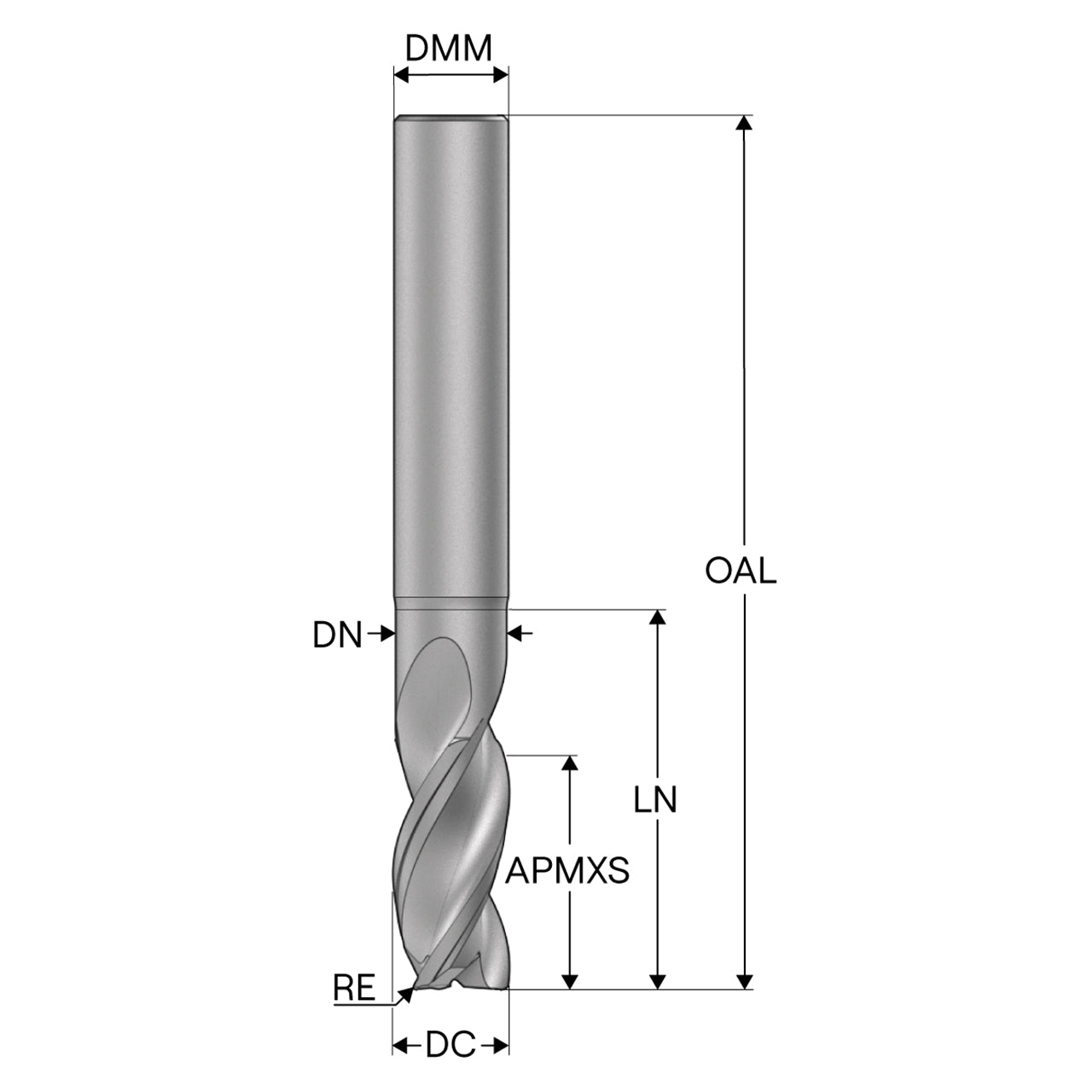

Product Specifications
| Manufacturer Part Number | 10228111 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 32.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | S4531 |
| Coating | AXT |
| Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Neck Diameter (mm) | 15.20mm |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 35 Degree |
| Neck Length (mm) | 77.00mm |
| Overall Length (mm) | 129.00mm |
| Cutting Edge Count | 3 |
| Corner Radius (mm) | 2.00mm |
| Shank Type | Cylindrical |
| Product Series | S4531 |

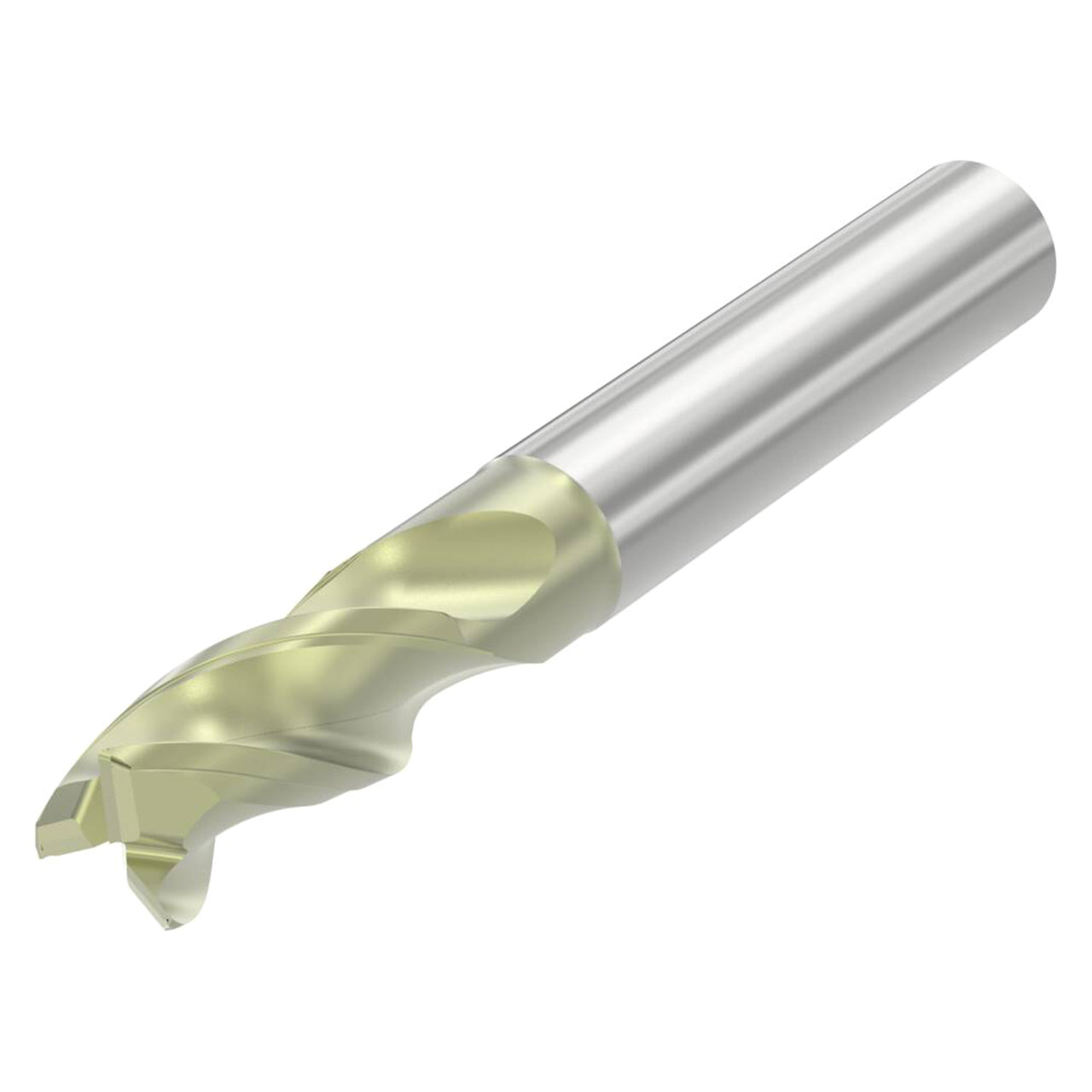

| Product Type | Corner Radius End Mill |
