Product Specifications
| Manufacturer Part Number | 10219231 |

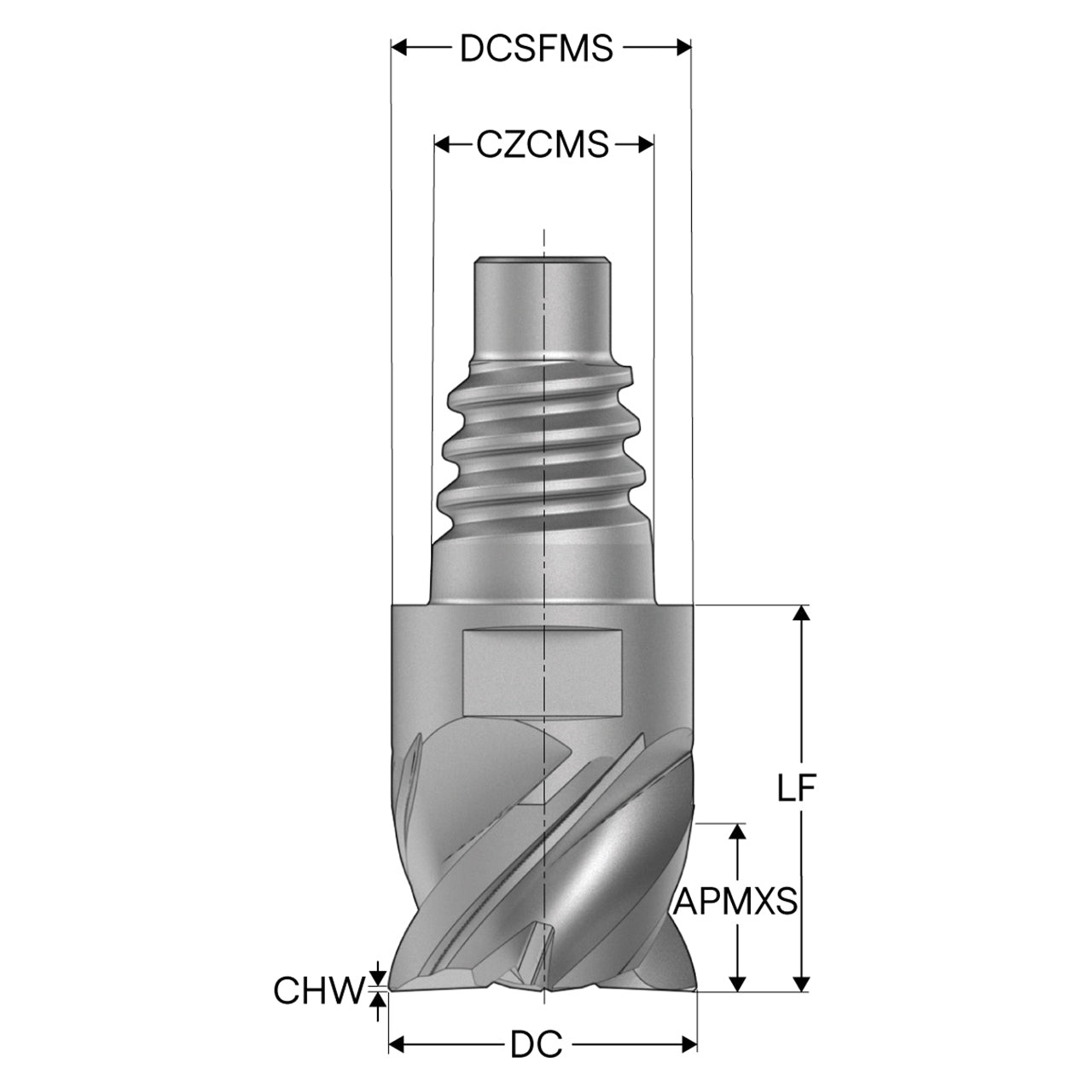

| Depth of Cut Maximum in Feed Direction Side (mm) | 8.80mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | XSE550 |
| Corner chamfer width (mm) | 0.20mm |
| Coating | SIRON-A |
| Cutting Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 15.50mm |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 48 Degree |
| Corner Chamfer Angle (Degree) | 45.00 Degree |
| Functional Length (mm) | 18.60mm |
| Overall Length (mm) | 35.60mm |
| Cutting Edge Count | 4 |
| Product Series | XSE |

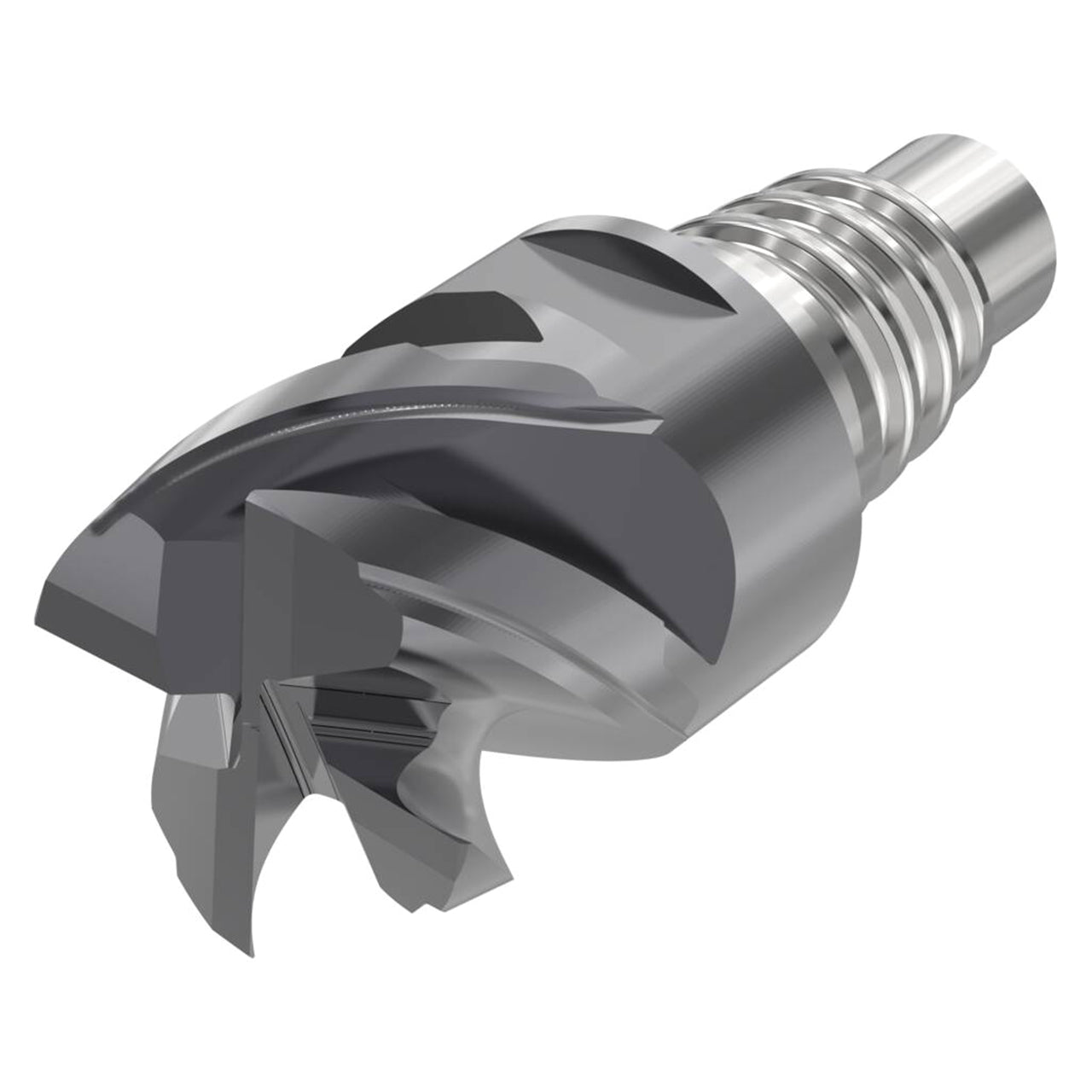

| Product Type | Corner Chamfer End Mill Head |
