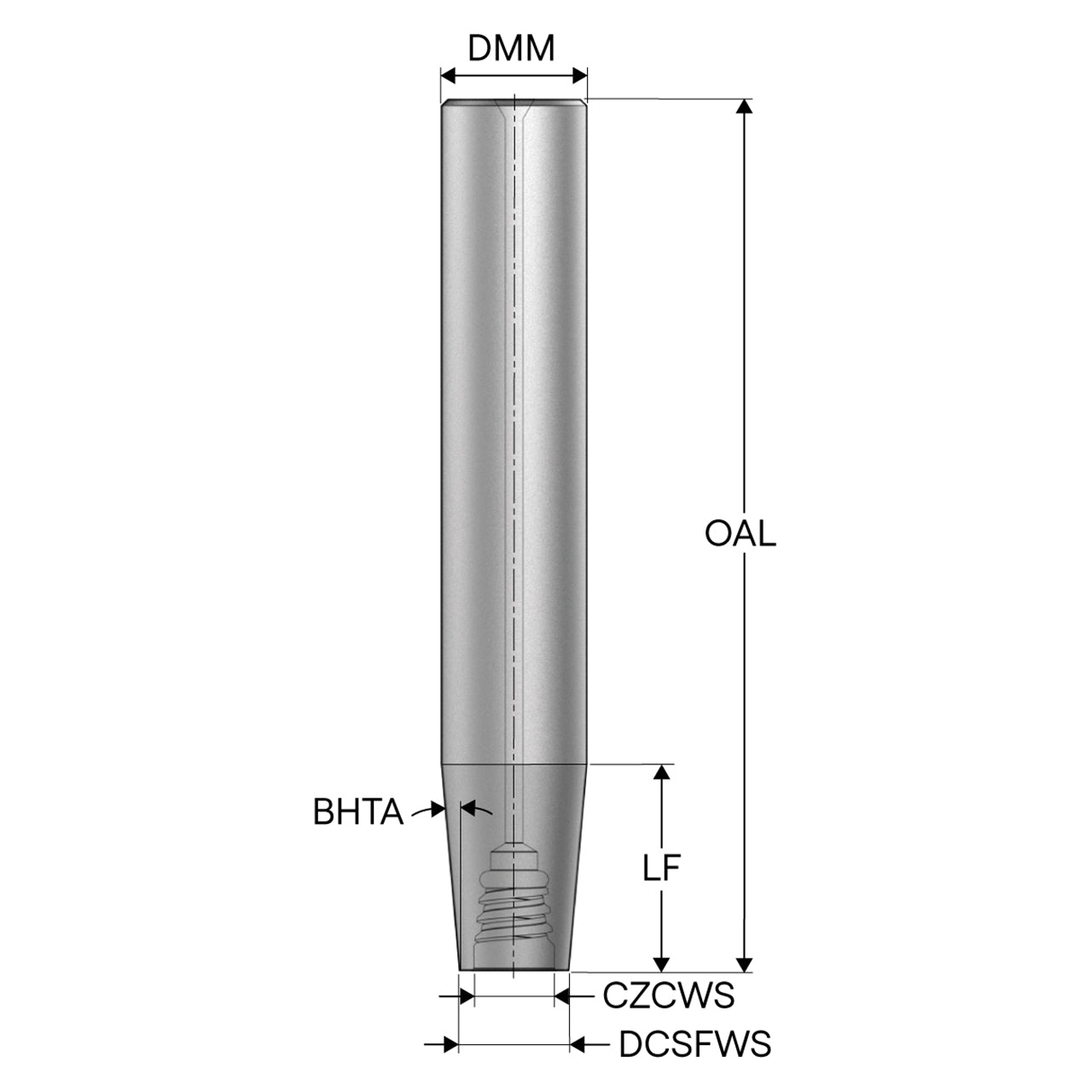

Product Specifications
| Manufacturer Part Number | 10218131 |
| Body Half Taper Angle (Degree) | 5.00 Degree |
| Coolant Supply Property | 1 |
| Shank Diameter (Decimal Inch) | 1.250" |
| Functional Length (Decimal Inch) | 1.654" |
| Overall Length (Decimal Inch) | 8.500" |
| Rotational Speed Maximum | 18000 rpm |
| Shank Type | Cylindrical |
| Product Series | XE25 |

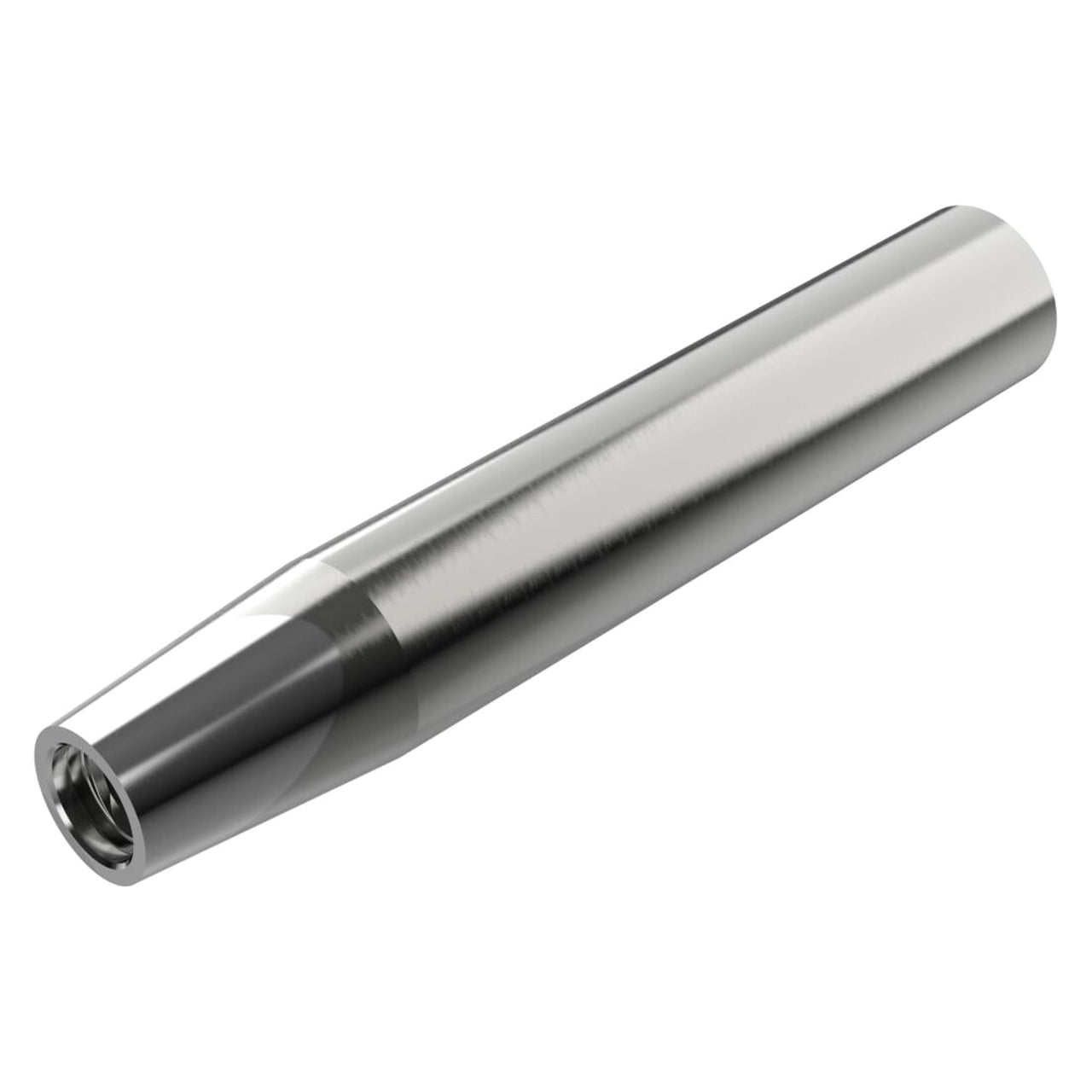

| Product Type | Milling Tip Holder & Shank |
